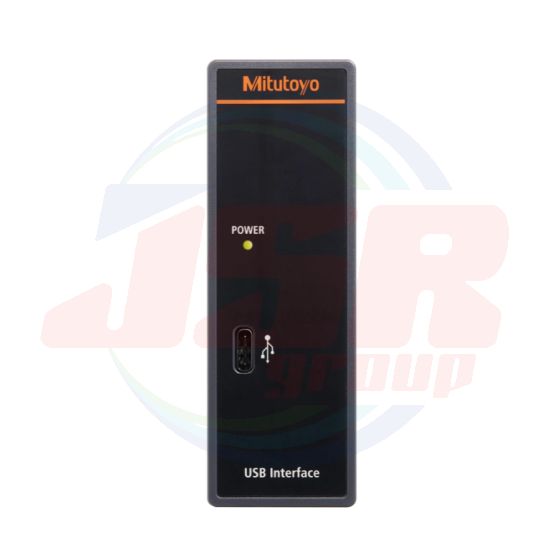

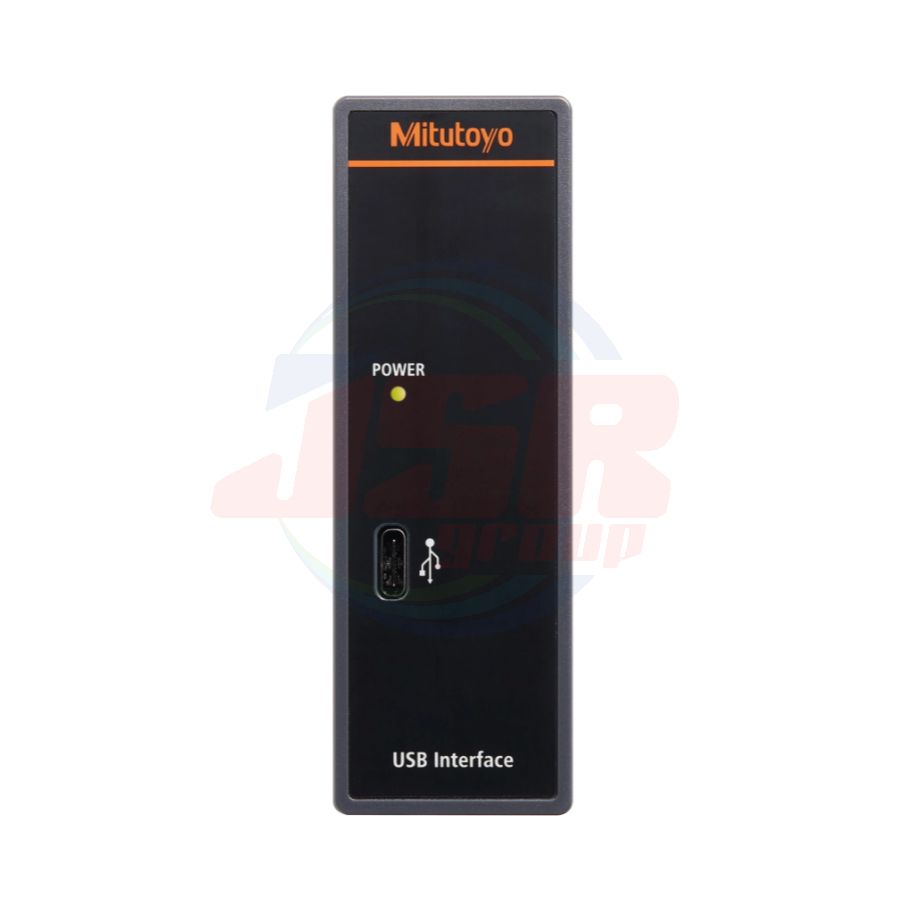

21HZA149 | Interface unit USB - Linear Gage Counter (Display Unit) | MITUTOYO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
21HZA149
QTY:
10
EJ-102N Counter, Interface Unit:
CC-Link, PROFINET, EtherNet/IP, EtherCAT, USB
• A small, high-speed, space-saving counter for linear gage suitable for in-line and in-laboratory use. It brings visibility into the production site, improves productivity, and enables data accumulation.
• Up to 8 compact counters (EJ counters) can be linked providing the capacity to connect up to 16 gages.
• On a DIN rail, each unit can be connected directly without using cables, so it takes up minimal space. All linked units and gages can be driven by a single power source.
• Data can be output through an industrial interface (CC-Link) by linking a compact counter (EJ counter) with an interface unit. Constant data monitoring and positional management are performed. A USB interface is also provided for easy connection with a computer.
• Enables sum difference operations between 2 gages connected to the same counter.
Specifications
| Order No. | 21HZA186 | |
| Model | Interface unit CC-Link | |
| Applicable interface | USB 2.0 Full Speed | |
| CC-Link Ver. 1.10 | ||
| CC-Link Ver. 2.00 | ||
| User Interface | Display | POWER (green), RUN (green), ERROR (red), EJ-CONNECT (green) |
| Switch | Rotary switch×3 (Exchange number settings×2, communication speed settings×1) |
|
| Functions | Common protocols for USB and CC-Link, Readout of current value*2, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear *2 Only Ver. 2.00 is supported with CC-Link. |
|
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| Order No. | 21HZA187 | |
| Model | Interface unit PROFINET | |
| Applicable interface | PROFINET RT (RT Class1)/USB 2.0 Full Speed | |
| User Interface | POWER (green), NETWORK (green/red), MODULE (green/red), LINK P0RT1 (green), LINK P0RT2 (green), EJ-CONNECT (green) |
|
| Functions | Common protocols for USB and PROFINET, Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear | |
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| Order No. | 21HZA187 | |
| Model | Interface unit PROFINET | |
| Applicable interface | PROFINET RT (RT Class1)/USB 2.0 Full Speed | |
| User Interface | POWER (green), NETWORK (green/red), MODULE (green/red), LINK P0RT1 (green), LINK P0RT2 (green), EJ-CONNECT (green) |
|
| Functions | Common protocols for USB and PROFINET, Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear | |
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| Order No. | 21HZA188 | |
| Model | Interface unit EtherNet/IP | |
| Applicable interface | EtherNet/IP | |
| User Interface | POWER (green), NETWORK (green/red), MODULE (green/red), LINK P0RT1 (green/amber), LINK P0RT2 (green/amber), EJ-CONNECT (green) |
|
| Functions | Common protocols for USB and EtherNet/IP Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset valuesettings, preset/zero-set clear, peak clear, error clear |
|
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| Order No. | 21HZA264 | |
| Model | Interface unit EtherCAT | |
| Applicable interface | EtherCAT | |
| User Interface | POWER (green), RUN (green), ERROR (red), L/A IN (green), L/A OUT (red), EJ-CONNECT (green) |
|
| Functions | Common protocols for USB and EtherCAT Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset valuesettings, preset/zero-set clear, peak clear, error clear |
|
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| Order No. | 21HZA149 | |
| Model | Interface unit USB | |
| Applicable interface | USB 2.0 Full Speed | |
| User Interface | POWER (green) | |
| Functions | Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear | |
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
|
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) | |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) | |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 21HZA149 |
| Applicable interface | USB 2.0 Full Speed |
| User Interface | POWER (green) |
| Functions | Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear |
| Power supply | Power is supplied from EJ-102N (542-080/542-081) (Cannot be charged via USB) |
| Operating temperature (humidity) | 0 to 50 °C (RH 20 to 80%, non-condensing) |
| Storage temperature (humidity) | -10 to 60 °C (RH 20 to 80%, non-condensing) |
