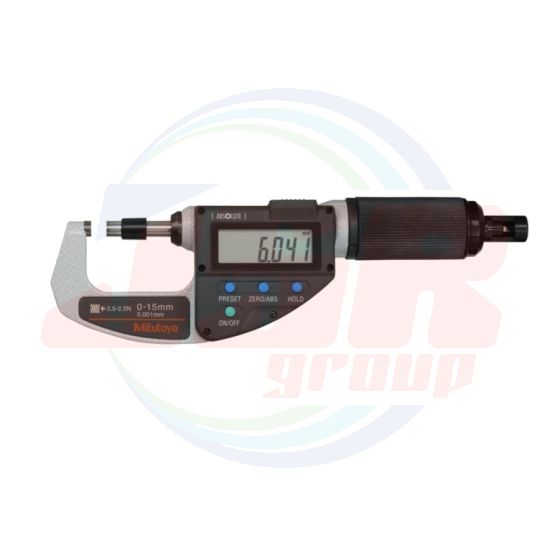

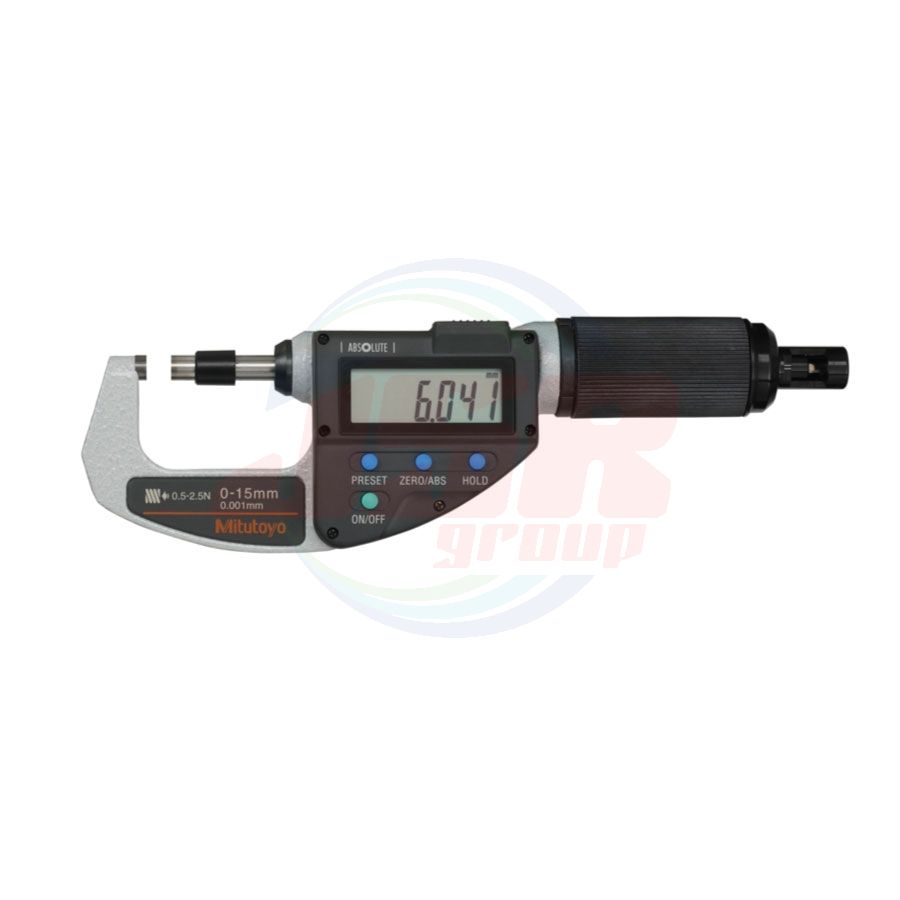

227-201-20 | ABSOLUTE Digimatic Micrometers SERIES 227 — with Adjustable Measuring Force | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 16,404.67
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
227-201-20
QTY:
4

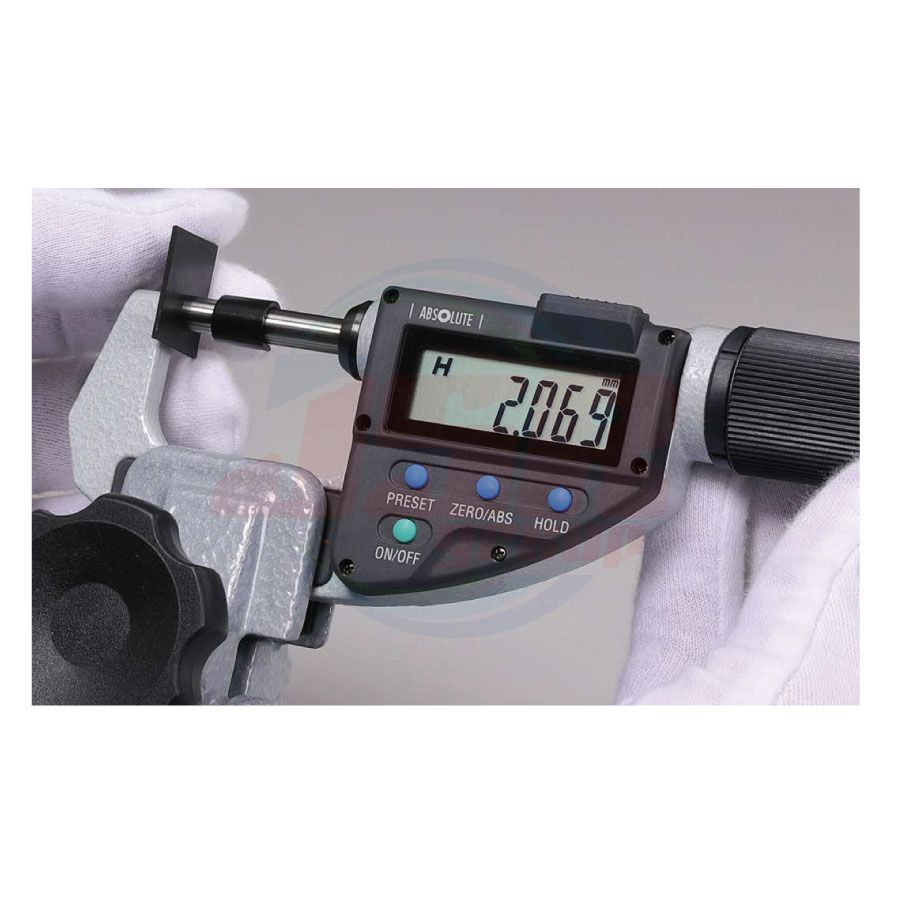

• Digimatic micrometer equipped with a constant / low measuring force mechanism. The measurement-value hold function automatically retains the data at a specified measuring force. (Pressing with a larger force than the specified measuring force does not affect the measurement result.)
• It is suitable for measuring flexible workpieces such as electric wire, paper, and rubber.
• Non-rotating spindle reduces workpiece deformation.
• Measuring faces: Carbide tipped
With SPC data output
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Order No. | 227-201-20 (CLM1-15QMX) |
| Range | 0 - 15 mm |

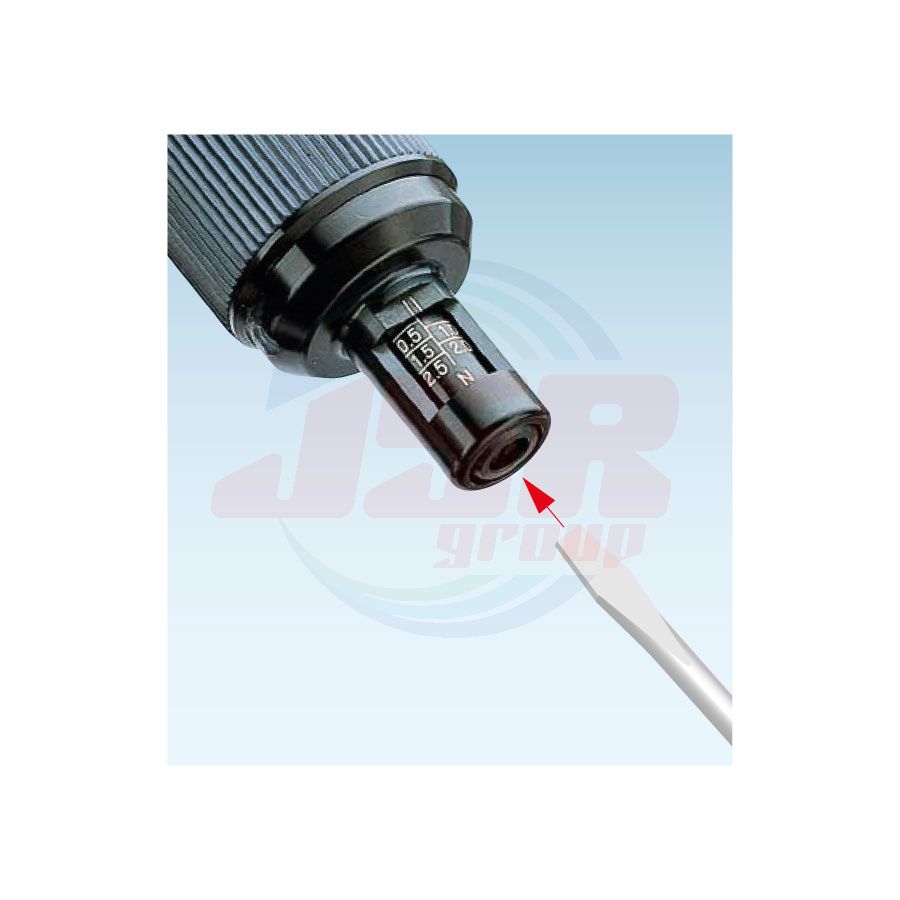

| Measuring force (N) - (adjustable) | 0.5 - 2.5 |
| Resolution | 0.001 mm |
| Flatness | 0.3 µm |
| Parallelism | 2 µm |
| Measuring force (N) | 0.5, 1.0, 1.5, 2.0, 2.5 |
| Accuracy of the selected measuring force (N) | ± (0.1+ the selected measuring force/10) |
| Repeatability of measuring force (N) | within 0.1 |
| Mass | 300 g |
| Range (mm) | L | a | b | c | d | e |
| 0 - 15 | 0 | 6.2 | 25 | 2 | 15 | 17 |
| 15 - 30 | 15 | 8.5 | 36 | 12.8 | 15 | 17 |
| 0 - 10 | 0 | 6.2 | 25 | 2 | 10 | 22 |
| 10 - 20 | 10 | 8.5 | 36 | 17.8 | 10 | 22 |
| 20 - 30 | 20 | 8.5 | 36 | 7.8 | 10 | 22 |
