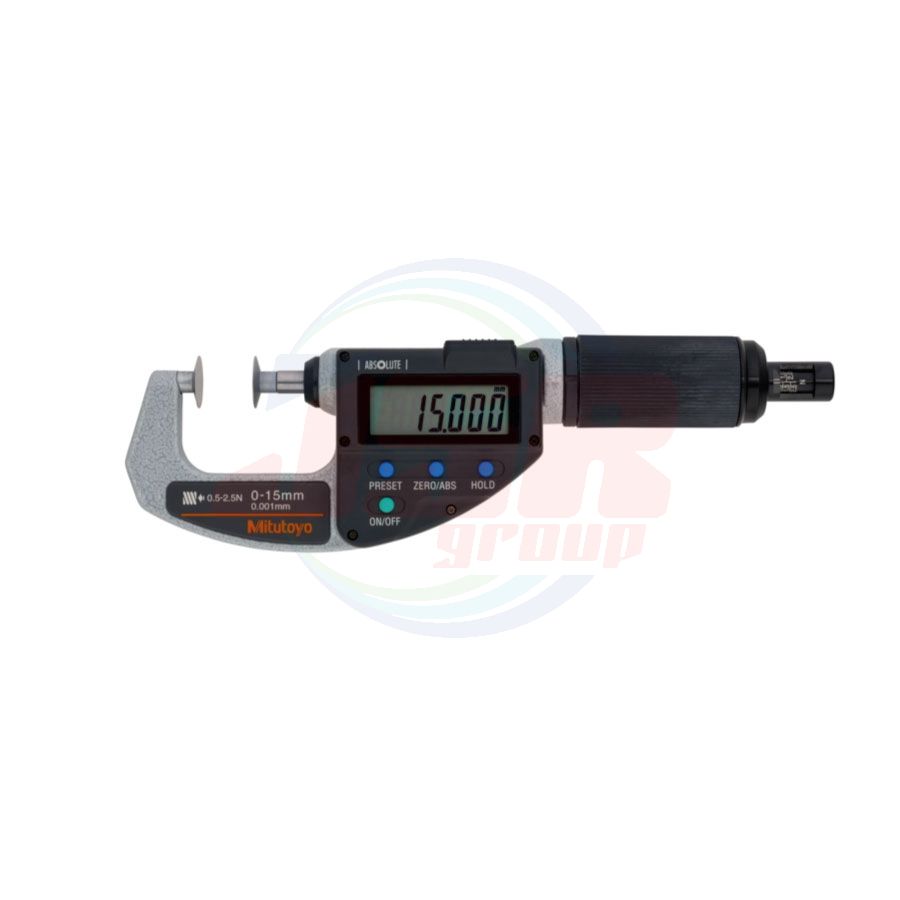

227-221-20 | Disc Micrometers SERIES 227 — Non-rotating Spindle Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 17,265.42
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
227-221-20
QTY:
1
• Can be used for making root tangent measurements on spur gears and helical gears.
• Non-rotating spindle eliminates torque on workpiece.
• Measurable range of gear pitch: 0.5 to 6 module (series 227: 0.4 to 3 module).
• Equipped with Ratchet Stop for constant measuring force.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Remarks | Quickmike type adjustable measuring force |
| Order No. | 227-221-20 (CLM1-15DKX) |
| Range | 0 - 15 mm |
| Resolution | 0.001 mm |
| Anvil dia. | ø14.3 mm |
| Flatness | 1 µm |
| Parallelism | 3 µm |
| Measuring force (N) | 0.5 - 2.5 |
| Range (mm) | L | a | b | c |
| Quickmike type | ||||
| 0 - 30 | 0 | 8.5 | 36 | 13.5 |
| 25 - 55 | 25 | 10.3 | 47 | 13.5 |
| Quickmike adjustable measuring force type | ||||
| 0 - 15 | 0 | 6.2 | 25 | 5.2 |
| 0 - 10 | 0 | 6.2 | 25 | 5.2 |
