SERIES 227 | ABSOLUTE Digimatic Micrometers - with Adjustable Measuring Force | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 28,611.80
พร้อมส่ง
SKU
1MIT-CLM1-QMX-227
• Digimatic micrometer equipped with a constant / low measuring force mechanism. The measurement-value hold function automatically retains the data at a specified measuring force. (Pressing with a larger force than the specified measuring force does not affect the measurement result.)
• It is suitable for measuring flexible workpieces such as electric wire, paper, and rubber.
• Non-rotating spindle reduces workpiece deformation.
• Measuring faces: Carbide tipped
SPECIFICATIONS
Metric
| Order No. |
Range (mm) |
Resolution (mm) |
Measuring force (N) |
Maximum permissible error J MPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Measuring force (N) |
Accuracy
of the selected measuring force* (N) |
Repeatability of measuring force* (N) |
Mass (g) |
| With SPC data output | ||||||||||
| 227-201-20 | 0 - 15 | 0.001 | 0.5 -
2.5 (adjustable) |
±2 | 0.3 | 2 | 0.5, 1.0, 1.5, 2.0, 2.5 |
± (0.1+
the selected measuring force/10) |
within 0.1 | 300 |
| 227-203-20 | 15 - 30 | 380 | ||||||||
| 227-205-20 | 0 - 10 | 2 - 10 (adjustable) |
2, 4, 6, 8, 10 |
± (0.4+
the selected measuring force/10) |
within 0.4 | 345 | ||||
|
227-206-20 |
10 - 20 | 425 | ||||||||
| 227-207-20 | 20 - 30 | 415 | ||||||||
Inch / Metric
| Order No. |
Range (in) |
Resolutio |
Measuring force (N) |
Maximum permissible error J MPE (in) |
Flatness (in) |
Parallelism (in) |
Measuring force (N) |
Accuracy
of the selected measuring force* (N) |
Repeatability of measuring force* (N) |
Mass (g) |
| With SPC data output | ||||||||||
| 227-211-20 | 0 - 0.6 | 0.00005 in/ 0.001 mm |
0.5 -
2.5 (adjustable) |
±0.0001 | 0.000012 | 0.00008 | 0.5, 1.0, 1.5, 2.0, 2.5 |
± (0.1+
the selected measuring force/10) |
within 0.1 | 300 |
| 227-213-20 | 0.6 - 1.2 | 380 | ||||||||
| 227-215-20 | 0 - 0.4 | 2 - 10 (adjustable) |
2, 4, 6, 8, 10 |
± (0.4+
the selected measuring force/10) |
within 0.4 | 345 | ||||
|
227-216-20 |
0.4 - 0.8 | 425 | ||||||||
| 227-217-20 | 0.8 - 1.2 | 415 | ||||||||
• Measurement posture: horizontal orientation only (Recommended spindle inclination: within ±3°)
• Power source:
SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under
normal use
• Position detection method: Electrostatic capacity absolute sensor
• Standard accessories: Setting
standard, 1 pc. (except for measuring range 0 to 15 mm (0 to 0.6 in)/0 to 10 mm (0 to 0.4 in) models), Screwdriver
(210183), 1 pc.
* These values are guaranteed when micrometer is used in a horizontal orientation (within ±3
degrees)
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

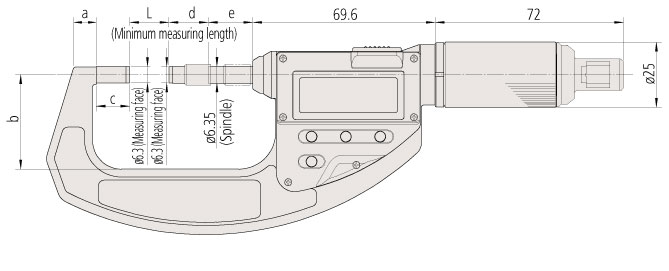

| Range (mm) | L | a | b | c | d | e |
| 0 - 15 | 0 | 6.2 | 25 | 2 | 15 | 17 |
| 15 - 30 | 15 | 8.5 | 36 | 12.8 | 15 | 17 |
| 0 - 10 | 0 | 6.2 | 25 | 2 | 10 | 22 |
| 10 - 20 | 10 | 8.5 | 36 | 17.8 | 10 | 22 |
| 20 - 30 | 20 | 8.5 | 36 | 7.8 | 10 | 22 |
