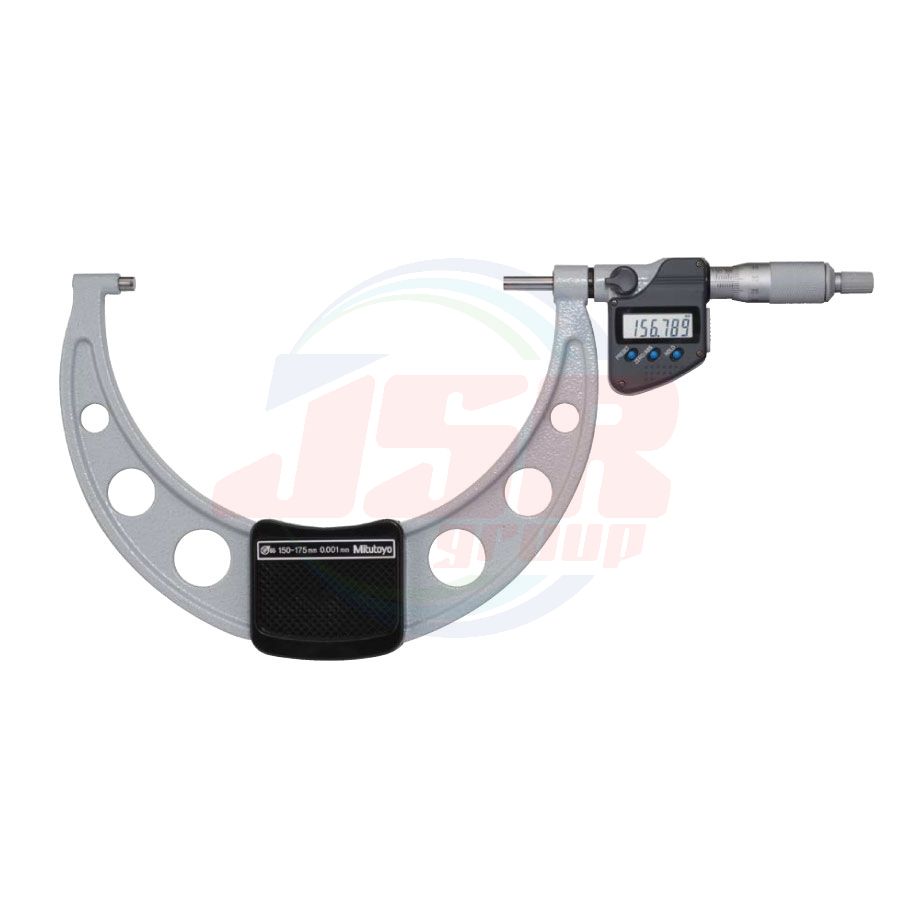

293-252-30 | Coolant Proof Micrometers SERIES 293 — IP65 Digimatic Micrometer | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 8,116.82
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
293-252-30
QTY:
5
• Accurate and highly environmentally resistant, assisting with many types of measurements.
• Oil-resistant material used for all plastic parts.
• Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system.
With SPC data output
| Order No. | 293-252-30 (MDC-175MX) |
|---|---|
| Range | 150 - 175 mm |
| แบรนด์สินค้า | MITUTOYO |
| Inch-Metric | Metric |
| Digital/Analog | Digital |
| Resolution | 0.001 mm |
| Measuring force (N) | 5 - 10 |
| Maximum Permissible Error J MPE | ±3µm |
| Parallelism | 3 µm |
| Flatness | 0.3 µm |
| Constant measuring force | With ratchet stop |
| Mass | 800g |
| Range (mm) | Order No. | L | a | b | c |
| 100 - 125 | 293-250-30 | 100 | 16.7 | 76 | 5.3 |
| 125 - 150 | 293-251-30 | 125 | 18.8 | 90 | 5.7 |
| 150 - 175 | 293-252-30 | 150 | 19.1 | 103 | 6.1 |
| 175 - 200 | 293-253-30 | 175 | 18.2 | 115 | 6.3 |
| 200 - 225 | 293-254-30 | 200 | 16.8 | 126 | 6.7 |
| 225 - 250 | 293-255-30 | 225 | 18 | 139 | 5.5 |
| 250 - 275 | 293-256-30 | 250 | 18 | 152 | 6.5 |
| 275 - 300 | 293-257-30 | 275 | 18 | 166 | 6.5 |
