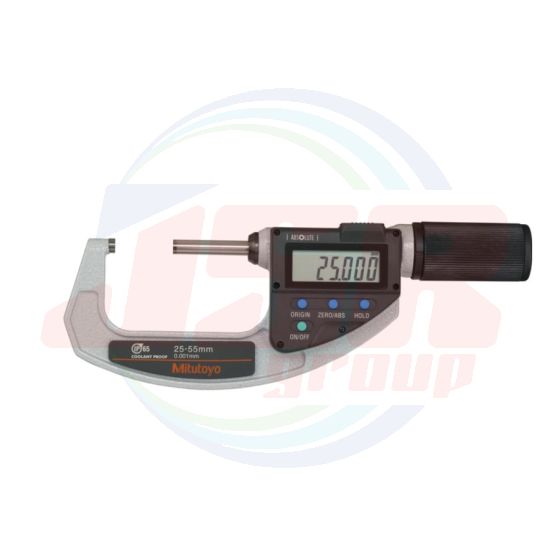

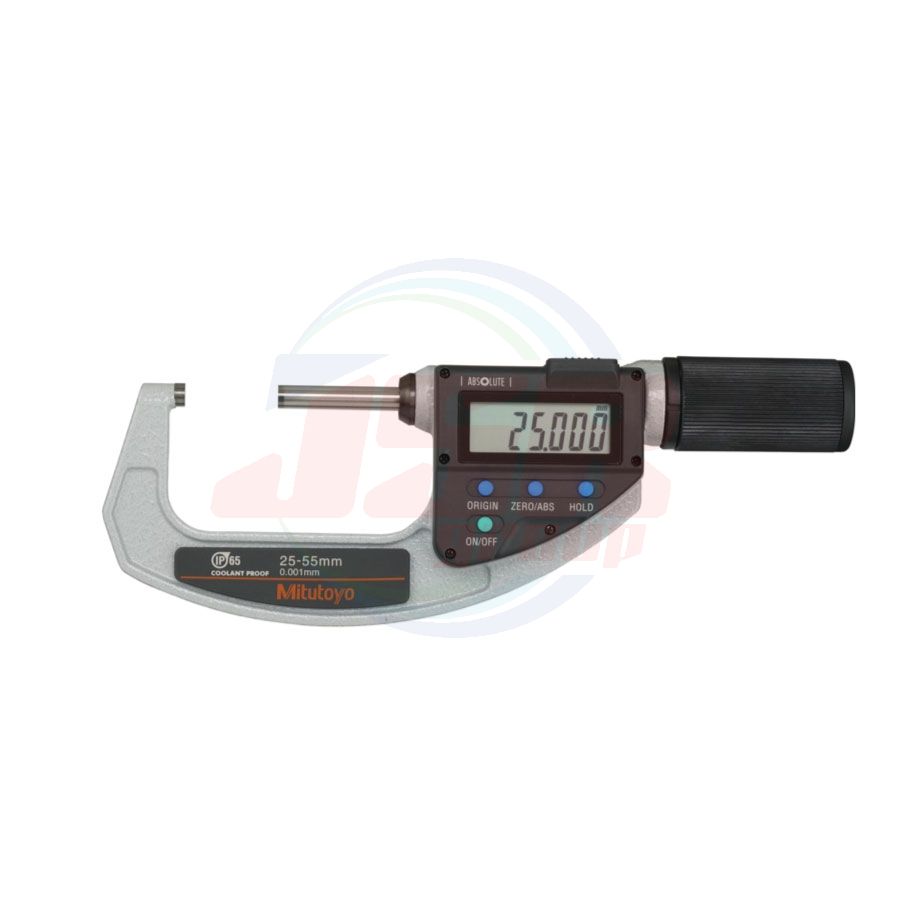

293-667-20 | Quickmike SERIES 293 — IP65 ABSOLUTE Digimatic Micrometers | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 9,678.50
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
293-667-20
QTY:
3
• The Quickmike provides a speedy spindle feed of 10 mm per thimble rotation which enables quick measurements of many different-sized features.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
With SPC data output
| Order No. | 293-667-20 (MDQ-55MX) |
|---|---|
| Range | 25 - 55 mm |
| แบรนด์สินค้า | MITUTOYO |
| Inch-Metric | Metric |
| Digital/Analog | Digital |
| Resolution | 0.001 mm |
| Measuring force (N) | 5 - 12 |
| Maximum Permissible Error J MPE | ±2 µm |
| Parallelism | 2 µm |
| Flatness | 0.3 µm |
| Constant measuring force | Yes |
| Mass | 340g |
| Range (mm) | L | a | b | c |
| 0 - 30 | 0 | 9 | 25 | 2 |
| 25 - 55 | 25 | 11.3 | 36 | 2.5 |
| 50 - 80 | 50 | 13.1 | 47 | 2.5 |
| 75 - 105 | 75 | 13.5 | 60 | 2.5 |
