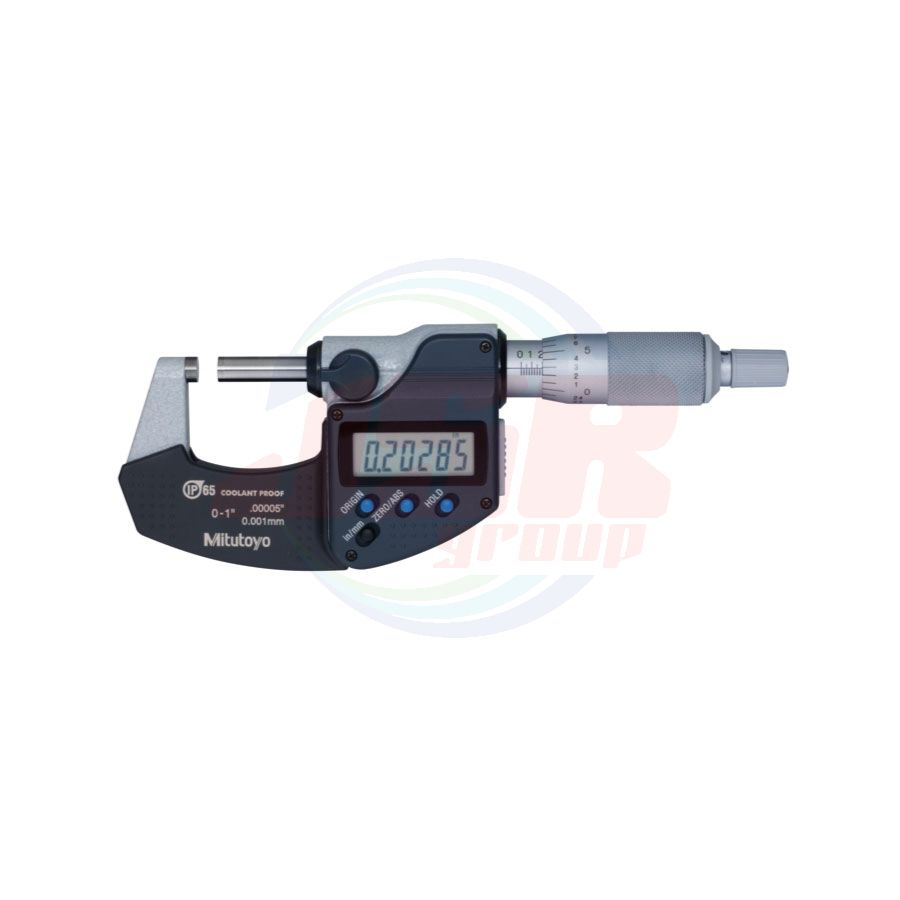

SERIES 293 | Coolant Proof Micrometers — IP65 Digimatic Micrometer | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 5,275.10
พร้อมส่ง
SKU
1MIT-MDC-MX-293
• Accurate and highly environmentally resistant, assisting with many types of measurements.
• Ratchet thimble provides better operability for one-handed operation.
• Oil-resistant material used for all plastic parts.
• Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system.

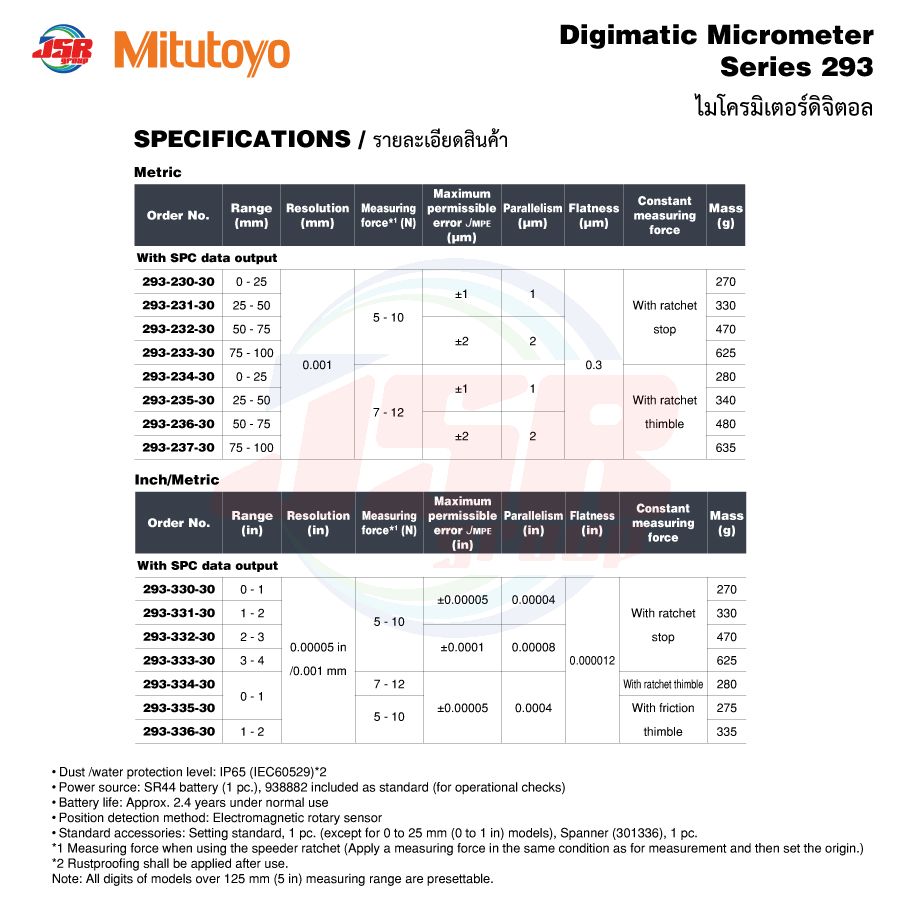

SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Measuring force*1 (N) |
Maximum permissible error J MPE (µm) |
Parallelism (µm) |
Flatness (µm) |
Constant measuring force |
Mass (g) |
| With SPC data output | ||||||||
| 293-230-30 | 0 - 25 | 0.001 | 5 - 10 | ±1 | 1 | 0.3 | With ratchet stop | 270 |
| 293-231-30 | 25 - 50 | 330 | ||||||
| 293-232-30 | 50 - 75 | ±2 | 2 | 470 | ||||
| 293-233-30 | 75 - 100 | 625 | ||||||
| 293-234-30 | 0 - 25 | 7 - 12 | ±1 | 1 | With ratchet thimble |
280 | ||
| 293-235-30 | 25 - 50 | 340 | ||||||
| 293-236-30 | 50 - 75 | ±2 | 2 | 480 | ||||
| 293-237-30 | 75 - 100 | 635 | ||||||
| Without SPC data output | ||||||||
| 293-240-30 | 0 - 25 | 0.001 | 5 - 10 | ±1 | 1 | 0.3 | With ratchet stop | 270 |
| 293-241-30 | 25 - 50 | 330 | ||||||
| 293-242-30 | 50 - 75 | ±2 | 2 | 470 | ||||
| 293-243-30 | 75 - 100 | 625 | ||||||
| 293-244-30 | 0 - 25 | 7 - 12 | ±1 | 1 | With ratchet thimble |
280 | ||
| 293-245-30 | 25 - 50 | 340 | ||||||
| 293-246-30 | 50 - 75 | ±2 | 2 | 480 | ||||
| 293-247-30 | 75 - 100 | 635 | ||||||
Inch / Metric
| Order No. | Range (in) |
Resolution | Measuring force*1 (N) |
Maximum permissible error J MPE (in) |
Parallelism (in) |
Flatness (in) |
Constant measuring force |
Mass (g) |
| With SPC data output | ||||||||
| 293-330-30 | 0 - 1 | 0.00005 in /0.001 mm |
5 - 10 | ±0.00005 | 0.00004 | 0.000012 | With ratchet stop | 270 |
| 293-331-30 | 1 - 2 | 330 | ||||||
| 293-332-30 | 2 - 3 | ±0.0001 | 0.00008 | 470 | ||||
| 293-333-30 | 3 - 4 | 625 | ||||||
| 293-334-30 | 0 - 1 | 7 - 12 | ±0.00005 | 0.00004 | With ratchet thimble | 280 | ||
| 293-335-30 | 5 - 10 | With friction thimble |
275 | |||||
| 293-336-30 | 1 - 2 | 335 | ||||||
| Without SPC data output | ||||||||
| 293-340-30 | 0 - 1 | 0.00005 in /0.001 mm |
5 - 10 | ±0.00005 | 0.00004 | 0.000012 | With ratchet stop | 270 |
| 293-341-30 | 1 - 2 | 330 | ||||||
| 293-342-30 | 2 - 3 | ±0.0001 | 0.00008 | 470 | ||||
| 293-343-30 | 3 - 4 | 625 | ||||||
| 293-344-30 | 0 - 1 | 7 - 12 | ±0.00005 | 0.00004 | With ratchet thimble |
280 | ||
| 293-345-30 | 1 - 2 | 340 | ||||||
| 293-346-30 | 2 - 3 | ±0.0001 | 0.00008 | 480 | ||||
| 293-347-30 | 3 - 4 | 635 | ||||||
| 293-348-30 | 0 - 1 | 5 - 10 | ±0.00005 | 0.00004 | With friction thimble | 275 | ||
| 293-349-30 | 0.0001 in /0.001 mm |
7 - 12 | ±0.0001 | With ratchet thimble | 280 | |||
• Dust /water protection level: IP65 (IEC60529)*2
• Power source: SR44 battery (1 pc.), 938882 included as
standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use
• Position detection
method: Electromagnetic rotary sensor

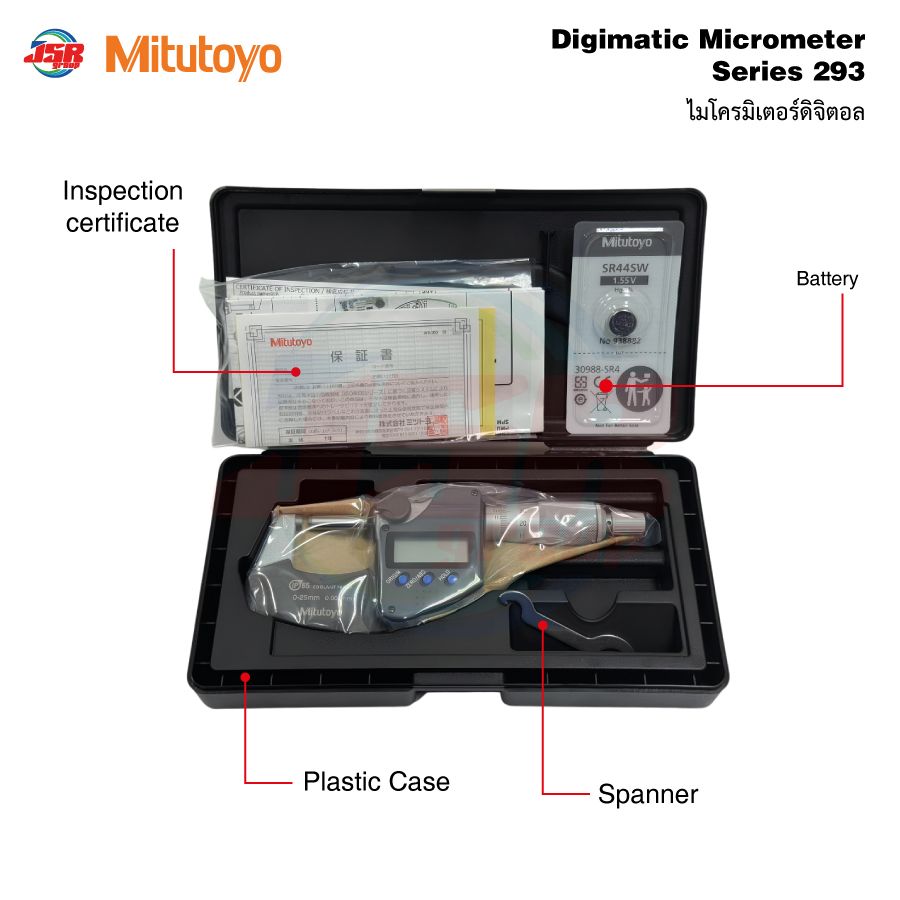

• Standard accessories: Setting standard, 1 pc. (except for 0 to 25 mm (0
to 1 in) models), Spanner (301336), 1 pc.
*1 Measuring force when using the speeder ratchet (Apply a measuring force in the same condition as for measurement
and then set the origin.)
*2 Rustproofing shall be applied after use.
Note: All digits of models over 125 mm
(5 in) measuring range are presettable.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

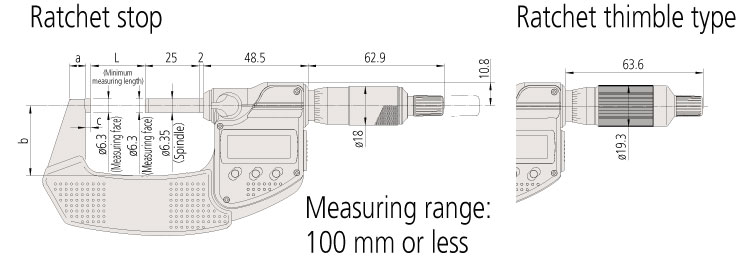

| Range (mm) | Order No. | L | a | b | c |
| 0 - 25 | 293-230-30 / 293-240-30 | 0 | 6.5 | 25 | 2.5 |
| 25 - 50 | 293-231-30 / 293-241-30 | 25 | 7.3 | 32.5 | 2.5 |
| 50 - 75 | 293-232-30 / 293-242-30 | 50 | 10.1 | 47 | 2.5 |
| 75 - 100 | 293-233-30 / 293-243-30 | 75 | 11.5 | 60 | 2.5 |
| 0 - 25 | 293-234-30 / 293-244-30 | 0 | 6.5 | 25 | 2.5 |
| 25 - 50 | 293-235-30 / 293-245-30 | 25 | 7.3 | 32.5 | 2.5 |
