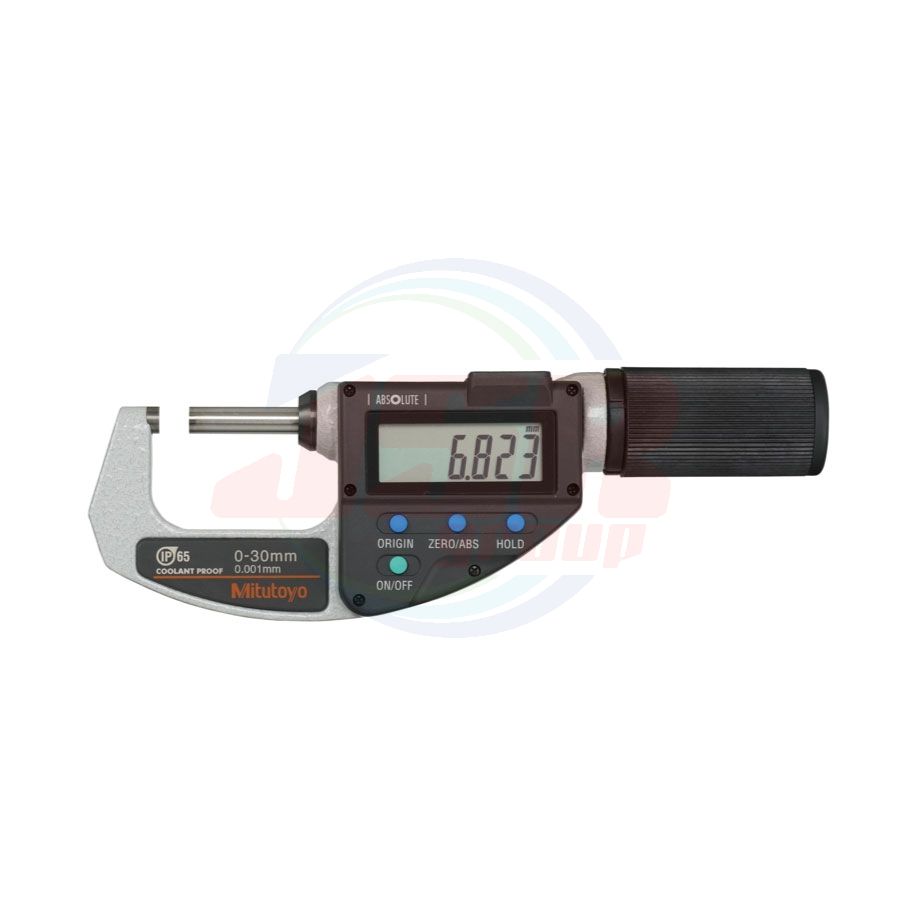

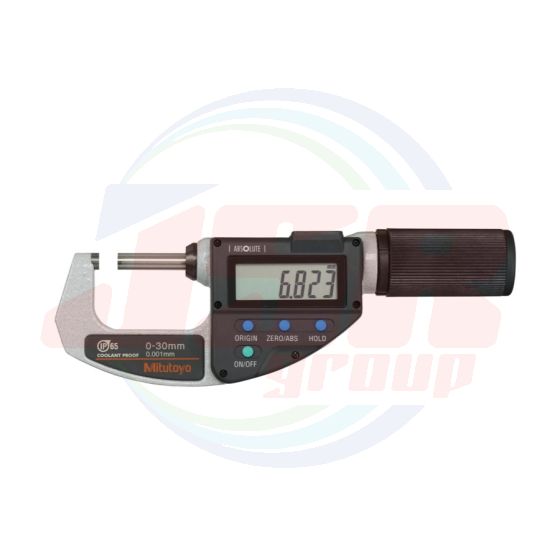

• The Quickmike provides a speedy spindle feed of 10 mm per thimble rotation which enables quick measurements of many different-sized features.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
Order No. | Range (mm) |
Resolution (mm) |
Measuring force (N) |
Maximum permissible error J MPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Constant measuring force |
Mass (g) |
With SPC data output | ||||||||
293-666-20 | 0 - 30 | 0.001 | 5 - 12 | ±2 | 0.3 | 2 | Yes | 275 |
293-667-20 | 25 - 55 | 340 | ||||||
293-668-20 | 50 - 80 | ±3 | 480 | |||||
293-669-20 | 75 - 105 | 3 | 585 |
Inch / Metric
Order No. | Range (in) |
Resolution | Measuring force (N) |
Maximum permissible error J MPE (in) |
Flatness (in) |
Parallelism (in) |
Constant measuring force |
Mass (g) |
With SPC data output | ||||||||
293-676-20 | 0 - 1.2 | 0.00005 in/ 0.001 mm |
5 - 12 | ±0.0001 | 0.000012 | 0.00008 | Yes | 275 |
293-677-20 | 1 - 2.2 | 340 | ||||||
293-678-20 | 2 - 3.2 | ±0.00015 | 480 | |||||
293-679-20 | 3 - 4.2 | 0.00012 | 585 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx.
5 years under normal use
• Position detection method: Electrostatic capacity absolute sensor
• Standard
accessories: Setting standard, 1 pc. (except for measuring range 0 to 30 mm (0 to 1.2 in) models)
• Maximum
response speed: without limit
• The non-rotating spindle enables even inexperienced operators to perform
measurements repeatably and accurately..
แบรนด์สินค้า | MITUTOYO |
---|---|
Digital/Analog | Digital |

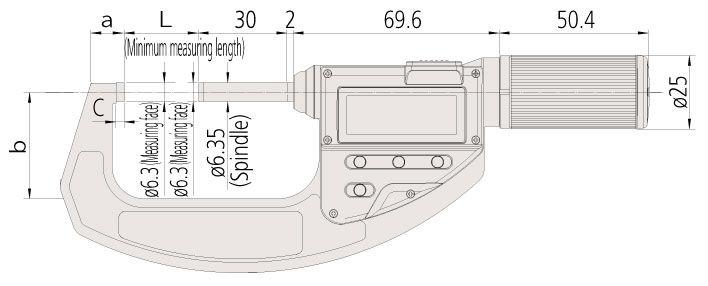

Range (mm) | L | a | b | c |
0 - 30 | 0 | 9 | 25 | 2 |
25 - 55 | 25 | 11.3 | 36 | 2.5 |
50 - 80 | 50 | 13.1 | 47 | 2.5 |
75 - 105 | 75 | 13.5 | 60 | 2.5 |
