2990A-10 | Dial Indicators SERIES 2 — Back Plunger Type Dial Indicators | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 5,607.48
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
2990A-10
QTY:
10

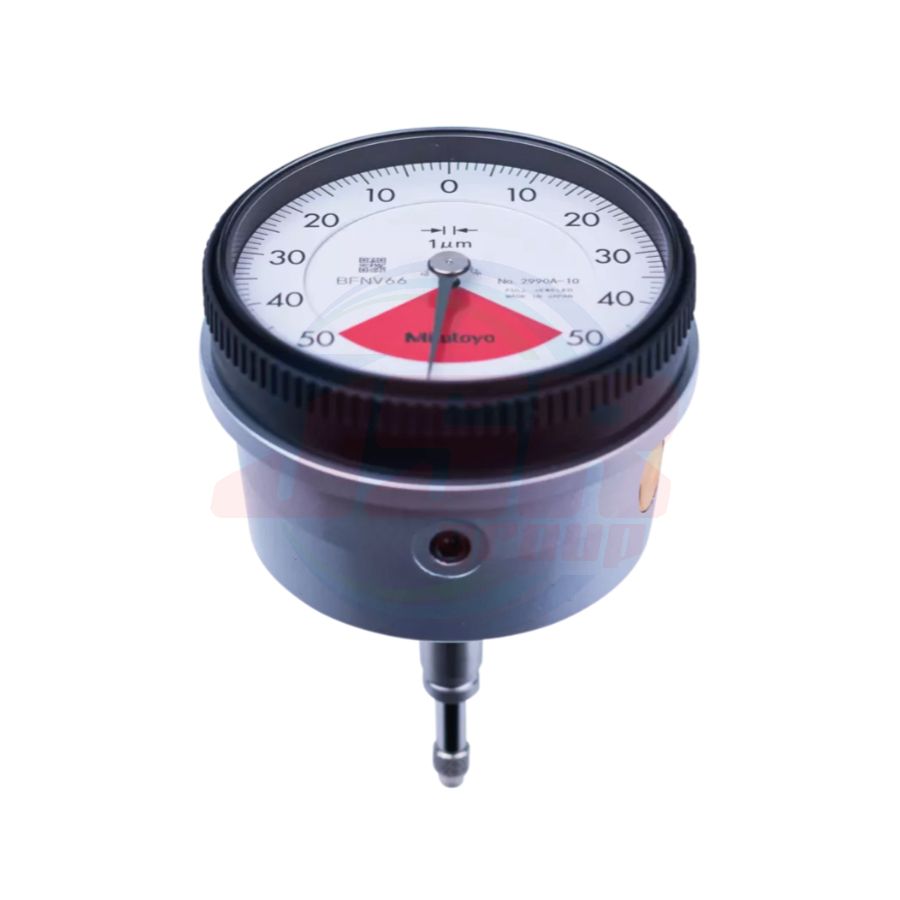

• The one revolution dial indicator (back plunger type) prevents the possibility of reading errors.
• Back plunger type dial indicators are suitable for mounting onto levelling machine tool tables or inspection jigs, and for use in situations where standard dial indicators are difficult to read.
• Mitutoyo's unique shockproof mechanism provides excellent durability and shock resistance.
• Model 2990A-10 provides 0.001 mm graduation.
• The red dead zone in the middle of the dial face is separated from the bezel and doesn't cover the graduations. Therefore, users can always see the range where accuracy is not guaranteed even if the bezel is rotated.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | |||||
| Indication error | Hysteresis | Repeatability | ||||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | |||||||
| 2960A | 0.01 | 1 (1.27) | 8 | - | - | 14 | 4 | 3 | 50-0-50 | 1.4 or less |
| 2990A-10 | 0.001 | 0.1 (0.14) | 2.5 | - | - | 5 | 2 | 1 | 50-0-50 | 1.5 or less |
Note 1: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
Note 2: The bezel clamp cannot be used.
 Balanced scale |
Balanced scale |
|||||
 |
 |
|||||
|
Graduation: 0.01 mm, |
2960A |
Graduation: 0.001 mm, |
2990A-10 |
|||
 |
One revolution | |
One revolution | |||
 |
Shockproof | |
Shockproof | |||
 |
Back Plunger | |
Back Plunger | |||
 |
Jeweled bearing | |||||
FEATURES
Metric
| Order No. |  |
|
|
|
|
| 2960A | √ | √ | √ | √ | |
| 2990A-10 | √ | √ | √ | √ | √ |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 2990A-10 (DG0.001-0.1MM) |
| Graduation | 0.001 mm |
| Range (range/rev) | 0.1 (0.14) mm |
| MPE measuring range | 5 μm |
| MPE Hysteresis | 2 μm |
| MPE Repeatability | 1 μm |
| Dial reading | 50-0-50 |
| Measuring force (N) | 1.5 or less |
