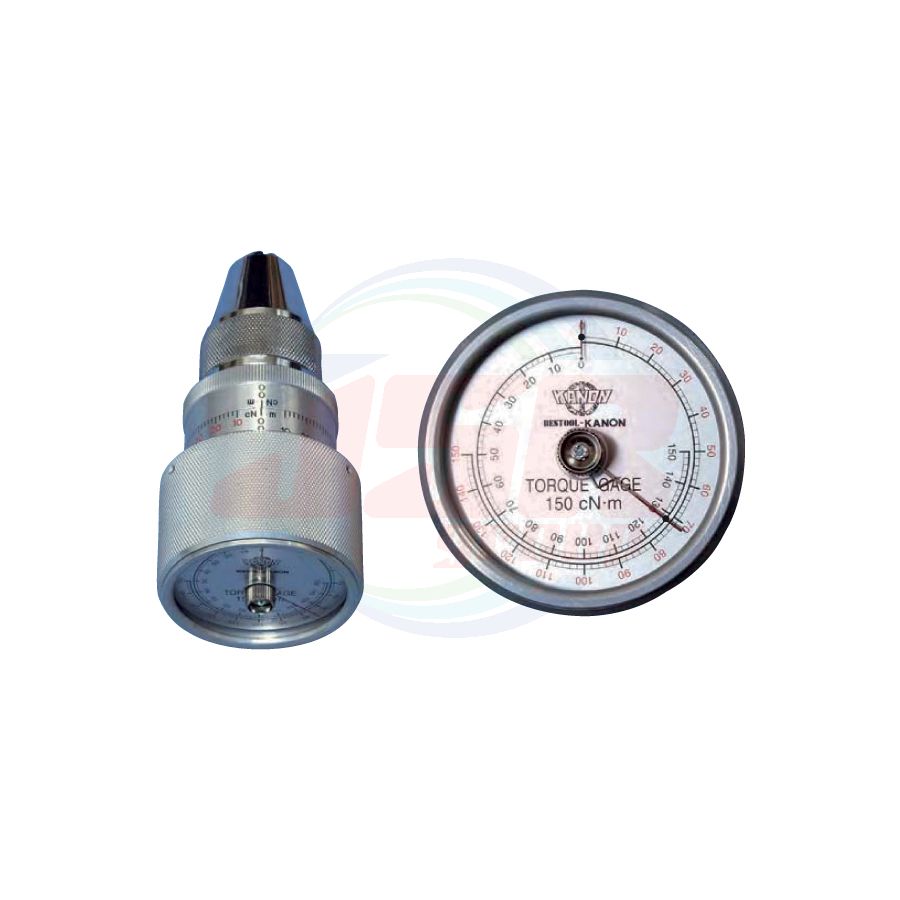

300(Ⅰ)SGK | SGK TORQUE GAUGES | KANON
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
300(Ⅰ)SGK
QTY:
21
FEATURES
● Due to their miniature design and light weight, these gauges are convenient and easy to carry.
● A three part chuck with knurked surface enables firmly gripping even odd shapes.
● The inset scale face helps avoid incidental damage.
● The gauges measure clockwise and counter clockwise.
● With scales on the sides and the face, torque readings can be obtained either way.
● Accuracy : ±6% of indicated value over the full range.
| Order No.(gf•cm / kgf•cm) | Range | Increment | Order No. (mN•m / cN•m) | Old Model (mN•m / cN•m) |
Range (CW / CCW) |
Increment | Chucking dia. | (without bit) Total length | Dimensions (mm) | Weight | ||
| Grip dia. | Total length (without chuck) | |||||||||||
| gf•cm / kgf•cm | mN•m / cN•m | Ømm | mm | ØD | L1 | L2 | kg | |||||
| 90(Ⅰ)SGK | 10~90 gf•cm | 2 gf•cm | MN9SGK | N90(Ⅰ)SGK | 1~9 mN•m | 0.2 mN•m | 1~6.5 | 106 | 43 | 81 | 57.5 | 0.29 |
| 150(Ⅰ)SGK | 20~150 gf•cm | 2 gf•cm | MN15SGK | N150(Ⅰ)SGK | 2~15 mN•m | 0.2 mN•m | ||||||
| 300(Ⅰ)SGK | 40~300 gf•cm | 5 gf•cm | MN30SGK | N300(Ⅰ)SGK | 4~30 mN•m | 0.5 mN•m | ||||||
| 600(Ⅰ)SGK | 50~600 gf•cm | 10 gf•cm | MN60SGK | N600(Ⅰ)SGK | 5~60 mN•m | 1 mN•m | ||||||
| 1200(Ⅰ)SGK | 100~1,200 gf•cm | 20 gf•cm | MN120SGK | N1200(Ⅰ)SGK | 10~120 mN•m | 2 mN•m | ||||||
| 2400(Ⅰ)SGK | 200~2,000 gf•cm | 50 gf•cm | MN240SGK | N2400(Ⅰ)SGK | 20~240 mN•m | 5 mN•m | ||||||
| 1.5(Ⅱ)SGK | 0.1~1.5 kgf•cm | 0.02 kgf•cm | CN15SGK | N1.5(Ⅱ)SGK | 1~15 cN•m | 0.2 cN•m | 1~8.5 | 134 | 63 | 100 | 73 | 0.6 |
| 2.4(Ⅱ)SGK | 0.2~2.4 kgf•cm | 0.02 kgf•cm | CN24SGK | N2.4(Ⅱ)SGK | 2~24 cN•m | 0.2 cN•m | ||||||
| 3.6(Ⅱ)SGK | 0.4~3.6 kgf•cm | 0.05 kgf•cm | CN36SGK | N3.6(Ⅱ)SGK | 4~36 cN•m | 0.5 cN•m | ||||||
| 6(Ⅱ)SGK | 0.5~6 kgf•cm | 0.1 kgf•cm | CN60SGK | N6(Ⅱ)SGK | 5~60 cN•m | 1 cN•m | ||||||
| 9(Ⅱ)SGK | 1~9 kgf•cm | 0.2 kgf•cm | CN90SGK | N9(Ⅱ)SGK | 10~90 cN•m | 2 cN•m | ||||||
| 15(Ⅱ)SGK | 1~15 kgf•cm | 0.2 kgf•cm | CN150SGK | N15(Ⅱ)SGK | 10~150 cN•m | 2 cN•m | ||||||
| แบรนด์สินค้า | KANON |
|---|
USING AN LTDK DRIVER
Starting torque can be measured with the chuck gripping a knob or shaft of an electronic device. Rotate clockwise or counterclockwise
Three part chuck
● If you would like SGK with a peak indicator,please specify “SGK-G” on your purchase order. ex. CN150SGK-G
