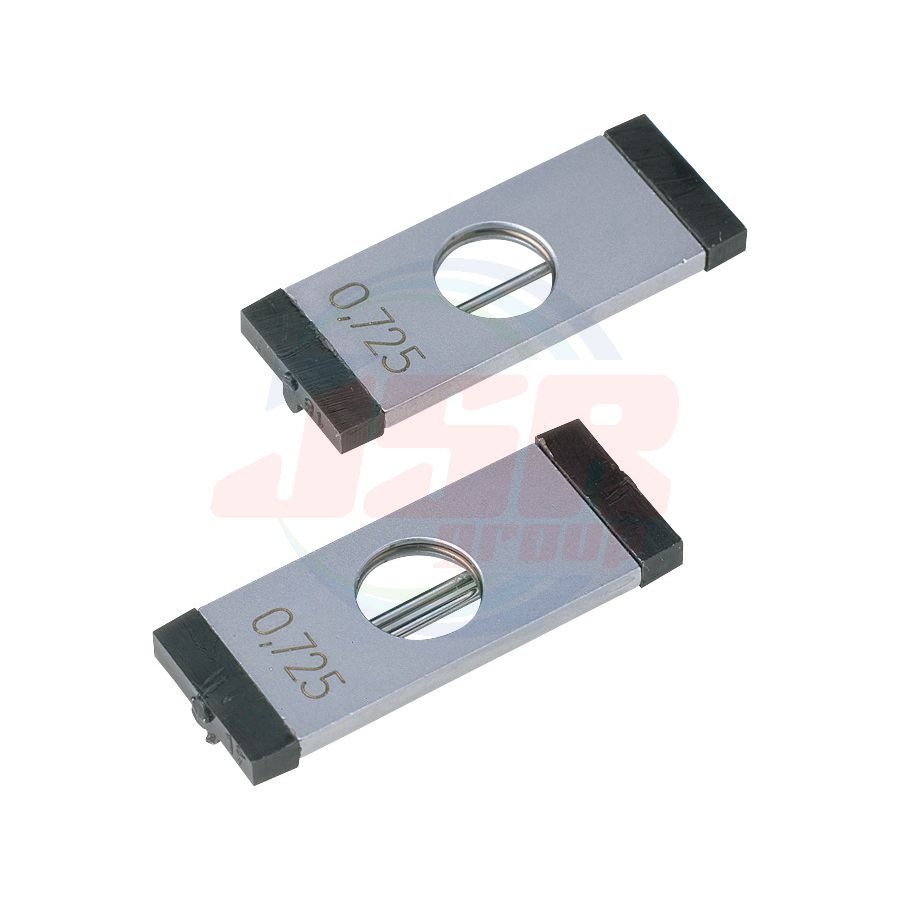

SERIES 313 | 3-Wire Units | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 5,404.57
พร้อมส่ง
SKU
1MIT-3-WIRE-313
• Enables pitch diameter measurements
of screw threads when attached to the
measuring faces of both the spindle and
anvil of a micrometer.
|
Order No. (One pair) |
Wire dia. (mm) |
Accuracy of wire diameter (mm) |
Pitch | ||
| 6.35 mm (0.25 in) | Metric thread (mm) |
Unified thread (threads per inch) |
Whitworth thread(threads per inch) | ||
| 952131 | 0.170 | ±0.002 | 0.2, 0.25, 0.3 | 80 | - |
| 952132 | 0.195 | 0.35 | 72 | - | |
| 952133 | 0.220 | 0.4 | 64 | - | |
| 952134 | 0.250 | 0.45 | 56 | 60 | |
| 952135 | 0.290 | 0.5 | 48 | 48 | |
| 952136 | 0.335 | 0.6 | 44, 40 | 40 | |
| 952137 | 0.390 | 0.7 | 36 | 36 | |
| 952138 | 0.455 | 0.75, 0.8 | 32 | 32 | |
| 952139 | 0.530 | 0.9 | 28 | 28, 26 | |
| 952140 | 0.620 | 1.0 | 24 | 24, 22 | |
| 952141 | 0.725 | 1.25 | 20 | 20, 19, 18 | |
| 952142 | 0.895 | 1.5 | 18, 16 | 16 | |
| 952143 | 1.100 | 1.75, 2.0 | 14, 13, 12 | 14, 12 | |
| 952144 | 1.350 | 2.5 | 11, 10 | 11, 10 | |
| 952145 | 1.650 | 3.0 | 9, 8 | 9, 8 | |
| 952146 | 2.050 | 3.5 | 7 | 7 | |
| 952147 | 2.550 | 4, 4.5 | 6 | 6 | |
| 952148 | 3.200 | 5, 5.5, 6 | 5, 4.5 | 5, 4.5 | |
3-Wire Units set
| Order no. | Set | Wire dia. (mm) | Support spindle dia. (mm) |
| 313-101 | 18 | 0.170 - 3.200 | 6.35 |
Note 1: Special-specification 3-wire units with a wire diameter other than those listed above (ø0.15 mm or more) can also be
made to order.
Note 2: Due to potential obstruction, the 3-wire unit cannot be used with screws having an external diameter exceeding
ø50 mm.
