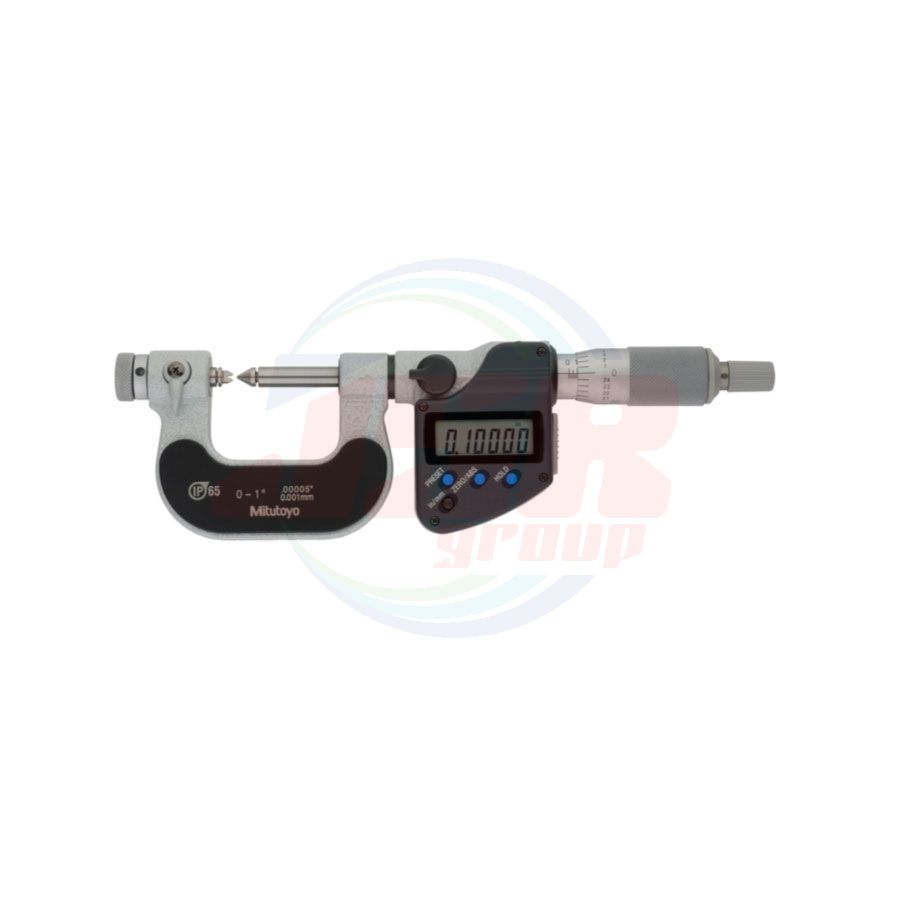

326-351-30 | Screw Thread Micrometers — Interchangeable Anvil/Spindle Tip Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 9,862.62
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
326-351-30
QTY:
6
• This is a screw thread micrometer with changeable anvil and spindle tips. It enables direct reading of screw pitch diameter. Both analog and digital types are available.
• Interchangeable anvil and spindle tips are optional. Select the right model to meet the specifications of your screw thread.
• Equipped with Ratchet Stop for constant measuring force.
• Supplied with a setting standard for adjusting zero point for metric (unified) 60º threads.
With SPC data output
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
| Order_Mitutoyo_Micrometer_326 | 326-351-30 (TMC-1"MX) |
| Range | 0 - 1 in / 0 - 25 mm |
| Resolution | 0.00005 in/ 0.001 mm |
| Spindle feed error | 0.00015 in |
| Range (mm) | b | d |
| 0 - 25 | 25 | 39 |
| 25 - 50 | 32 | 64 |
| 50 - 75 | 45 | 89.5 |
| 75 - 100 | 65 | 115.1 |
| 100 - 125 | 79 | 140.1 |
| 125 - 150 | 93 | 165.1 |
| 150 - 175 | 105 | 190 |
| 175 - 200 | 118 | 214 |
| 200 - 225 | 131 | 240 |
| 225 - 250 | 144 | 265 |
| 250 - 275 | 156 | 290 |
| 275 - 300 | 169 | 314 |
