SERIES 340 | Outside Micrometers — with Interchangeable Anvils | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 17,869.00
พร้อมส่ง
SKU
1MIT-OMC-MX-340
• Wide measuring range with interchangeable anvils.
• Measuring face of the spindle is carbide tipped (standard model).
• Wide measuring range with interchangeable anvils.
• Measuring face of the spindle is carbide tipped (standard model).
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Spindle feed error (µm) |
Flatness (µm) |
Parallelism (µm) |
Interchangeable anvils |
Setting Standard | Micrometer head stroke (mm) |
|
| Qty | Size (mm) | ||||||||
| With SPC data output | |||||||||
| 340-251-30* | 0 - 75 | 0.001 | 3 | 0.6 | 2 | 6 pcs. | 5 | 25 - 125 | 25 |
| 75 - 150 | 3 | ||||||||
| 340-252-30* | 150 - 300 | 5 | 6 | 150 - 275 | |||||
| 340-520 | 300 - 400 | 1.0 | 6 | 4 pcs. | 4 | 300 - 375 | |||
| 340-521 | 400 - 500 | 7 | 400 - 475 | ||||||
| 340-522 | 500 - 600 | 8 | 500 - 575 | ||||||
| 340-523 | 600 - 700 | 9 | 600 - 675 | ||||||
| 340-524 | 700 - 800 | 10 | 700 - 775 | ||||||
| 340-525 | 800 - 900 | 11 | 800 - 875 | ||||||
| 340-526 | 900 - 1000 | 12 | 900 - 975 | ||||||
Inch / Metric
| Order No. | Range (in) |
Resolution | Spindle feed error (in) |
Flatness (in) |
Parallelism (in) |
Interchangeable anvils |
Setting Standard | Micrometer head stroke (mm) |
|
| Qty | Size (in) | ||||||||
| With SPC data output | |||||||||
| 340-351-30* | 0 - 6 | 0.00005 in/ 0.001 mm |
0.00015 | 0.000024 | 0.00012 | 6 pcs. | 5 | 1 - 5 | 1 |
| 340-352-30* | 6 - 12 | 0.0001 in/ 0.001 mm |
0.0002 | 6 | 6 - 11 | ||||
| 340-720 | 12 - 18 | 0.00004 | 0.00028 | 12 - 17 | |||||
| 340-721 | 18 - 24 | 0.00036 | 18 - 23 | ||||||
| 340-722 | 24 - 30 | 0.0004 | 24 - 29 | ||||||
| 340-723 | 30 - 36 | 0.00044 | 30 - 35 | ||||||
*IP65 model.
• Power source for 340-251-30, 340-252-30, 340-351-30, 340-352-30: SR44 battery (1 pc.),
938882 included as standard (for operational checks)
Power source for 340-520 to 340-526,
340-720 to 340-723: SR44 battery (2 pcs.), 938882 included as standard (for operational checks)
• Battery
life: Approx. 2.4 years under normal use (for 340-2XX, 340-3XX)
Approx. 1.8 years under normal use (for 340-5XX, 340-7XX)
• Position
detection method: Electromagnetic rotary sensor (for series 340)
• Standard accessories: Spanner
(301336), 1 pc.
(for maximum measuring range up to 300 mm (12 in)), Spanner (200154), 1
pc.
(for maximum measuring range 400 mm (16 in) or over)
Note 1: For functional details of 340-251-30, 340-252-30, 340-351-30, 340-352-30.
Please note that origin setting of these models is by presetting.
Optional connection cable is available only for water-proof type
(Digimatic model).
Note 2: For functional details of 340-520 to 340-723.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

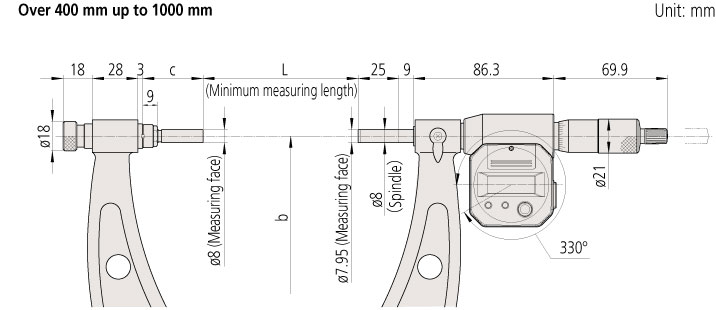

| L: Range (mm) | b | |||||
| Range | 300 - 400 mm models | 300 - 325 | 325 - 350 | 350 - 375 | 375-400 | 224 |
| Range | 400 - 500 mm models | 400 - 425 | 425 - 450 | 450 - 475 | 475 - 500 | 273 |
| Range | 500 - 600 mm models | 500 - 525 | 525 - 550 | 550 - 575 | 575 - 600 | 332 |
| Range | 600 - 700 mm models | 600 - 625 | 625 - 650 | 650 - 675 | 675 - 700 | 382 |
| Range | 700 - 800 mm models | 700 - 725 | 725 - 750 | 750 - 775 | 775 - 800 | 430 |
| Range | 800 - 900 mm models | 800 - 825 | 825 - 850 | 850 - 875 | 875 - 900 | 480 |
| Range | 900 - 1000 mm models | 900 - 925 | 925 - 950 | 950 - 975 | 975 - 1000 | 530 |
| Order No. | 304001 | 304002 | 304003 | 304004 | ||
| c: Overall (mm) | 87 | 62 | 37 | 12 | ||
| Interchangeable anvil | M3 | M4 | M5 | M6 | ||
