342-254-30 | Point Micrometers SERIES 342 - With carbide tip | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 9,063.55
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
342-254-30
QTY:
4
• Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
• The measuring points (carbide tipped) have approximately 0.3 mm radius.
• Measuring faces: Carbide tipped
• IP65 water / dust protection
• Equipped with Ratchet
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Digital |
| Order No. | 342-254-30 (CPM15-100MX) |
| Range | 75 -100 mm |
| Resolution | 0.001 mm |
| Point | 15º |

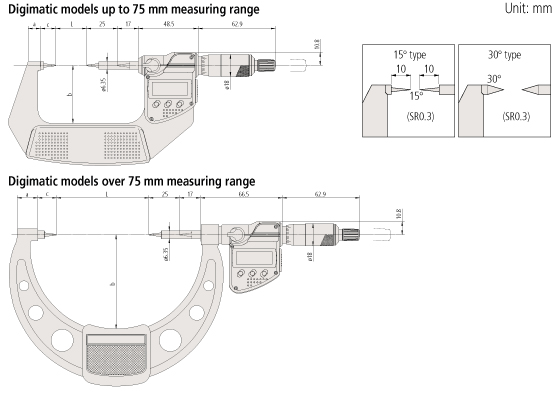

| Order No. | L | a | b | c | Frame thickness* |
| 342-251-30 | 0 | 7.3 | 32.5 | 12.5 | (12.2) |
| 342-261-30 | |||||
| 342-252-30 | 25 | 10.1 | 47 | (12.8) | |
| 342-262-30 | |||||
| 342-253-30 | 50 | 11.5 | 60 | ||
| 342-263-30 | |||||
| 342-254-30 | 75 | 16.7 | 76 | 15.3 | (20.8) |
| 342-264-30 |
* Digimatic type: thickness over heat shield
