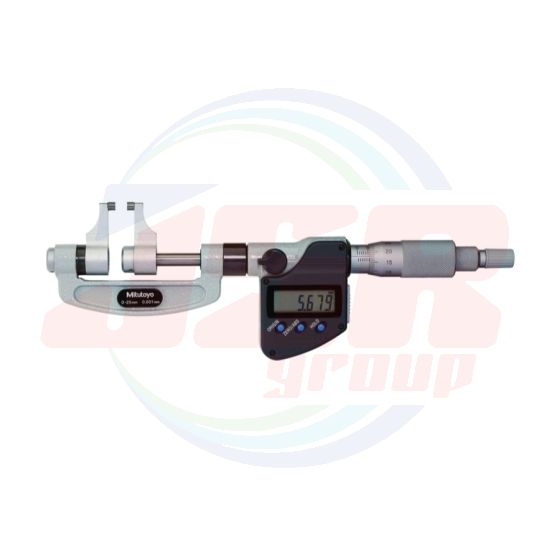

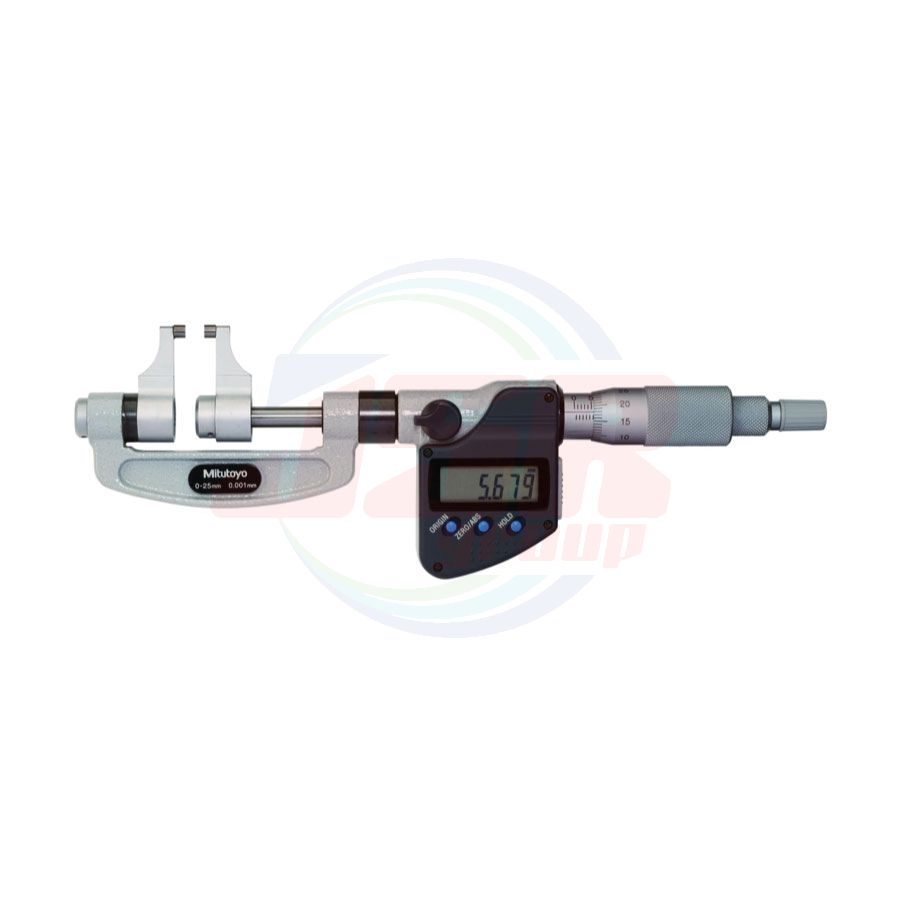

SERIES 343 | Caliper Type Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 17,644.30
พร้อมส่ง
SKU
1MIT-OMP-MX-343
• Effective for measuring workpiece features where access is difficult with a standard micrometer.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
With SPC data output
SPECIFICATIONS
Metric
| Code No. |
Range (mm) |
Resolution (mm) |
Maximum
permissible error J MPE (µm) |
Flatness (μm) |
Parallelism (μm) |
| With SPC data output | |||||
| 343-250-30 | 0 - 25 | 0.001 | ±5 | 0.3 | 3 |
| 343-251-30 | 25 - 50 | ±6 | |||
| 343-252-30 | 50 - 75 | ±7 | 4 | ||
| 343-253-30 | 75 - 100 | ±8 | |||
Inch/Metric
| Code No. |
Range (mm) |
Resolution (mm) |
Maximum
permissible error J MPE (µm) |
Flatness (μm) |
Parallelism (μm) |
| With SPC data output | |||||
| 343-350-30 | 0 - 1 | ±0.00025 | 0.000012 | 0.00012 | |
| 343-351-30 | 1 - 2 | ±0.0003 | |||
| 343-352-30 | 2 - 3 | ±0.00035 | 0.00016 | ||
| 343-353-30 | 3 - 4 | ±0.0004 | |||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use
• Position detection method: Electromagnetic rotary sensor • Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
Note: For functional details of series 343, refer to page 02-7. Please note that these models are not water-proof.
| แบรนด์สินค้า | MITUTOYO |
|---|
