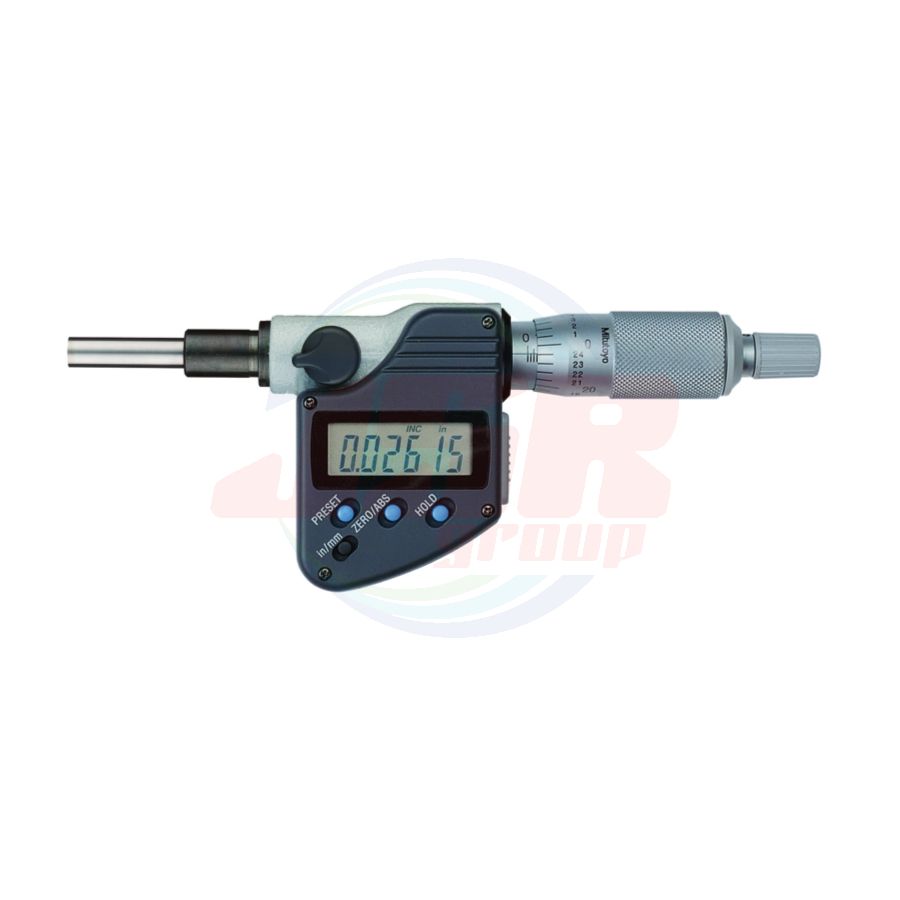

350-351-30 | Digimatic Micrometer Heads SERIES 350 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 5,227.10
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
350-351-30
QTY:
3
• Easy-to-read digital display.
• All models support data output.
SPECIFICATIONS
Inch/Metric
| Order No. | Range (in) |
Resolution | Graduation | Stem | Stem dia. (in) |
Spindle end | Graduation features |
Maximum permissible error J MPE (in) |
| 164-164 | 0 - 2 | 0.00005 in/ 0.001 mm |
— | Plain | 0.709 |
Flat (carbide tip) |
— | ±0.00015 |
| 350-351-30* | 0 - 1 | 0.001 in/ 0.01 mm |
0.375 | Standard | ±0.0001 | |||
| 350-352-30* | W/clamp nut | |||||||
| 350-353-30* | Plain | Spherical (SR4) (carbide tip) |
||||||
| 350-354-30* | W/clamp nut | |||||||
| 350-357-30* | Plain | |||||||
| 350-381-30** | 0.5 | Flat (carbide tip) | ||||||
| 350-382-30** | W/clamp nut | |||||||
| 350-383-30** | Plain | Spherical (SR4) (carbide tip) |
||||||
| 350-384-30** | W/clamp nut | |||||||
| 350-361-30** | Plain | Flat |
Power source for series 350: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
Power source for series 164: SR44 battery (2 pcs.), 938882 included as standard (for operational checks)
• Battery life:
Approx. 2.4 years under normal use (for 350-XXX)
Approx. 1.8 years under normal use (for 164-163, 164)
• Measuring face: Material / Carbide tip, Hardness / 90 HRA or more, Lapped
• Scale finishing: Satin-chrome plated
* These models are not water-proof.
** IP65 dust / water protection type. Stem diameter of IP65 type is 12 mm.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Order No. Micro Head | 350-351-30 (MHN1-1"MX) |
| Range | 0 - 1 in / 0 - 25 mm |
| Resolution | 0.00005 in/ 0.001 mm |
| Graduation | 0.001 in/ 0.01 mm |
| Stem | Plain |
| Stem dia. | 0.375 in |
| Spindle end | Flat (carbide tip) |
| Graduation features | Standard |
| Maximum permissible error J MPE | ±0.0001 in |
