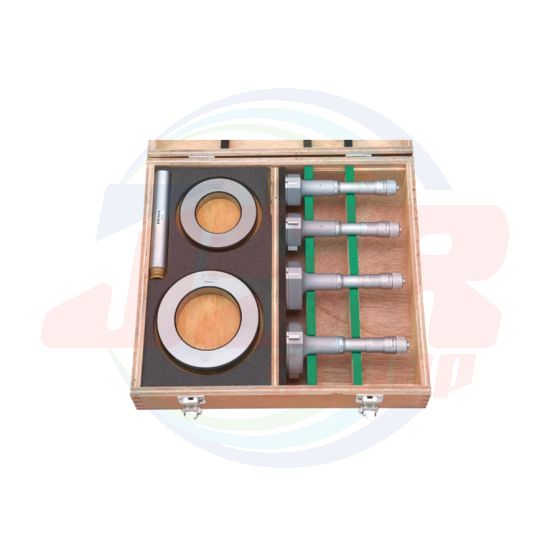

368-993 | Holtest (Type II) SERIES 368 — Three-point Bore Micrometers - Non-interchangeable Head Sets | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 46,963.55
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
368-993
QTY:
5
• The Holtests (type II) have three contact points made of alloy steel for a more economically priced tool.
• Same accuracy as the titanium-coated Holtest models.
• Constant-force device allows stable measurement.
• Can measure deep holes using an extension rod (optional).
SPECIFICATIONS
Metric
| Order No. | Range* (mm) |
Graduation (mm) |
Content of set |
| 368-991 | 12 - 20 | 0.005 | Micrometer head unit 12 - 16 mm 1 pc. 16 - 20 mm 1 pc. Setting ring (ø16) 1 pc. Extension rod (150 mm) 1 pc. Spanner 2 pcs. Hex wrench 1 pc. |
| 368-992 | 20 - 50 | Micrometer head unit 20 - 25 mm 1 pc. 25 - 30 mm 1 pc. 30 - 40 mm 1 pc. 40 - 50 mm 1 pc. Setting ring (ø25, ø40) 1 pc. each Extension rod (150 mm) 1 pc. Spanner 2 pcs. Hex wrench 1 pc. |
|
| 368-993 | 50 - 100 | Micrometer head unit 50 - 63 mm 1 pc. 62 - 75 mm 1 pc. 75 - 88 mm 1 pc. 87 - 100 mm 1 pc. Setting ring (ø62, ø87) 1 pc. each Extension rod (150 mm) 1 pc. Spanner 2 pcs. Hex wrench 1 pc. |
|
| 368-994 | 100 - 200 | Micrometer head unit 100 - 125 mm 1 pc. 125 - 150 mm 1 pc. 150 - 175 mm 1 pc. 175 - 200 mm 1 pc Setting ring (ø125, ø175) 1 pc. each Extension rod (150 mm) 1 pc. Spanner 2 pcs. Hex wrench 1 pc. |
* The measurement range cannot be enlarged by measuring heads that are not standard-supplied (the accuracy is not guaranteed).
| แบรนด์สินค้า | MITUTOYO | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Digital/Analog | Analog | |||||||||||||||||||||||||||
| Inch-Metric | Metric | |||||||||||||||||||||||||||
| Order no. | 368-993 (HT2-100RST) | |||||||||||||||||||||||||||
| Range | 50 - 100 mm | |||||||||||||||||||||||||||
| Graduation | 0.005 mm | |||||||||||||||||||||||||||
| Content of set |
|
|||||||||||||||||||||||||||
เขียนรีวิวสินค้าของคุณเอง
