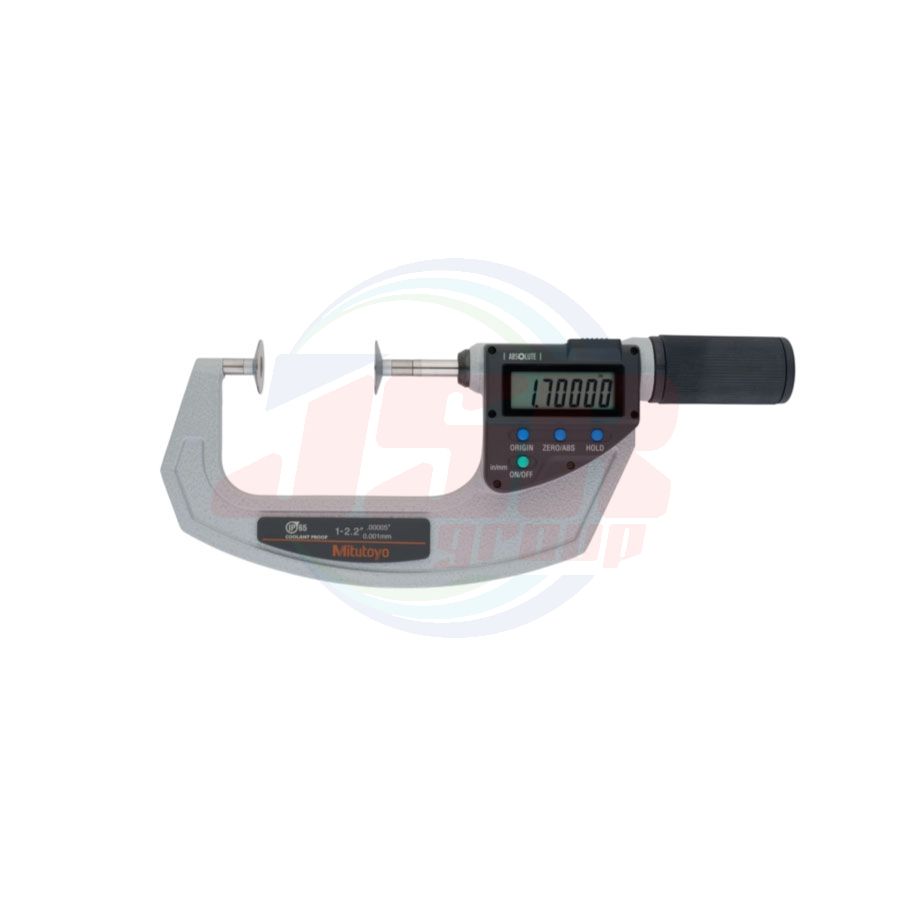

369-422-20 | Disc Micrometers SERIES 369 — Non-rotating Spindle Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 13,576.64
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
369-422-20
QTY:
10
• Can be used for making root tangent measurements on spur gears and helical gears.
• Non-rotating spindle eliminates torque on workpiece.
• Measurable range of gear pitch: 0.5 to 6 module (series 227: 0.4 to 3 module).
• Equipped with Ratchet Stop for constant measuring force.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
| Remarks | Quickmike type |
| Order No. | 369-422-20 (PDM-2.2"QMX) |
| Range | 1 - 2.2 in / 25 - 55 mm |
| Resolution | 0.00005 in/ 0.001 mm |
| Anvil dia. | ø0.787 in |
| Flatness | 0.00004 in |
| Parallelism | 0.0002 in |
| Measuring force (N) | 3 - 8 |
| Range (mm) | L | a | b | c |
| Quickmike type | ||||
| 0 - 30 | 0 | 8.5 | 36 | 13.5 |
| 25 - 55 | 25 | 10.3 | 47 | 13.5 |
| Quickmike adjustable measuring force type | ||||
| 0 - 15 | 0 | 6.2 | 25 | 5.2 |
| 0 - 10 | 0 | 6.2 | 25 | 5.2 |
