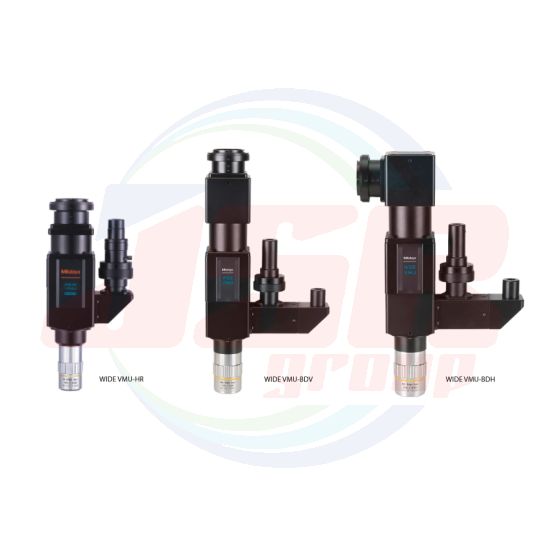

Wide-field Video Microscope Unit
WIDE VMU
Microscope unit for incorporating into optical systems.
Models in the line-up can support observation of an actual field of view of ø30 mm.
Suitable for various types of observation (bright-field, bright / dark-field, and near-infrared) and laser processing.
Observation image: Bright-field, Bright / Dark-field
Features
WIDE VMU-HR
> Observation over a wide field of view (Image field of ø30 mm)
> Compatible with HR series of high resolving power lens (Designed with pupil diameter of ø16.8)
> Greatly enhanced brightness on the periphery of the field of view (Reduces the dependence on the light distribution characteristics.)
> Compatible with near-infrared optical systems*¹

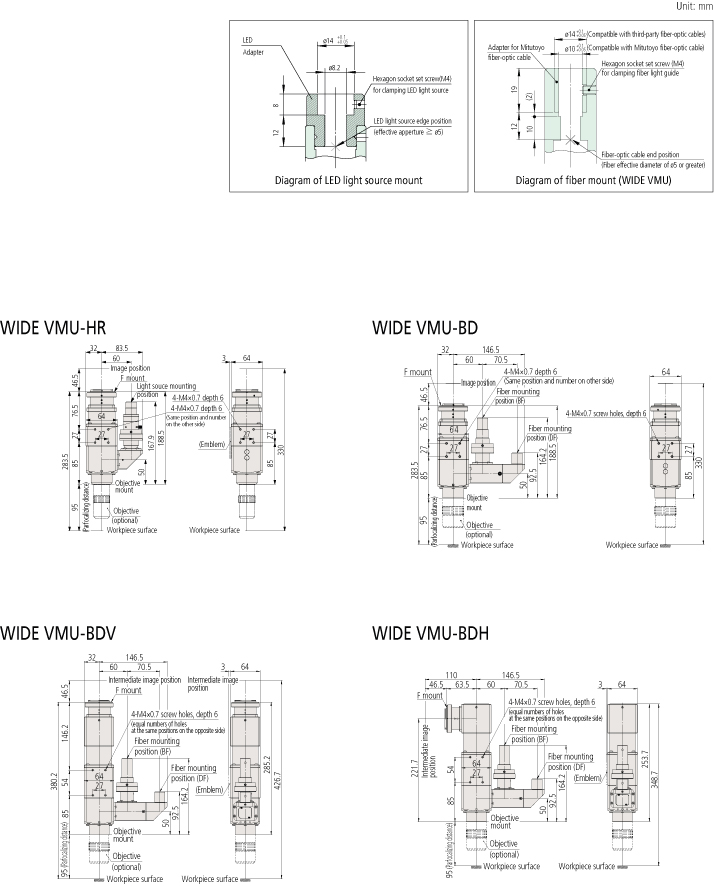

> Small design (Refer to page 9 for the dimensions.)
*1: *A near-infrared light source and compatible camera are required separately.

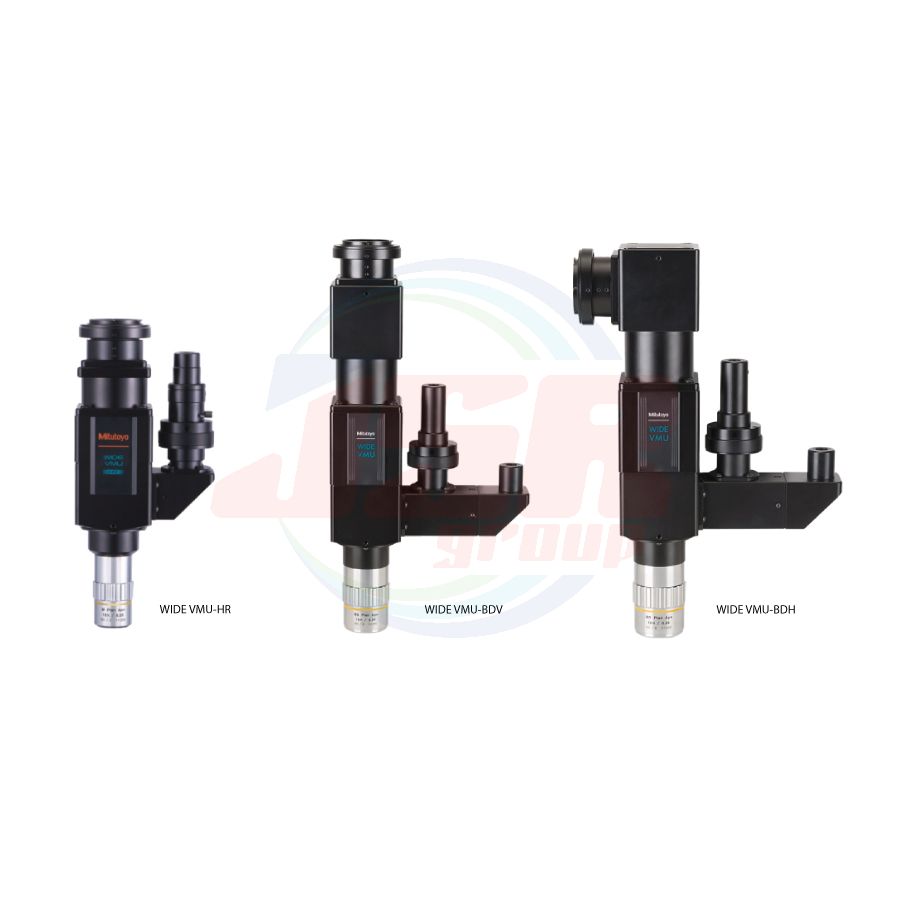

WIDE VMU-BD (Made-to-order product) / WIDE VMU-BDV / WIDE VMU-BDH
> Observation over a wide field of view (Image field of ø30 mm)
> Supports dark-field observation suited to inspection for foreign objects and scratches (Instantaneous switching between bright-field and dark-field is possible with illumination light source on/off)
> Small design (WIDE VMU-BD)
SPECIFICATIONS
| For Bright-Field Observation | For Bright/Dark-Field Observation | |||||
| Model | WIDE VMU-HR | WIDE VMU-BD*¹ | WIDE VMU-BDV | WIDE VMU-BDH | ||
| Order No. | 378-519 | - | 378-517 | 378-518 | ||
| Camera Mounting Orientation | Vertical | Vertical | Horizontal | |||
| Observation | Bright-field/Erect image | Bright/Dark-field/Erect image | Bright/Dark-field/Inverted image | |||
| Optical Tube |
Camera Port |
Optical Features | Magnification: 1X Visible light - Near-infrared light | Magnification: 1X Visible light | ||
| Mount | F-Mount, C-Mount (with aligning and parfocal adjustment mechanism) | |||||
| Imaging Forming (Tube) Lens | Built in 1X (visible - NIR) | Built in 1X (visible) | ||||
| Image Field | ø30 mm | |||||
| Polarized Unit *² | Mountable | |||||
| Objective Lens (Required) | M Plan Apo, M Plan Apo HR, M Plan Apo SL, G Plan Apo, NIR series | BD Plan Apo | ||||
| Applicable Camera | Diagonal line length: 30 mm or less (equivalent to APS-C format) | |||||
| Optical System Epi-Illumination | Telecentric (Pupil diameter of ø16.8 with aperture diaphragm) | Telecentric illumination, Bright/Dark-field illumination optical tube (Dual-port fiber-optic illumination) Bright/Dark-field switching with light source on-off |
||||
| Illuminated Lens Tube | Bright-field illuminated lens tube (rotatable) *³ LED adapter and fiber adapter included as standard |
Bright-field illuminated lens tube (rotatable) *³ Fiber adapter included as standard |
||||
| Illumination Unit (Optional) | Fiber illumination unit (LED) (No.176-386), Fiber-optic illumination unit (150 W) (No. 176-316) | |||||
| Main Unit Mass | 1400 g | 1600 g | 2000 g | 2150 g | ||
*1: Made-to-order products
*2: Polarized light observation is possible with brightfield illumination.
*3: The fiber (light source) mount orientation can be changed.
