EGA Master has developed a new range of stainless steel tools to provide solutions on safety and technologically advanced applications.
420* stainless steel contributes to avoid contaminations, rusting and complying with clean room environment requirements.
1.Designed to tighten in difficult access areas in critical applications and demanding environments such as laboratories, food processing, biotechnology, medical industries, clean rooms, underwater environments, etc.
2. 50% minimum rotation angle needed to work.
3. With “Flank drive” protection system to avoid the angular round off nut.
4. Double head for hexagonal nuts.
5. The opening makes possible the use of threaded rods.
6. Avoid contamination in other materials and the tendency to rusting in corrosive environments.

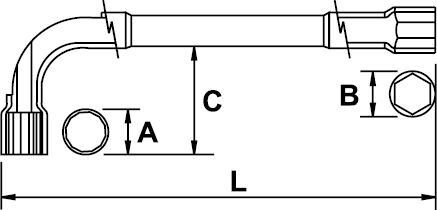

code | AFmm | L(mm) | A(mm) | B(mm) | C(mm) | g | ||
38986 | 6 | 100 | 11 | 11 | 38 | 60 | 6 | ● |
38961 | 7 | 110 | 13 | 13 | 42 | |||
38962 | 8 | 115 | 14 | 14 | 46 | 70 | ||
38215 | 10 | 130 | 16 | 16 | 50 | 120 | ||
38963 | 13 | 160 | 20 | 20 | 55 | 240 | ||
38964 | 16 | 185 | 25 | 25 | 70 | 410 | ||
38977 | 17 | 26 | 26 | 420 | ||||
38978 | 18 | 200 | 27 | 27 | 75 | 550 | ||
38979 | 19 | 28 | 28 | 600 | ||||
38983 | 22 | 230 | 32 | 32 | 90 | 850 | ||
38984 | 24 | 250 | 36 | 36 | 100 | 1150 |
แบรนด์สินค้า | EGA MASTER |
---|
