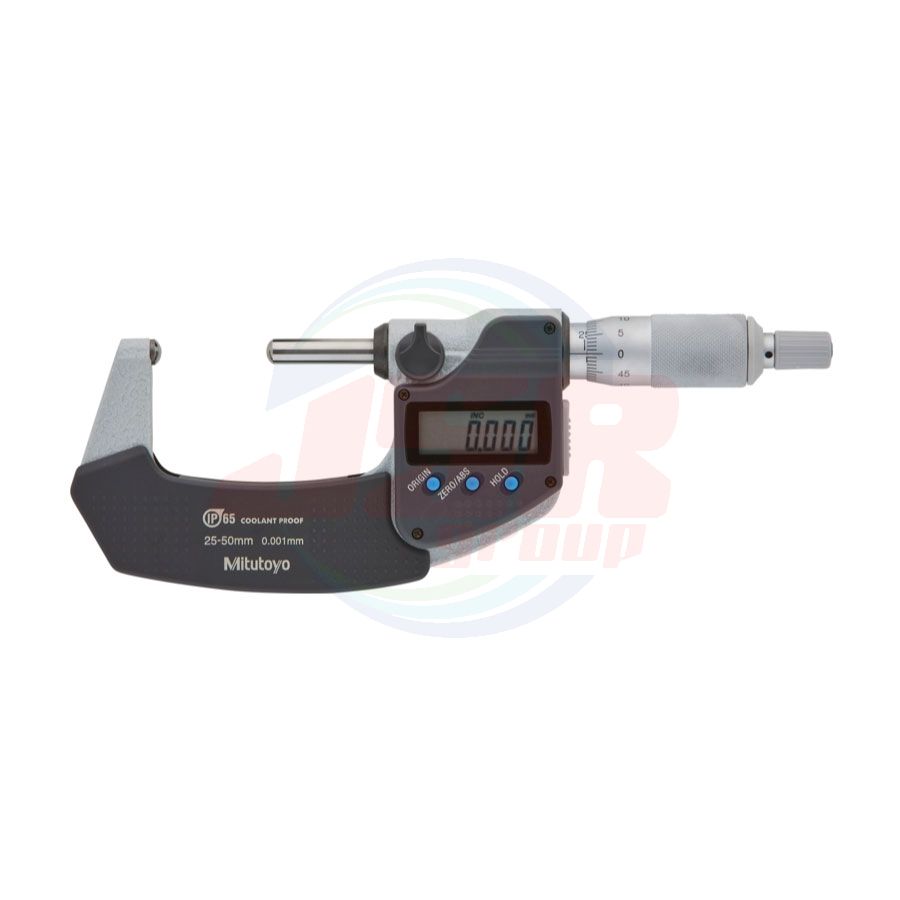

395-272-30 | Tube Micrometers SERIES 395 — Spherical Anvil and Spindle Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 6,235.51
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
395-272-30
QTY:
6

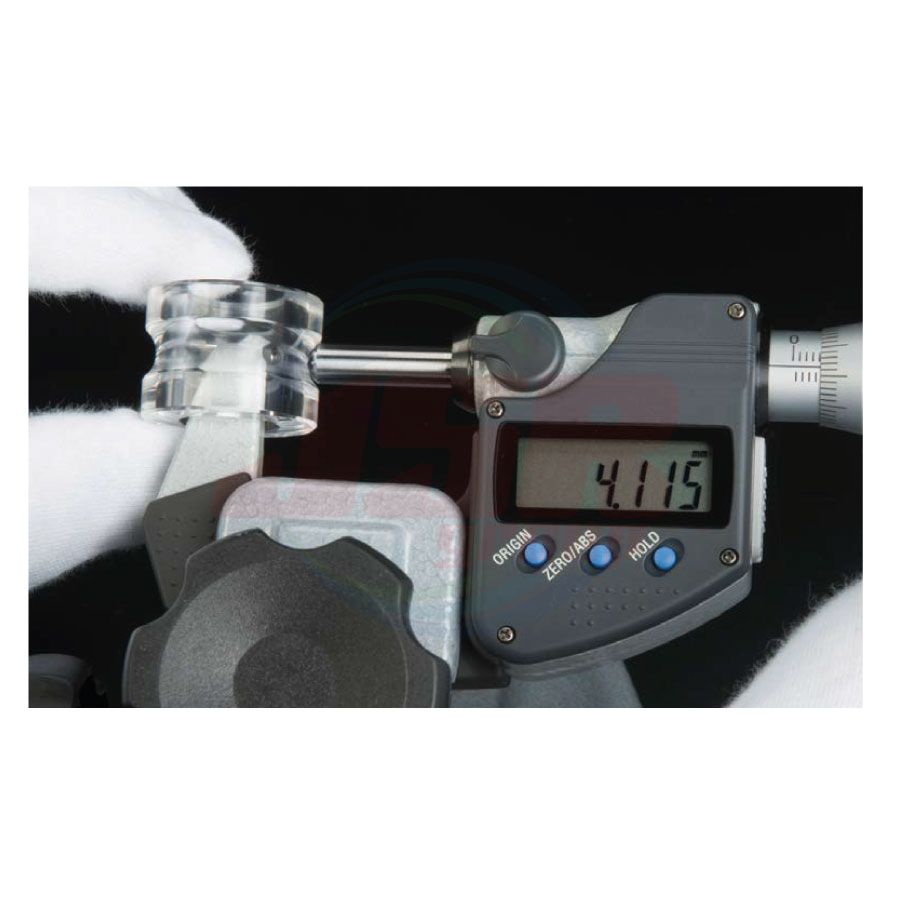

• Designed to measure workpieces with concave-concave surfaces. The spherical anvil and spindle respectively come into contact with the workpiece at a point, thus increasing measurement accuracy.
• IP65 water / dust protection (series 395).
• Equipped with Ratchet Stop for constant measuring force.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Digital |
| Order No. | 395-272-30 (BMD-50MX) |
| Range | 25 - 50 mm |
| Resolution | 0.001 mm |
| øD | ø15 mm |
| Range (mm) | D | b | c |
| 0 - 25 | 15 | 9 | 25 |
| 25 - 50 | 15 | 9.8 | 32 |
| 50 - 75 | 19 | 12.6 | 32 |
| 75 - 100 | 20 | 14 | 60 |
