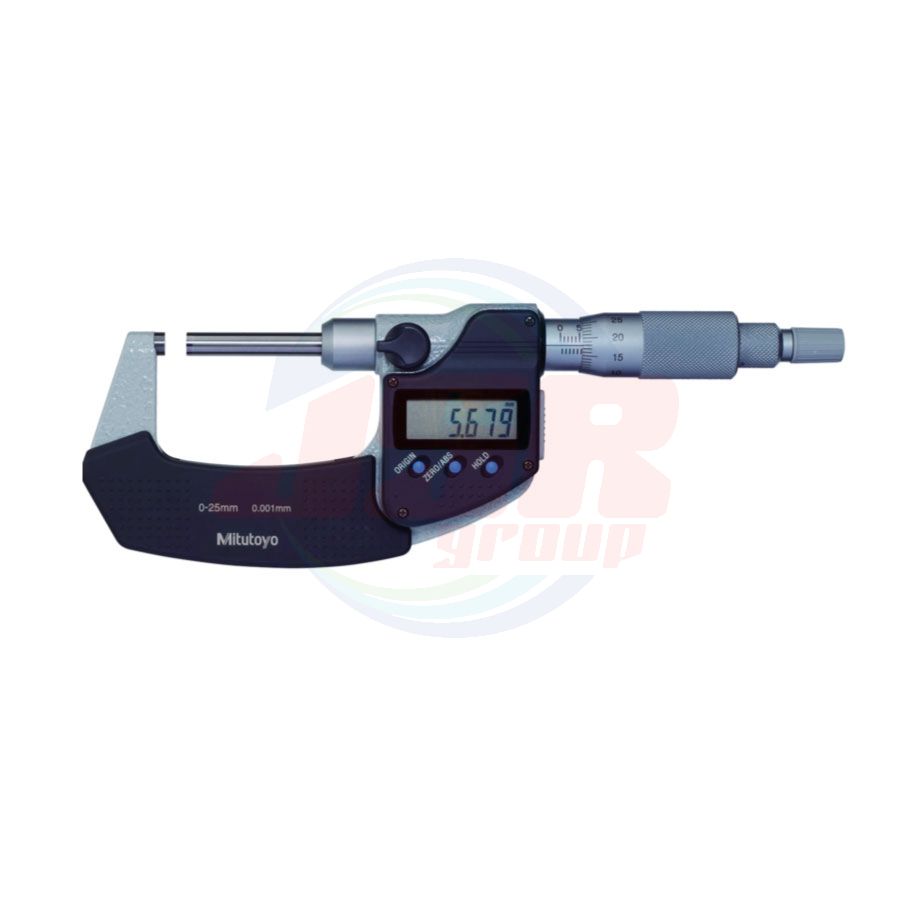

• Non-rotating spindle eliminates torque on workpiece. Therefore, it is suitable for measuring flexible workpieces such as rubber and paper or thin workpieces such as film.
• Measuring faces: Carbide tipped
• Spindle ø6.35 mm
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
Order No. | Range (mm) | Resolution (mm) |
Maximum permissible error J MPE (µm) |
Flatness (µm) | Parallelism (µm) |
With SPC data output | |||||
406-250-30 | 0 - 25 | 0.001 | ±3 | 0.3 | 3 |
406-251-30 | 25 - 50 | ||||
406-252-30 | 50 - 75 | ||||
406-253-30 | 75 - 100 | ±4 | 4 |
Inch / Metric
Order No. | Range (in) | Resolution |
Maximum permissible error J MPE (in) |
Flatness (in) | Parallelism (in) |
With SPC data output | |||||
406-350-30 | 0 - 1 | 0.00005 in/ 0.001 mm |
±0.00015 | 0.000012 | 0.00012 |
406-351-30 | 1 - 2 | ||||
406-352-30 | 2 - 3 | ||||
406-353-30 | 3 - 4 | ±0.0002 | 0.00016 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx.
2.4 years under normal use
• Position detection method: Electromagnetic rotary sensor
• Standard accessories:
Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models) / Spanner (301336), 1 pc.
Note: For functional details of series 406, refer to page 02-7. Please note that these models are not water-proof.
แบรนด์สินค้า | MITUTOYO |
---|---|
Digital/Analog | Digital |

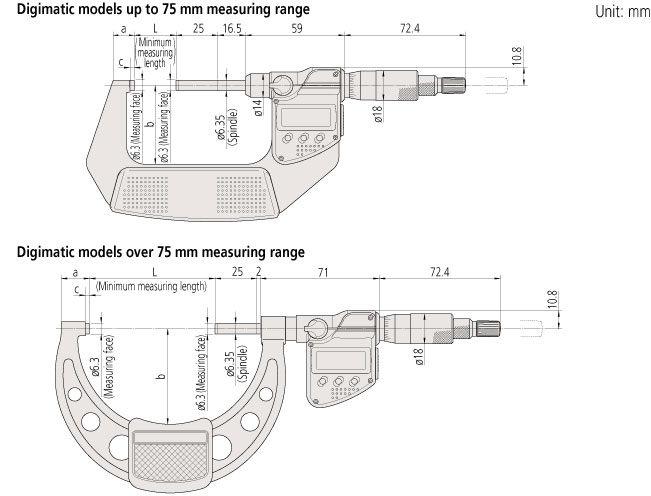

Rage (mm) | L | a | b | c |
0 - 25 | 0 | 9.8 | 32 | 2.5 |
25 - 50 | 25 | 12.6 | 47 | 2.5 |
50 - 70 | 50 | 14 | 60 | 2.5 |
75 - 100 | 75 | 16.9 | 57 | 2.8 |
