FTD - DIAL INDICATING TORQUE SCREWDRIVER WITH MEMORY POINTER Metric | TOHNICHI เครื่องมืออุตสาหกรรม เครื่องมือช่าง เครื่องมือวัดละเอียด

INSPECTION | DIAL INDICATING | MEMORY POINTER | DIRECT READING | ISO6789:2003

● Ideal for measuring torque.

● FTD-S with memory pointer; FTD with preset knob

Accuracy ±3%

S.I. Order No.	Torque Range [cN•m]		Metric Order No.	Torque Range [kgf•cm]		American Order No.	Torque Range [ozf•in/lbf•in]		Overall Length [mm]	Weight	Standard AccessoryBit
S.I. Order No.	Min.-Max.	Grad.	Metric Order No.	Min.-Max.	Grad.	American Order No.	Min.-Max.	Grad.	Overall Length [mm]	g	⊕	⊖ Thickness x width
FTD-S	cN•m	cN•m		gf•cm	gf•cm		ozf•in	ozf•in	152	140	Interchangeable bit issold separately.
FTD2CN-S	0.3-2	0.05	02FTD2-S	30-200	5	FTD3Z2-S	0.5-3	0.1
FTD5CN-S	0.5-5	0.1	05FTD2-S	50-500	10	FTD7Z2-S	1-7	0.2
				kgf•cm	kgf•cm
FTD10CN-S	1-10	0.2	1FTD2-S	0.1-1	0.02	FTD15Z2-S	2-15	0.5
FTC20CN-S	3-20	0.5	2FTD2-S	0.3-2	0.05	FTD30Z2-S	5-30	1
FTD50CN-S	5-50	1	5FTD2-S	0.5-5	0.1	FTD70Z2-S	10-70	2	272	370
							lbf•in	lbf•in
-	-	-	-	-	-	5FTD2-A-S	0.5-5	0.1
FTD100CN2-S	10-100	2	10FTD2-S	1-10	0.2	10FTD2-A-S	1-10	0.2

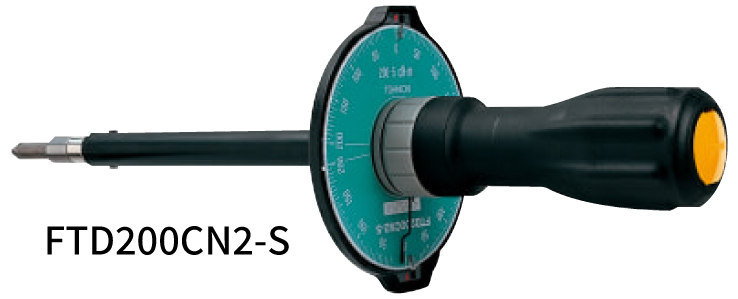

FTD200CN2-S	30-200	5	20FTD2-S	3-20	0.5	20FTD2-A-S	3-20	0.5
FTD400CN2-S	50-400	10	40FTD2-S	5-40	1	40FTD2-A-S	5-40	1
	N•m	N•m							338	900	#3	1.2 x 8
FTD8N2-S	1-8	0.2	80FTD2-S	10-80	2	80FTD2-A-S	10-70	2		900
FTD16N2-S	3-16	0.5	160FTD2-S	30-160	5	160FTD2-A-S	20-140	5		930
FTD	cN•m	cN•m							215	285	#1	0.7 x 7
FTD50CN	10-50	1	5FTD	1-5	0.1	5FTD-A	1-5	0.1		285	#1

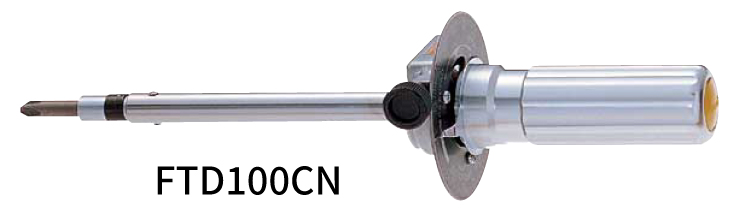

FTD100CN	20-100	2	10FTD	2-10	0.2	10FTD-A	1-10	0.2		290	#2
FTD200CN	40-200	5	20FTD	4-20	0.5	20FTD-A	3-20	0.5	263	390		0.9 x 7
FTD400CN	80-400	10	40FTD	8-40	1.0	40FTD-A	5-40	1	263	410		0.9 x 7

Note. FTD8N2-S, FTD16N2-S : Square drive type, 6.35mm

Standard Accessories. Auxiliary tightening bar for FTD8N2-S and FTD16N2-S
