QSPK PRE-SET, RATCHET TORQUE WRENCHES, METAL HANDLE | KANON
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
KANON
QTY:
0
FEATURES
● The ratchet drive enabkes quickly tightening fasteners to the preset torque. Suitable for repetitive jobs.
● The wrench’s inner mechanism automatically resets itself for the next job after disenganging from a tightened joint.
● Accuracy : ±3% of pre-set value.
EXAMPLE OF ORDER
Model Pre-set Value
| |
N100QSPK x 72N•m

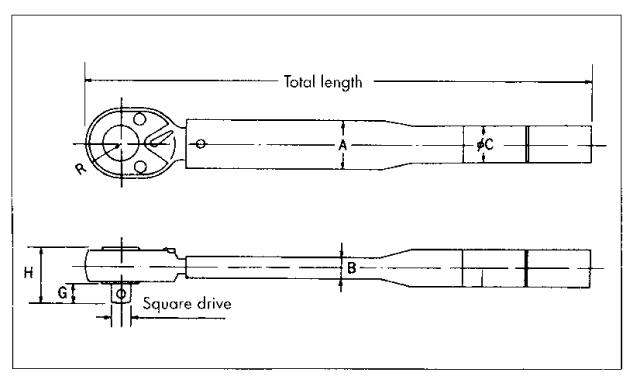

| Order No. (kgf•cm) | Range | Old Model (N•m) | Order No. (N•m) | Range | Order No. (lbf•in/ lbf•ft) | Range | Spanner sizes (W) | Total length | Dimensions (mm) |
Weight | |||||
| Head | Body | ||||||||||||||
| kgf•cm | N•m | lbf•in / lbf•ft | mm | mm | H | G | R | A | B | C | kg | ||||
| 60QSPK | 20 ~60 | N60QSPK | N6QSPK | 2 ~6 | PI 60QSPK | 20 ~60 lbf•in | 6.35 (1/4”) | 174 | 19.5 | 7.5 | 12.5 | 18.2 | 9.6 | 15 |
0.17 |
| 120QSPK | 40 ~120 | N120QSPK | N12QSPK | 4 ~12 | PI 120QSPK | 40 ~120 lbf•in | |||||||||
| 250QSPK | 50 ~250 | N250QSPK | N25QSPK | 5 ~25 | PI 230QSPK | 70 ~230 lbf•in | 9.53 (3/8”) | 220 | 25 | 12 | 16 | 0.25 | |||
| 500QSPK | 100 ~500 | N500QSPK | N50QSPK | 10 ~50 | PI 450QSPK | 100 ~450 lbf•in | 240 | 25 | 11.4 | 20 | 0.38 | ||||
| 1000QSPK | 200 ~1000 | N1000QSPK | N100QSPK | 20 ~100 | PI 900QSPK | 200 ~900 lbf•in | 12.7 (1/2”) | 340 | 31 | 14 | 19.7 | 27.5 | 12.4 | 21.7 |
0.64 |
| 1400QSPK | 400 ~1400 | N1400QSPK | N140QSPK | 40 ~140 | PI 1400QSPK | 400 ~140 lbf•in | 380 | 0.7 | |||||||
| 2000QSPK | 400 ~2000 | N2000QSPK | N200QSPK | 40 ~200 | PI 1800QSPK | 400 ~1800 lbf•in | 463.5 | 33 | 23 | 34 | 15.4 | 27.2 |
1.35 | ||
| 2800QSPK | 600 ~2800 | N2800QSPK | N280QSPK | 60 ~280 | PI 2800QSPK | 600 ~2800 lbf•in | 19.05 (3/4”) | 664 | 42 | 20 | 1.75 | ||||
| 4200QSPK | 600 ~4200 | N4200QSPK | N420QSPK | 60 ~420 | PF 300QSPK | 50 ~30 lbf•ft | 935 | 42 | 27.5 | 38 | 16 | 30 | 3.5 | ||
| แบรนด์สินค้า | KANON |
|---|
