SERIES 422 | Blade Micrometers — Non-rotating Spindle Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 13,875.76
พร้อมส่ง
SKU
1MIT-BLM-QMX-422
• The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
• Carbide-tipped measuring faces are available.
• Non-rotating spindle type.
• Equipped with Ratchet
Quickmike type
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Remark |
| 422-230-30 | 0 - 25 | 0.001 | ±3 | 3 | Type A |
| 422-231-30 | 25 - 50 | ||||
| 422-232-30 | 50 - 75 | ||||
| 422-233-30 | 75 - 100 | ±4 | 4 | ||
| 422-260-30 | 0 - 25 | ±3 | 3 | Type B | |
| 422-261-30 | 25 - 50 | ||||
| 422-270-30 | 0 - 25 | Type C | |||
| 422-271-30 | Type D |
Inch/Metric
| Order No. | Range (in) |
Resolution | Maximum permissible error JMPE (in) |
Parallelism (in) |
Remark |
| 422-330-30 | 0 - 1 | 0.00005 in/ 0.001 mm |
±0.00015 | 0.00015 | Type A |
| 422-331-30 | 1 - 2 | ||||
| 422-332-30 | 2 - 3 | ||||
| 422-333-30 | 3 - 4 | ±0.0002 | 0.0002 | ||
| 422-360-30 | 0 - 1 | ±0.00015 | 0.00015 | Type B | |
| 422-361-30 | 1 - 2 | ||||
| 422-370-30 | 0 - 1 | Type C | |||
| 422-371-30 | Type D |
Metric - Quickmike type
| Order No. | Range (mm) |
Resolution |
Maximum permissible error JMPE (µm) |
Parallelism (µm) |
Remark |
| 422-411-20 | 0 - 30 | 0.001 | ±3 | 3 | Type A |
| 422-412-20 | 25 - 55 |
Inch/Metric - Quickmike type
| Order No. | Range (in) |
Resolution | Maximum permissible error JMPE (in) |
Parallelism (in) |
Remark |
| 422-421-20 | 0 - 1.2 | 0.00005 in/ 0.001 mm |
±0.00015 | 0.00015 | Type A |
| 422-422-20 | 1 - 2.2 |
Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 2.4 years under normal use (for 422-2XX, 3XX)
Approx. 5 years under normal use (for 422-4XX)
• Position detection method: Electromagnetic rotary sensor (for 422-2XX, 3XX)
Electrostatic capacity absolute sensor (for 422-4XX)
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm/0 to 30 mm (0 to 1 in/0 to 1.2 in)
models), Spanner (301336), 1 pc. (for 422-2XX, 3XX)
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

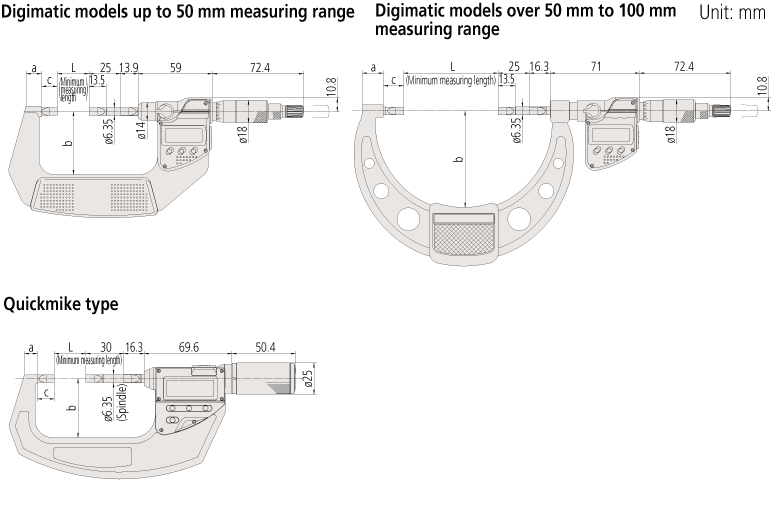

| Order No. | L | a | b | c |
| 422-230-30 | 0 | 11 | 31 | 12.5 |
| 422-231-30 | 25 | 12.2 | 50 | 12.6 |
| 422-232-30 | 50 | 14.6 | 57 | 13 |
| 422-233-30 | 75 | 16.7 | 76 | 16 |
| 422-260-30 | 0 | 11 | 31 | 12.5 |
| 422-261-30 | 25 | 12.2 | 50 | 12.6 |
| 422-270-30 | 0 | 11 | 31 | 12.5 |
| 422-271-30 | ||||
| 422-411-30 | 8.5 | 36 | 13.5 | |
| 422-412-20 | 25 | 10.3 | 47 |
