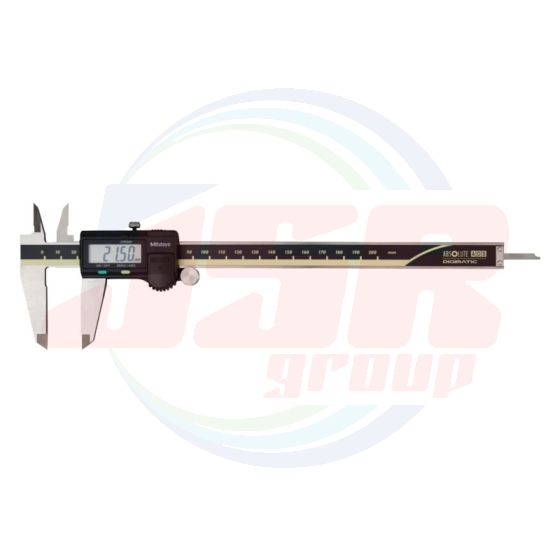

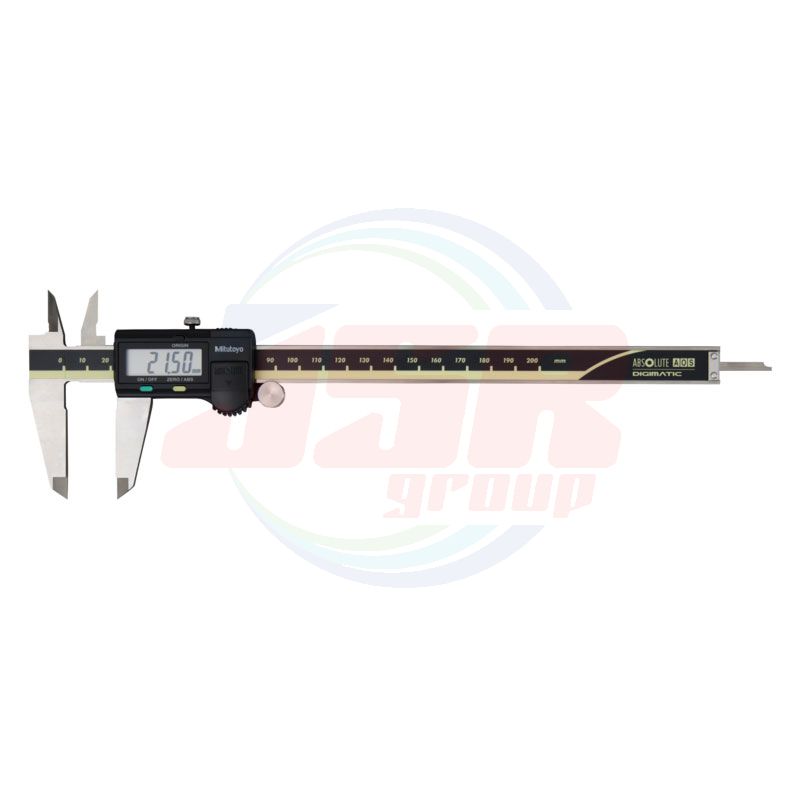

SERIES 500 | ABSOLUTE Digital Caliper | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 16,627.80
พร้อมส่ง
SKU
1MIT-DC-S500
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ



This digimatic caliper allows you to take reliable measurements and offers you the following benefits:

  • AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
  • Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
  • ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
SERIES 500 | ABSOLUTE Digital Caliper | MITUTOYO
SERIES 500 | ABSOLUTE Digital Caliper | MITUTOYO

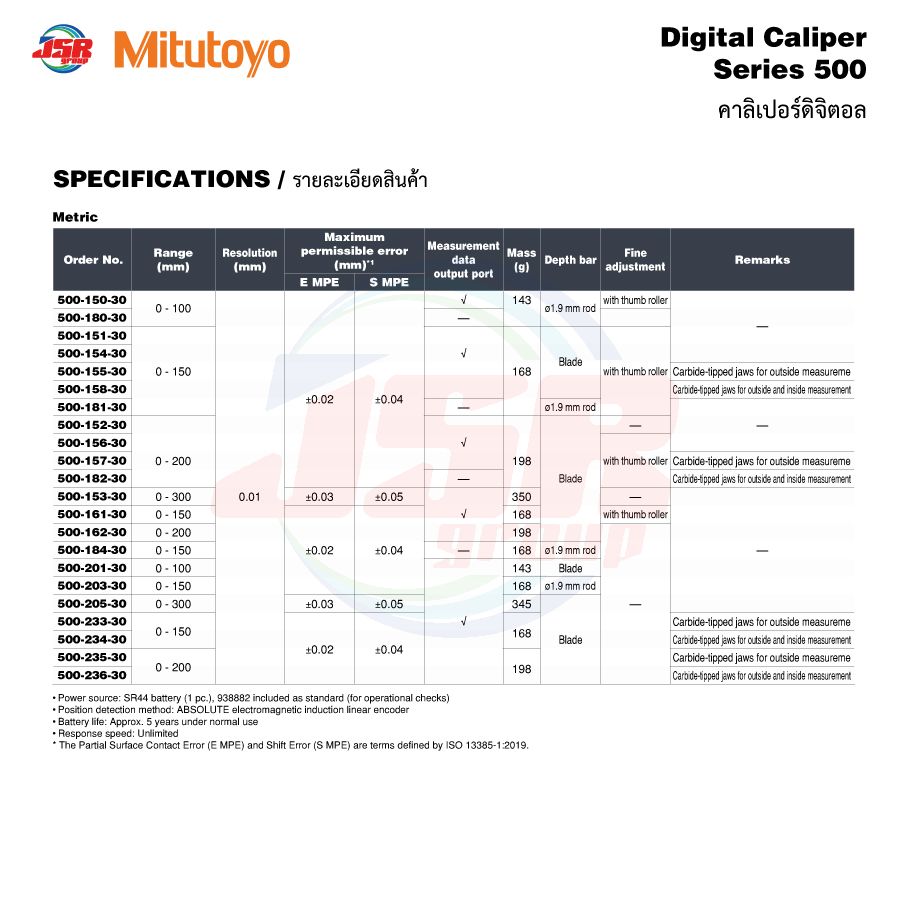

SPECIFICATIONS

Metric

Code No. Range
(mm)		 Resolution
(mm)		 Maximum permissible error (mm)* Measurement
data output port 		Mass
(g)		 Depth bar Fine
adjustment		 Remarks
E MPE S MPE
500-150-30 0 - 100 0.01     ✔ 143 ø1.9 mm rod with
thumb roller		 —
500-180-30 — —
500-151-30 0 - 150 ✔ 168 Blade with
thumb roller
500-154-30 Carbide-tipped jaws for
outside measurement
500-155-30 Carbide-tipped jaws
for outside and inside
measurement
500-158-30 ø1.9 mm rod —
500-181-30 — Blade —
500-152-30 0 - 150 ✔ 198 with
thumb roller
500-156-30 Carbide-tipped jaws for
outside measurement
500-157-30 Carbide-tipped jaws
for outside and inside
measurement
500-182-30 — — —
500-153-30 0 - 300     ✔ 350 with
thumb roller
500-161-30 0 - 150     168
500-162-30 0 - 200 198
500-184-30 0 - 150 — 168 ø1.9 mm rod
500-201-30 0 - 100 ✔ 143 Blade
500-203-30 0 - 150 168 ø1.9 mm rod
500-205-30 0 - 300     345 Blade
500-233-30 0 - 150     168 Carbide-tipped
jaws for outside
measurement
500-234-30 Carbide-tipped jaws
for outside and
inside measurement
500-235-30 0 - 200 198 Carbide-tipped
jaws for outside
measurement
500-236-30 Carbide-tipped jaws
for outside and
inside measurement

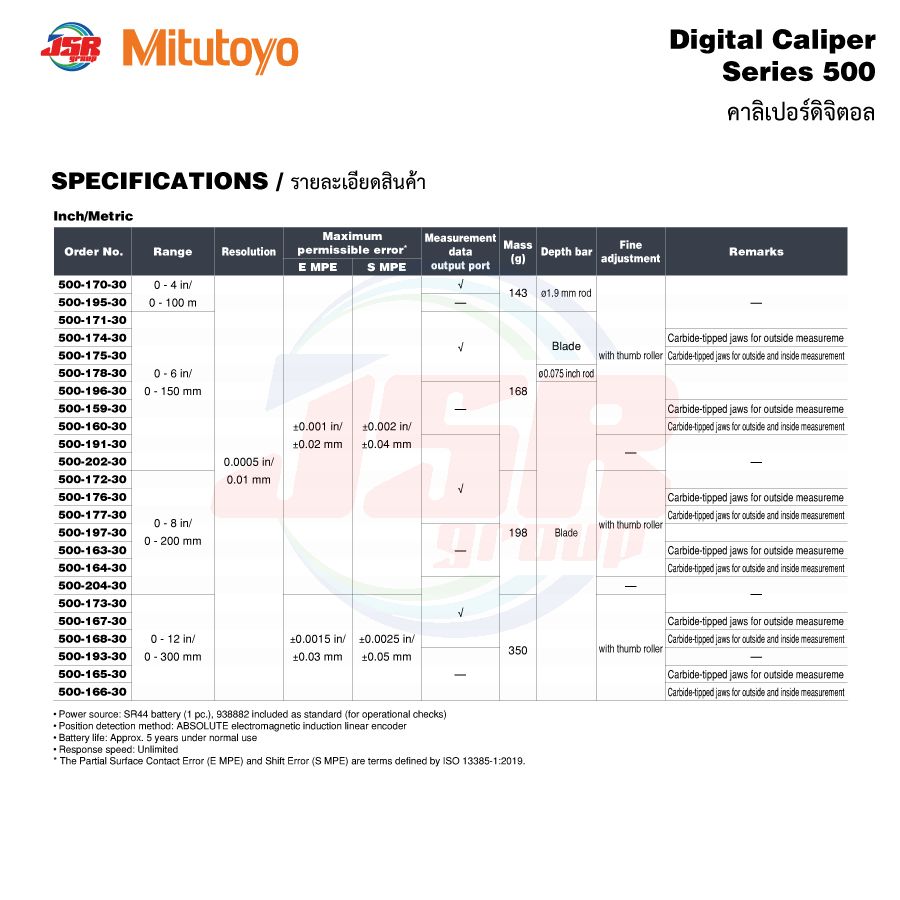

Inch/Metric

Code No. Range
(mm)		 Resolution
(mm)		 Maximum permissible error (mm)* Measurement
data output port 		Mass
(g)		 Depth bar Fine
adjustment		 Remarks
E MPE S MPE
500-170-30 0 - 4 in/
0 - 100 mm		 0.0005 in/
0.01 mm		 ±0.001 in/
±0.02 mm		 ±0.002 in/
±0.04 mm		 ✔ 143 ø0.075 inch rod with
thumb roller		 —
500-195-30 —
500-171-30 0 - 6 in/
0 - 150 mm		 ✔ 168 Blade
500-174-30 Carbide-tipped jaws for
outside measurement
500-175-30 Carbide-tipped jaws
for outside and inside
measurement
500-178-30 ø0.075 inch rod —
500-196-30 — Blade
500-159-30 Carbide-tipped jaws for
outside measurement
500-160-30 Carbide-tipped jaws
for outside and inside
measurement
500-191-30 ✔ — —
500-202-30
500-172-30 0 - 8 in/
0 - 200 mm		 198 with
thumb roller
500-176-30 Carbide-tipped jaws for
outside measurement
500-177-30 Carbide-tipped jaws
for outside and inside
measurement
500-197-30 — —
500-163-30 Carbide-tipped jaws for
outside measurement
500-164-30 Carbide-tipped jaws
for outside and inside
measurement
500-204-30 ✔ — —
500-173-30 0 - 12 in/
0 - 300 mm		 ±0.0015 in/
±0.03 mm		 ±0.0025 in/
±0.05 mm		 350 with
thumb roller
500-167-30 Carbide-tipped jaws for
outside measurement
500-168-30 Carbide-tipped jaws
for outside and inside
measurement
500-193-30 — —
500-165-30 Carbide-tipped jaws for
outside measurement
500-166-30 Carbide-tipped jaws
for outside and inside
measurement

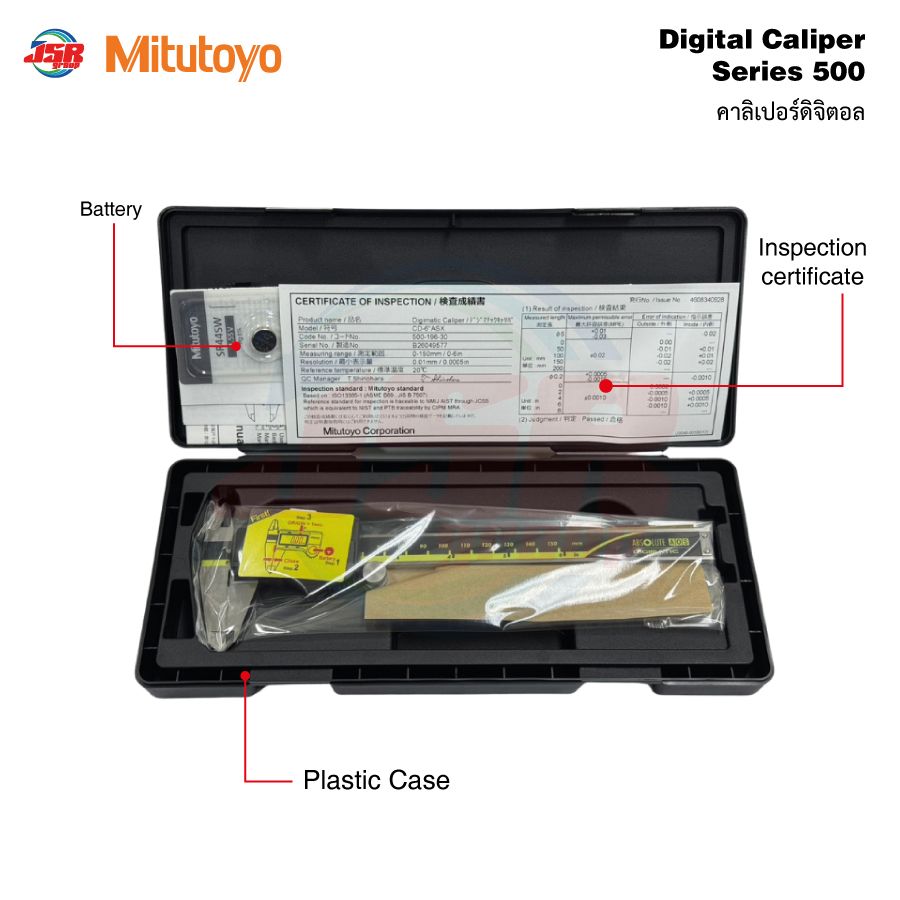

• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detectionmethod: ABSOLUTE electromagnetic induction linear encoder
• Battery life: Approx. 5 years under normal use
• Response speed: Unlimited
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.

More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

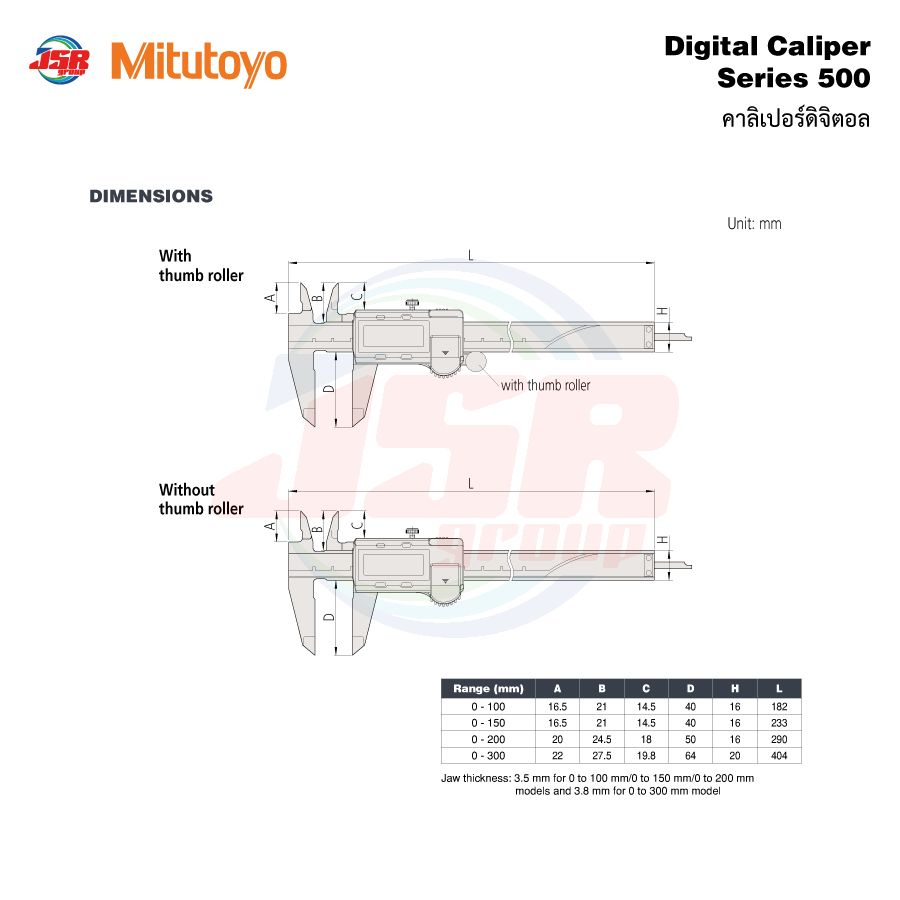

Dimension
