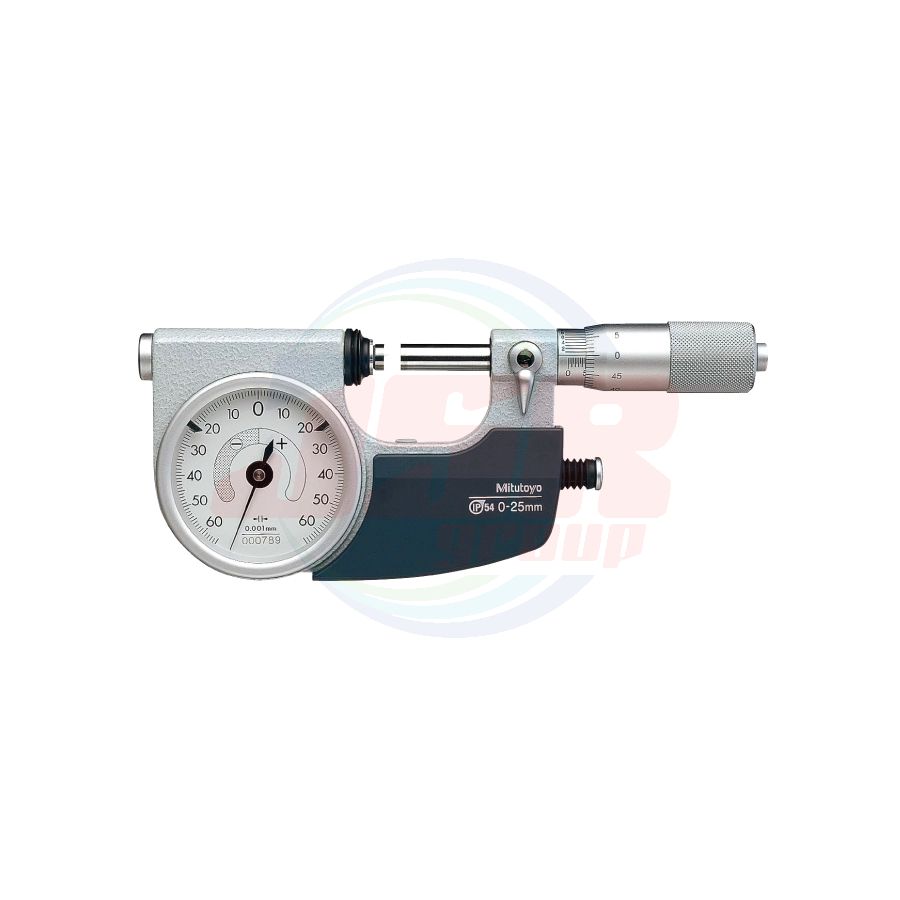

510-121 | Indicating Micrometers SERIES 510 - Right side | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 10,553.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
510-121
QTY:
11

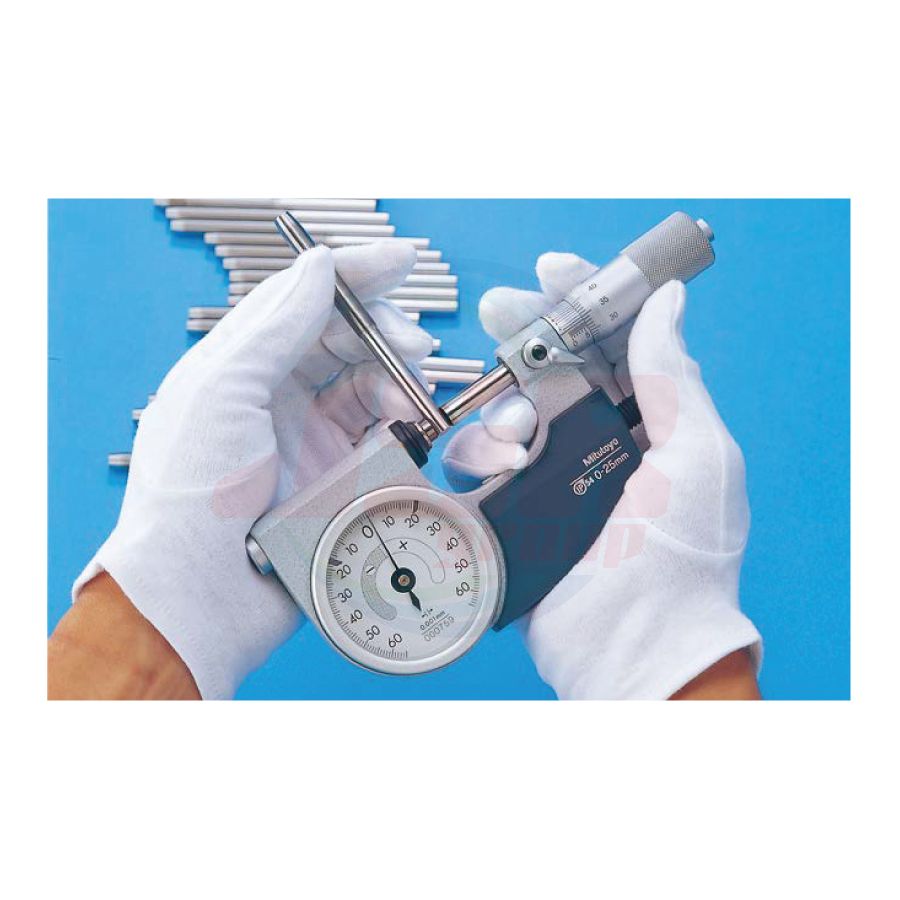

• The micrometer with a built-in dial indicator enables accurate Go/No-go judgement without interruption. Pushing the retractable anvil button causes the anvil and pointer to move, enabling speedy measurements.
• Easy to use when operating one-handed due to retractable anvil.
• In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
• Greatly improved accuracy: indication error and graduation of 1 μm.
• IP protection level: 54, coolant-splash resistant during grinding process.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Dial |
| Order No. | 510-121 (IDM-25R) |
| Range | 0 - 25 mm |
| Spindle feed error | 3 µm |
| Flatness | 0.3 µm |
| Parallelism | 0.6 µm |
| Dispersion of indication | 0.4 µm |
| Dial indication accuracy | 1 µm |
| Indicating range | ±0.06 mm |
| Graduation | 0.001 mm |
| Dial graduation | 0.001 mm |
| Measuring force (N) | 5 - 10 |
| Anvil retraction button | Right side |
| Mass | 520 g |
เขียนรีวิวสินค้าของคุณเอง
