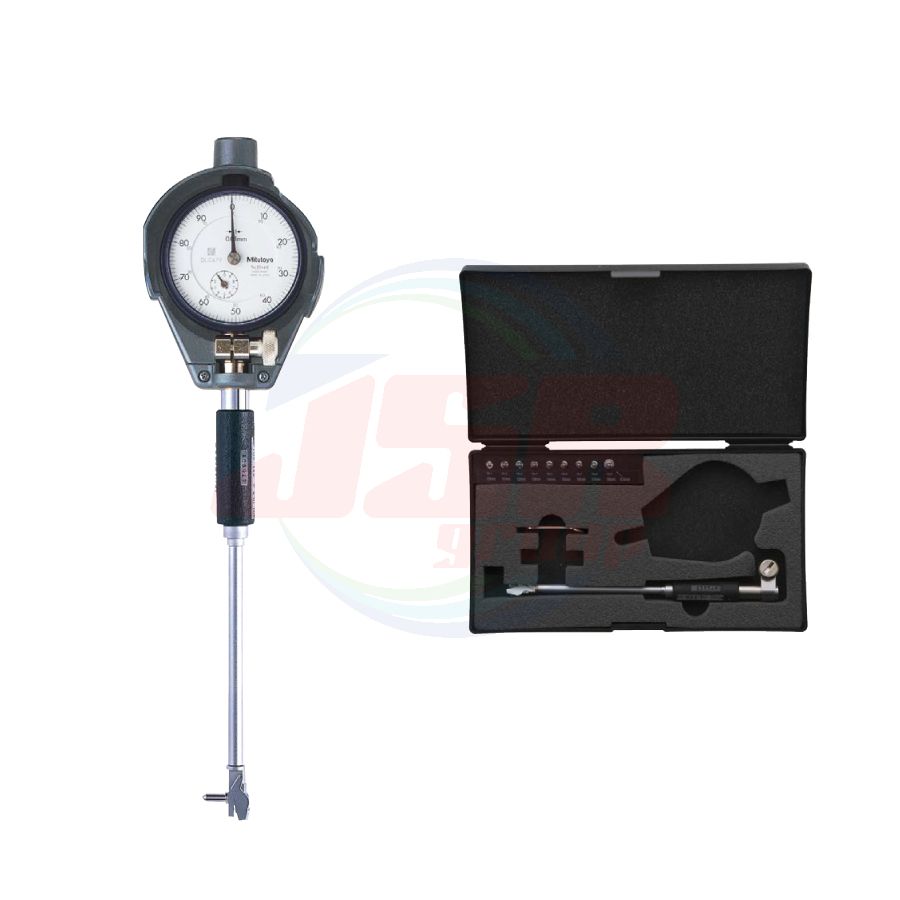

511-209 | Bore Gages SERIES 511 — for Small Holes | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,447.66
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
511-209
QTY:
4
• This bore gage is designed to measure the diameters of very small holes.
• The dial indicator is optional. Refer to page 08-52 for recommended indicators.
• Customized products with a longer rod below the grip or with a carbide anvil are available upon request.
• An optional setting ring is available for accurately setting the gage before measuring.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Stroke of contact point (mm) |
Accuracy* (μm) |
Repeatability* (μm) |
Adjacent error* (μm) |
Measuring force (N) |
Guide force (N) |
| 511-209 | 6 - 10 | 0.5 | 5 | 2 | 2 | 2 or less | — |
| 511-201 | 10 - 18.5 | 0.6 | 6 or less | ||||
| 511-210-20 | 6 - 10 | 0.5 | 5 | 2 | 2 | 2 or less | — |
| 511-203-20 | 10 - 18.5 | 0.6 | 6 or less | ||||
| 511-211-20 | 6 - 10 | 0.5 | 5 | 2 | 2 | 2 or less | — |
| 511-204-20 | 10 - 18.5 | 0.6 | 6 or less |
| Order No. | Content of set | Probing depth (mm) |
||||
| Bore gage | Dial indicator | Dial protection cover | Anvil | Interchangeable Washer | ||
| 511-209 | 511-209 | Not supplied | Not supplied | 9 pcs. | Not supplied | 50 |
| 511-201 | 511-201 | 1 pc. | 100 | |||
| 511-210-20 | 511-209 | 2109AB-10 (Graduation: 0.001 mm) |
21DZA000 | 9 pcs. | Not supplied | 50 |
| 511-203-20 | 511-201 | 1 pc. | 100 | |||
| 511-211-20 | 511-209 | 2046AB (Graduation: 0.01 mm) |
21DZA000 | 9 pcs. | Not supplied | 50 |
| 511-204-20 | 511-201 | 1 pc. | 100 | |||
* Accuracy of the bore gage alone.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order no. | 511-209 (CG-S10A) |
| Stroke of contact point | 0.5 mm |
| Accuracy | 5 μm |
| Repeatability | 2 μm |
| Adjacent error | 2 μm |
| Measuring force (N) | 2 or less |
| Guide force (N) | - |
| Bore gage | 511-209 |
| Dial indicator | Not supplied |
| Dial protection cover | Not supplied |
| Anvil | 9 pcs. |
| Interchangeable Washer | Not supplied |
| Probing depth | 50 mm |

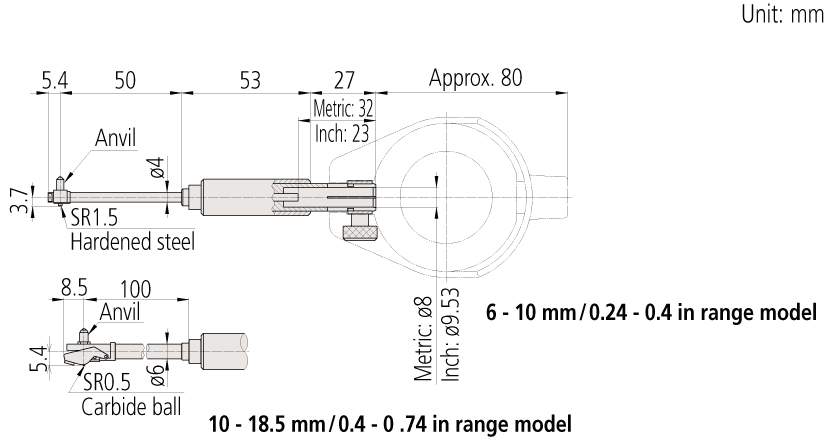

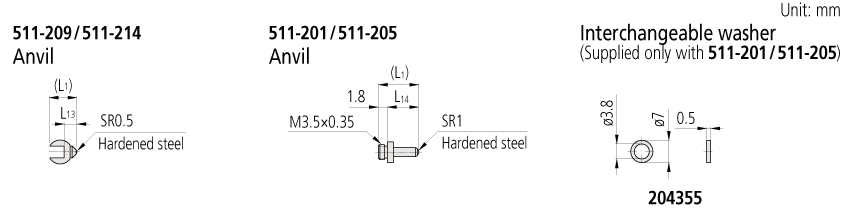

STANDARD ACCESSORIES
| Bore gage (Main body) |

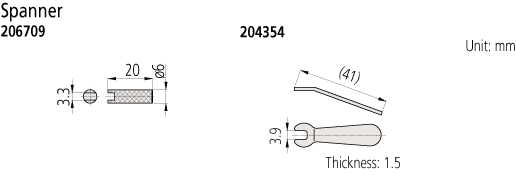

Anvil | Interchangeable Washer | Spanner | ||||
| Marked No. | Code No. | Indication of measuring size |
L1 | L13 | Code No. | Code No. | |
| 511-209 511-214 |
1 | 952168 | 6.0 mm/0.24 in | 4.7 | 1.2 | Not supplied | 206709 |
| 2 | 952169 | 6.5 mm/0.26 in | 5.3 | 1.7 | |||
| 3 | 952170 | 7.0 mm/0.28 in | 5.8 | 2.2 | |||
| 4 | 952414 | 7.5 mm/0.30 in | 6.3 | 2.7 | |||
| 5 | 952415 | 8.0 mm/0.32 in | 6.8 | 3.2 | |||
| 6 | 952416 | 8.5 mm/0.34 in | 7.3 | 3.7 | |||
| 7 | 952417 | 9.0 mm/0.36 in | 7.8 | 4.2 | |||
| 8 | 952418 | 9.5 mm/0.38 in | 8.3 | 4.7 | |||
| 9 | 952419 | 10.0 mm/0.40 in | 8.8 | 5.2 | |||
| Bore gage (Main body) |
Anvil | Interchangeable Washer | Spanner | ||||
| Marked No. | Code No. | Indication of measuring size |
L1 | L14 | Code No. | Code No. | |
| 511-201 511-205 |
1 | 204356 | 10 mm/0.40 in | 3.8 | 2 | 204355 | 204354 |
| 2 | 204357 | 11 mm/0.44 in | 4.8 | 3 | |||
| 3 | 204358 | 12 mm/0.48 in | 5.8 | 4 | |||
| 4 | 204359 | 13 mm/0.52 in | 6.8 | 5 | |||
| 5 | 204360 | 14 mm/0.56 in | 7.8 | 6 | |||
| 6 | 204361 | 15 mm/0.60 in | 8.8 | 7 | |||
| 7 | 204362 | 16 mm/0.64 in | 9.8 | 8 | |||
| 8 | 204363 | 17 mm/0.68 in | 10.8 | 9 | |||
| 9 | 204364 | 18 mm/0.72 i | 11.8 | 10 | |||
