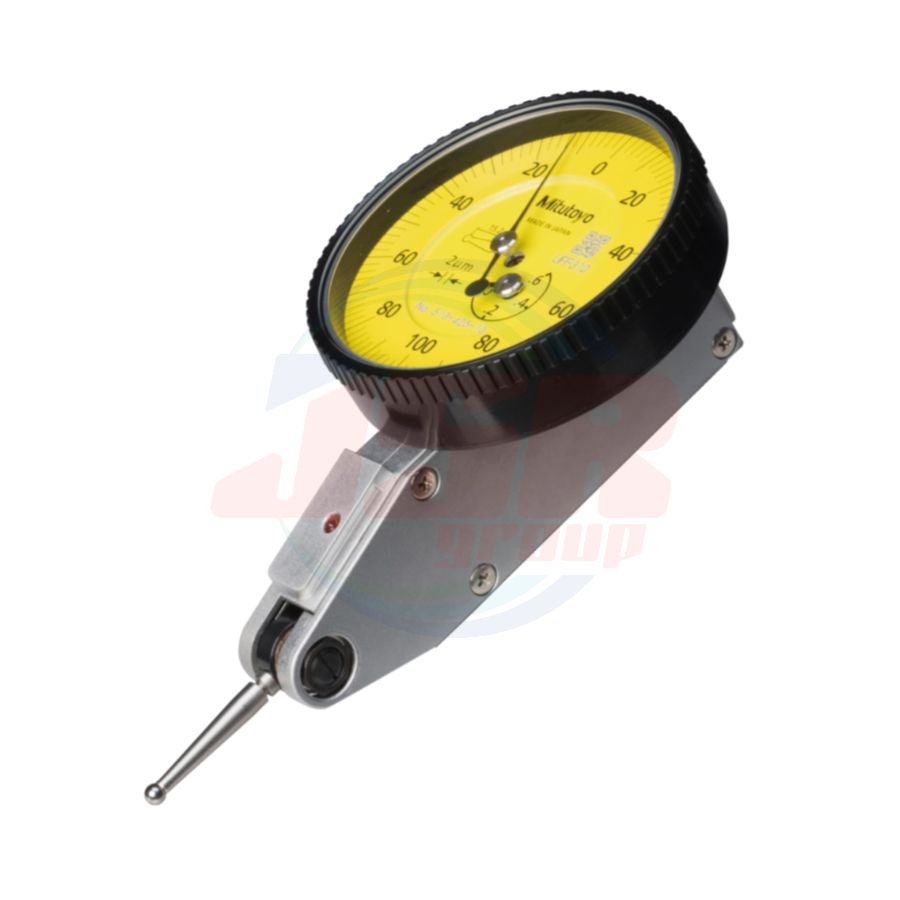

513-425-10A | Dial Test Indicator SERIES 513 — Standard Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,583.18
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
513-425-10A
QTY:
0
 |
 |
 |
||
| Graduation: 0.01 mm Range: 0.8 mm |
Graduation: 0.01 mm Range: 0.5 mm |
|||
513-404-10E/10A/10T |
513-424-10E/10A/10T |
|||
 Standard |
Standard |
|||
 Carbide contact point |
 Double scale spacing |
|||
| Carbide contact point |
||||
 |
 |
 |
||
| Graduation: 0.01 mm Range: 0.5 mm |
Graduation: 0.01 mm Range: 1.0 mm |
|||
513-414-10E/10A/10T |
513-415-10E/10A/10T |
|||
 Long contact point |
Long contact point |
|||
| Carbide contact point |
Carbide contact point |
|||
| Double scale spacing |
||||
 |
 |
 |
||
| Graduation: 0.002 mm Range: 0.2 mm |
Graduation: 0.002 mm Range: 0.6 mm |
|||
513-405-10E/10A/10T |
513-425-10E/10A |
|||
| Standard |
 With revolution counter |
|||
| Carbide contact point |
Carbide contact point |
|||
 |
 |
|||
| Graduation: 0.002 mm Range: 0.2 mm |
Graduation: 0.001 mm Range: 0.14 mm |
|||
513-465-10E |
513-401-10E |
|||
 Compact |
 High accuracy |
|||
| Carbide contact point |
Carbide contact point |
Note: 513-4XX-10 is indicated on the dial face and the inspection certificate.
The code No. with suffix (E /T / A) is a set item which includes accessories. The main unit is not available as a standalone item.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 513-425-10A (TI-152AX) |
| SET-DIAL-TEST | Plus set |
| Graduation | 0.002 mm |
| Range | 0.6 mm |
| Dial reading | 0-100-0 |
| MPE measuring range | 7 μm |
| MPE One rev. | 5 μm |
| MPE 10 scale divisions | 2 μm |
| MPE Hysteresis | 4 μm |
| MPE Repeatability | 1 μm |
| Measuring force (N) | 0.4 or less |
| High accuracy | No |
| With revolution counter | Yes |
| Long contact point | No |
| Standard | No |
| Double scale spacing | No |
| Compact | No |
| Dustproof | No |
| Carbide contact point | Yes |
| Ruby contact point | No |
| Order No. | L1 | L2 | L3 |
| 513-401-10E | 14.7 | 11.2 | 27 |
| 513-471-10E | |||
| 513-405-10E/A/T | 18.7 | 15.2 | |
| 513-475-10E | |||
| 513-425-10E/A | 28 | ||
| 513-404-10E/A/T | 20.9 | 17.4 | 27 |
| 513-474-10E | |||
| 513-424-10E/A/T | 22.2 | 18.7 | |
| 513-426-10E/A | 28 | ||
| 513-478-10E | 27 | ||
| 513-414-10E/A/T | 37.4 | 33.9 | |
| 513-415-10E/A/T | 44.5 | 41.0 | |
| 513-477-10E |
| Type | Order No. | L1 | L2 |
| Compact | 513-465-10E | 18.7 | 15.2 |
| 513-464-10E | 20.9 | 17.4 | |
| 513-466-10E | 22.2 | 18.7 |
