513-486-10E | Dial Test Indicator SERIES 513 — Horizontal Types | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาพิเศษ THB 0.00 ราคาปรกติ THB 2,694.39
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
513-486-10E
QTY:
10
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

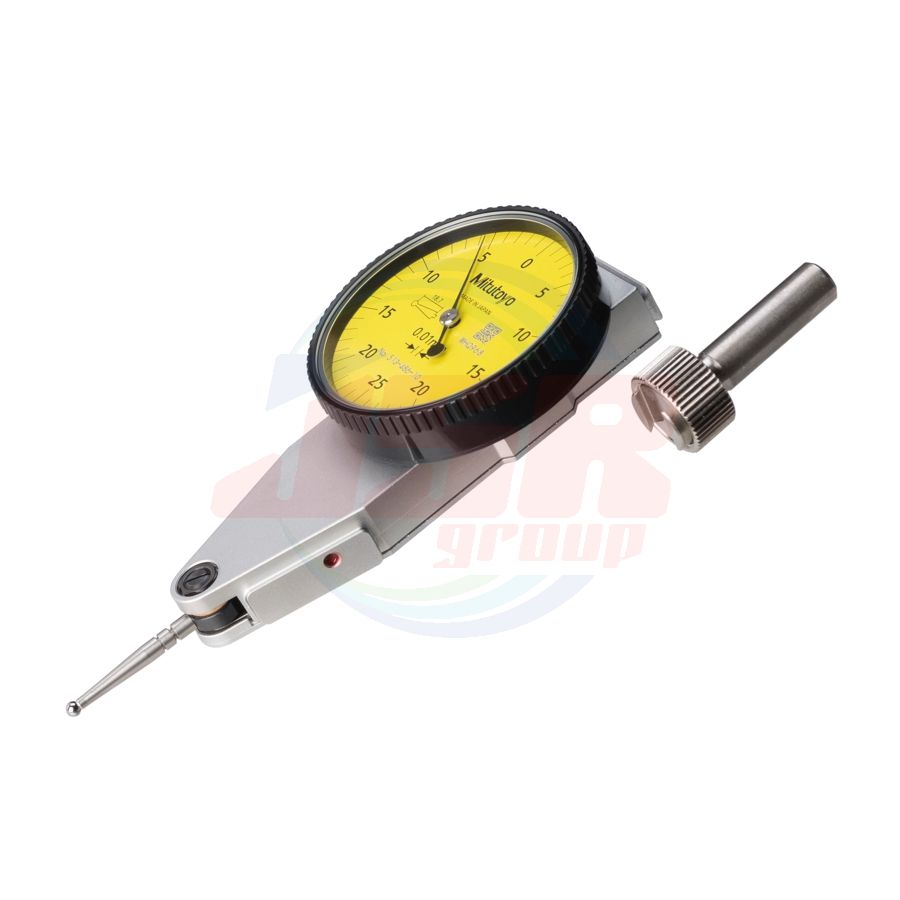

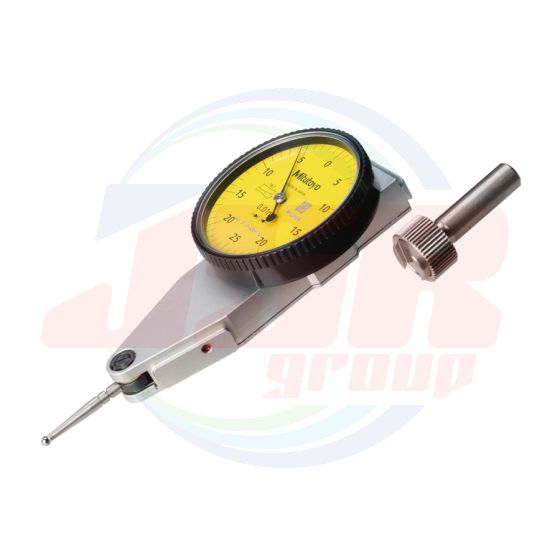

513-486-10E | Dial Test Indicator SERIES 513 — Horizontal Types | MITUTOYO
513-486-10E | Dial Test Indicator SERIES 513 — Horizontal Types | MITUTOYO 513-486-10E | Dial Test Indicator SERIES 513 — Horizontal Types | MITUTOYO





  Carbide contact point
  Graduation: 0.01 mm
Range: 0.8 mm



With revolution counter

Carbide contact point
  Graduation: 0.01mm
Range: 1.6mm



With revolution counter

Carbide contact point
  Graduation: 0.002 mm
Range: 0.4 mm

  Carbide contact point
  Graduation: 0.01 mm
Range: 0.8 mm

  Carbide contact point
  Graduation: 0.002 mm
Range: 0.2 mm

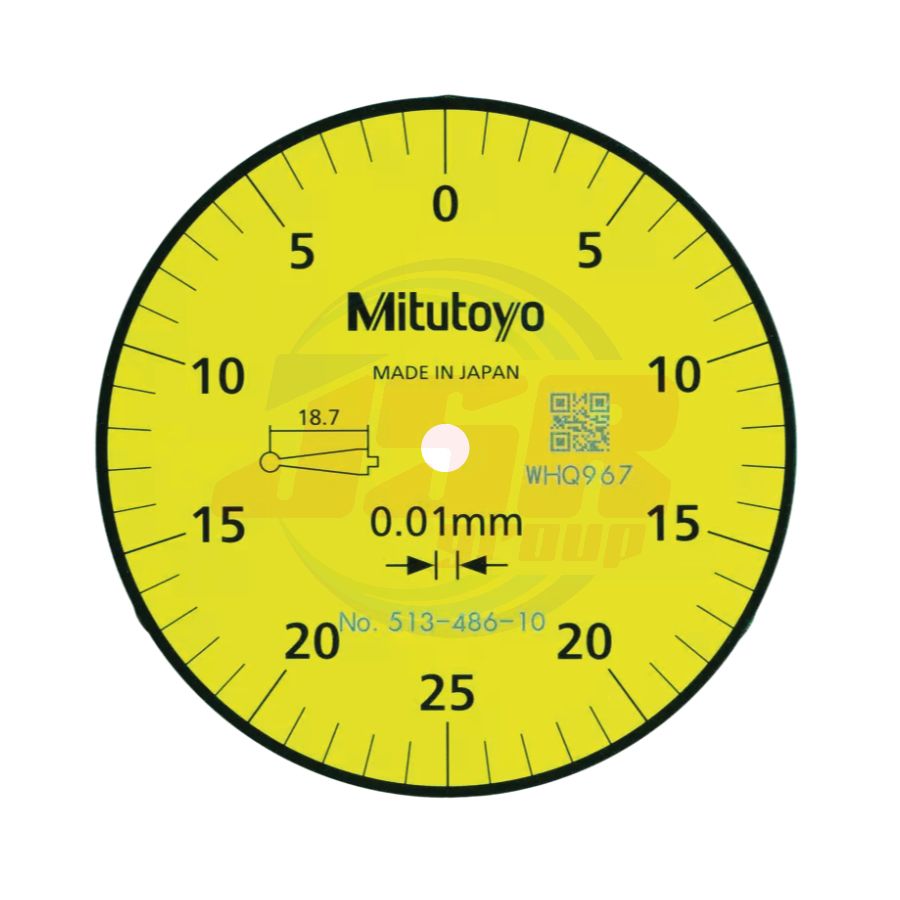

Note: 513-4XX-10 is indicated on the dial face and the inspection certificate.
The code No. with suffix (E /A/ T) is a set item which includes accessories. The main unit is not available as a standalone item.





More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
Inch-Metric Metric
Order No. 513-486-10E (TI-333EX)
SET-DIAL-TEST Basic set
Graduation 0.01 mm
Range 0.5 mm
Dial reading 0-25-0
MPE measuring range 6 μm
MPE One rev. -
MPE 10 scale divisions 5 μm
MPE Hysteresis 4 μm
MPE Repeatability 3 μm
Measuring force (N) 0.3 or less
High accuracy No
With revolution counter No
Long contact point No
Standard No
Double scale spacing No
Compact No
Dustproof No
Carbide contact point Yes
Ruby contact point No
SPECIFICATIONS

Metric _______ Standard (20° tilted face) type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-444-10E 513-444-10A 513-444-10T 0.01 1.6 0-40-0 16 10 5 5 3 48 0.3 or less √   √
513-445-10E 513-445-10A 513-445-10T 0.002 0.4 0-100-0 6 5 2 4 1 √   √



Metric _______ Vertical type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-456-10E — — 0.01 0.5 0-25-0 6 — 5 4 3 46 0.3 or less     √
513-454-10E 513-454-10A 513-454-10T 0.8 0-40-0 9 —     √
513-455-10E 513-455-10A 513-455-10T 0.002 0.2 0-100-0 4 — 2 3 1     √



Metric _______ Horizontal type

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)*1 (μm) Mass (g) Measuring force (N) With revolution counter Long contact point Carbide contact point
Basic set Plus set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-486-10E — — 0.01 0.5 0-25-0 6 - 5 4 3 53 0.3 or less     √
513-484-10E 513-484-10A 513-484-10T 0.8 0-40-0 9 -     √
513-485-10E — — 0.002 0.2 0-100-0 4 - 2 3 1     √



* Standard (20° Tilted Face) Type, Vertical Type: We guarantee the accuracy of completed products by inspecting them with the dial face facing upward.
Horizontal Type: We guarantee the accuracy of completed products by inspecting them with the dial face vertical.

Note: 513-4XX-1X is indicated on the dial face and the inspection certificate.
The code No. with suffix (E /A/ T) is a set item which includes accessories. The main unit is not available as a standalone item.
Dimension



Standard (20° Tilted Face) Type

Order No. L1 L2
513-445-10E 18.7 15.2
513-444-10E 20.9 17.4





Horizontal Type

Order No. L1 L2
513-484-10E 20.9 17.4
513-485-10E 18.7 15.2
513-486-10E 22.2 18.7





Vertical Type

Order No. L1 L2
513-454-10E 20.9 17.4
513-455-10E 18.7 15.2
513-456-10E 22.2 18.7



Note: A slight difference may occur depending on the center of the contact point, graduation plate, and stem fixing position, etc.
