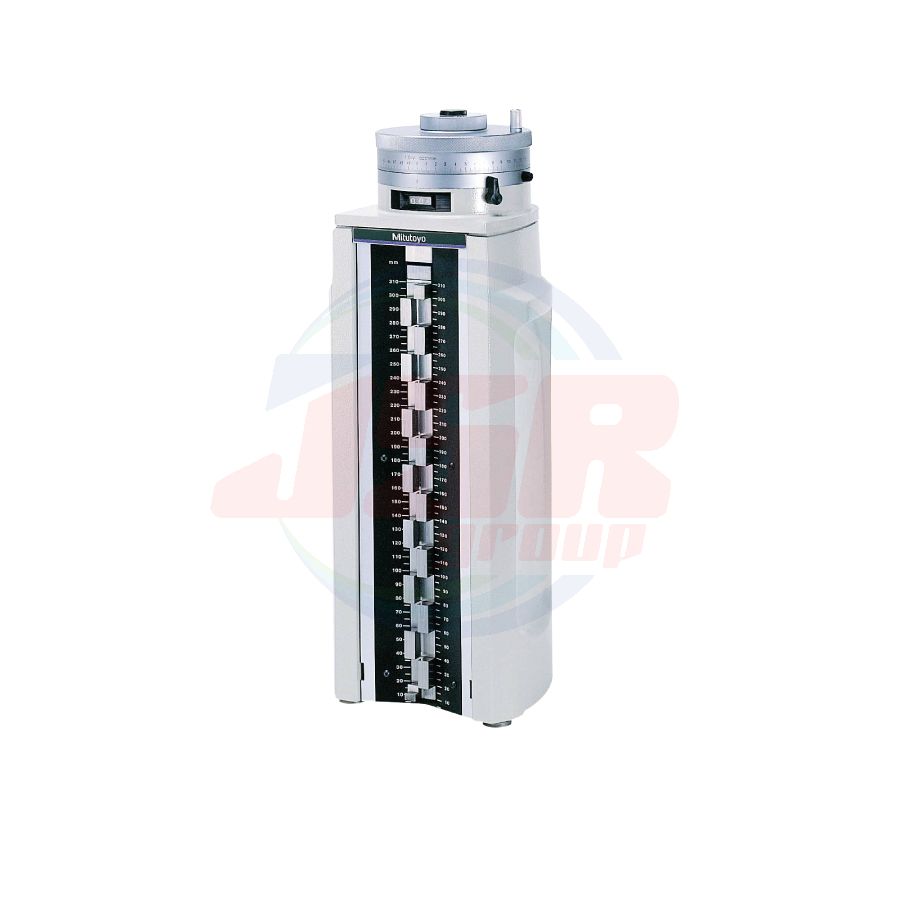

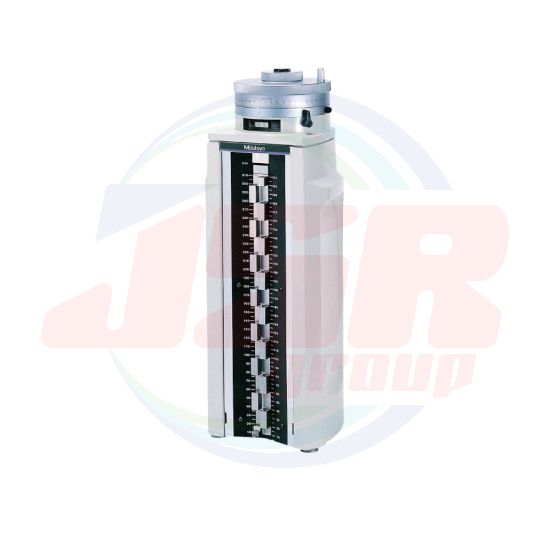

• For calibrating and setting height gages.

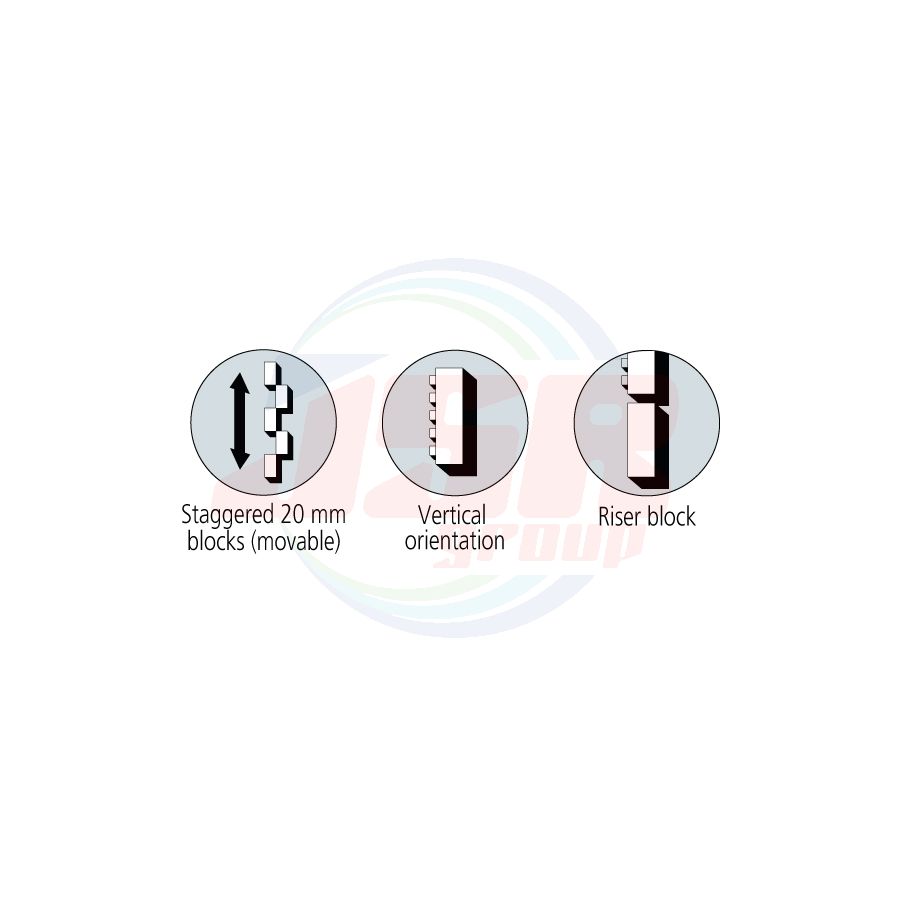

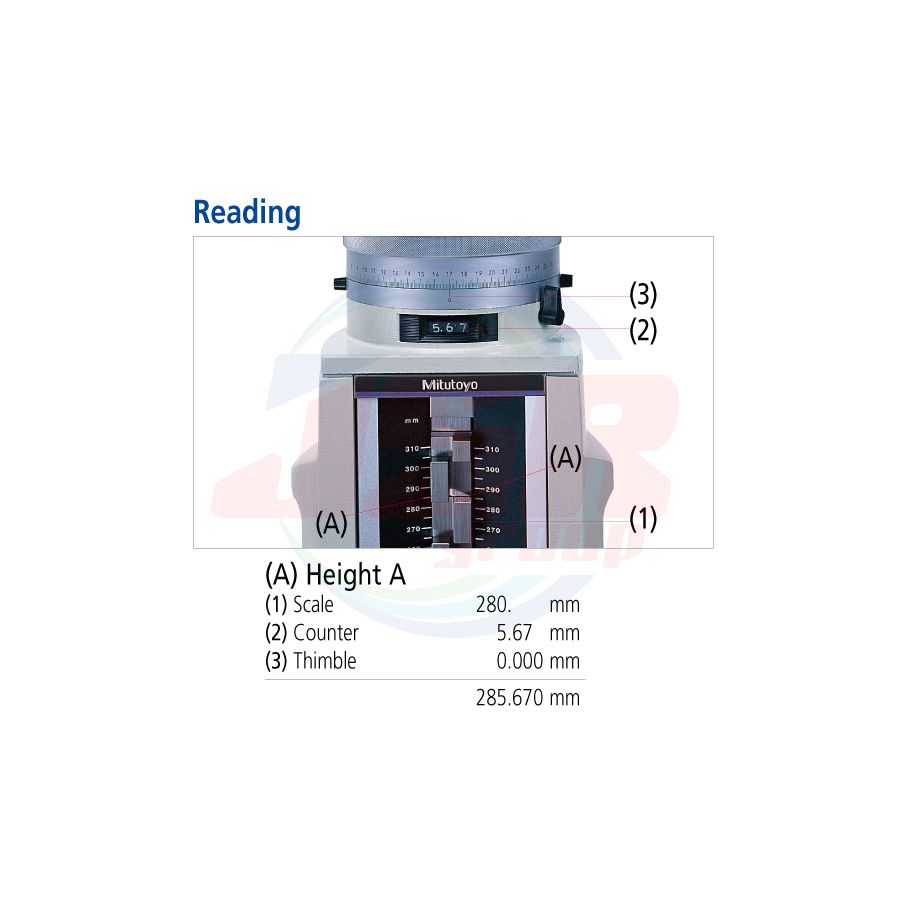

• Staggered arrangement of block stack have two measuring faces on the same level, one facing up and the other down (except for 515-310).
SPECIFICATIONS
Metric
Order No. | 515-322 |
Range (H) | 5 < H ≤ 310 mm |
Graduation (analog scale) | 0.001 mm |
Block step | 20 mm (staggered) |
Micrometer adjustment | 20 mm |
Micrometer feed | 0.5 mm/rev |
Block pitch accuracy | ±1.5 μm |
Parallelism of blocks | 1.0 μm |
Feed error | ±1.0 μm |
Retrace error | 1.0 μm |
Mass | 23 kg |
Note 1: The block pitch accuracy and the parallelism of blocks are relative to the main unit reference surface.
Note 2: Supplied with a wooden storage case as standard.
แบรนด์สินค้า | MITUTOYO |
---|---|
Order No. | 515-322 |
Range (H) | 5 < H ≤ 310 mm |
Graduation | (analog scale) 0.001 mm |
Block step | 20 mm (staggered) |
Micrometer adjustment | 20 mm |
Micrometer feed | 0.5 mm/rev |
Block pitch accuracy | ±1.5 μm |
Parallelism of blocks | 1.0 μm |
Feed error | ±1.0 μm |
Retrace error | 1.0 μm |
