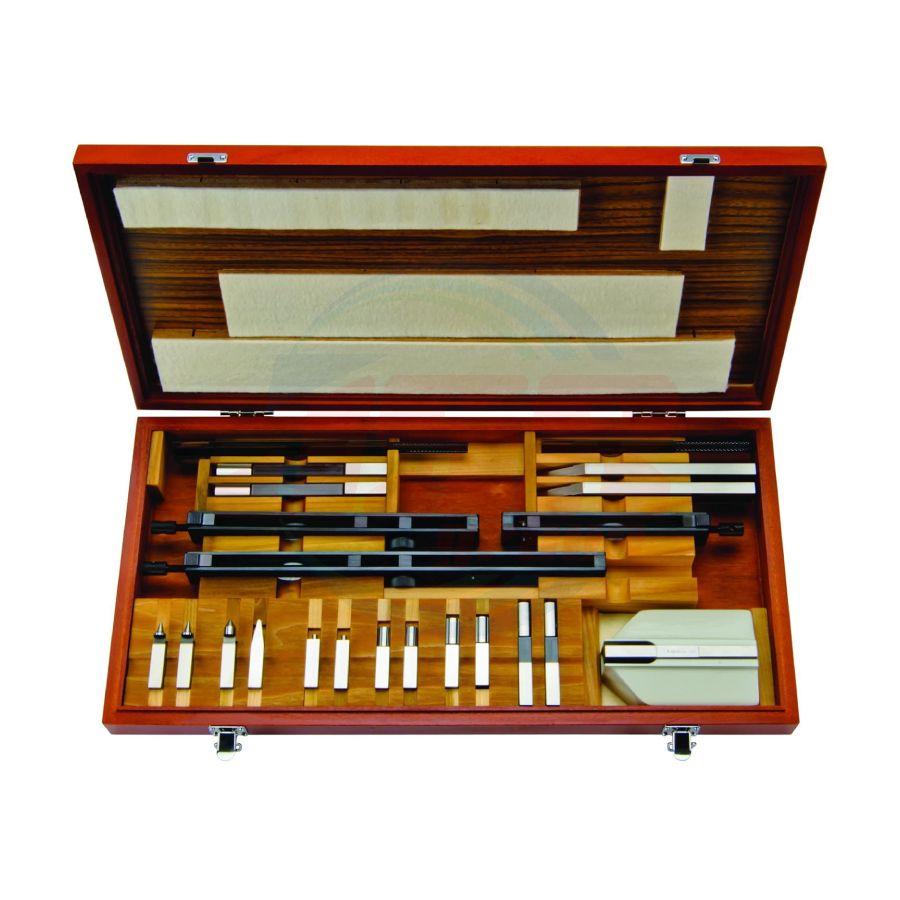

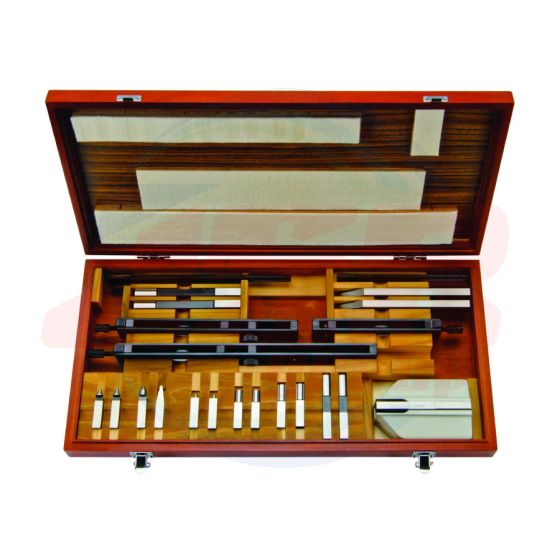

516-601 | Rectangular Gauge Block Accessories SERIES 516 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 76,168.22
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
516-601
QTY:
3
• Accessory sets for extending the range of application for rectangular gauge blocks.
• Available in 22-piece and 14-piece sets. Each accessory is also available separately for applications where a full set is not needed.
• Can be used with both steel and CERA blocks.
| Order No. | Pcs. | Item Description | Nominal capacity / dimension (mm) |
Quantity Supplied |
| 516-601 | 22 pcs. | Holder (619003) | 5 to 100 | 1 pc. |
| Holder (619004) | 15 to 160 | 1 pc. | ||
| Holder (619005) | 20 to 250 | 1 pc. | ||
| Base (619009) | 35 | 1 pc. | ||
| Half-round jaw (619010*) | 2 | One pair (2 pcs.) | ||
| Half-round jaw (619011*) | 5 | One pair (2 pcs.) | ||
| Half-round jaw (619012*) | 8 | One pair (2 pcs.) | ||
| Half-round jaw (619013*) | 12 | One pair (2 pcs.) | ||
| Half-round jaw (619014*) | 20 | One pair (2 pcs.) | ||
| Plain jaw (619018*) | 160 | One pair (2 pcs.) | ||
| Scriber point (619019) | ̶ | 1 pc. | ||
| Center point (619020) | ̶ | 1 pc. | ||
| Tram point (619021*) | ̶ | One pair (2 pcs.) | ||
| Triangular straightedge (619022) | 100 | 1 pc. | ||
| Triangular straightedge (619023) | 160 | 1 pc. |
* A single piece is supplied for each code number, except for half-round jaws, plain jaws (B type) and tram points, which are supplied as a two-pack.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 516-601 |
Holder
Base
Half-round jaws
| Code No. | Type | Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) |
| 619010* | I | 2 | 2±0.0005 | 5.5 | 40 | 7.5 |
| 619011* | 5 | 5±0.0005 | 15.5 | 45 | 7.5 | |
| 619012* | 8 | 8±0.0005 | 20 | 50 | 8.5 | |
| 619013* | II | 12 | 12±0.0005 | 25 | 75 | 13 |
| 619014* | 20 | 20±0.0005 | 25 | 125 | 20.5 |
Plain jaw (B type)
Scriber point
Center Point
Tram point
Triangular straightedge (for handheld use only)
* A single piece is supplied for each code number, except for half-round jaws, plain jaws (B type) and tram points, which are
supplied as a two-pack.
