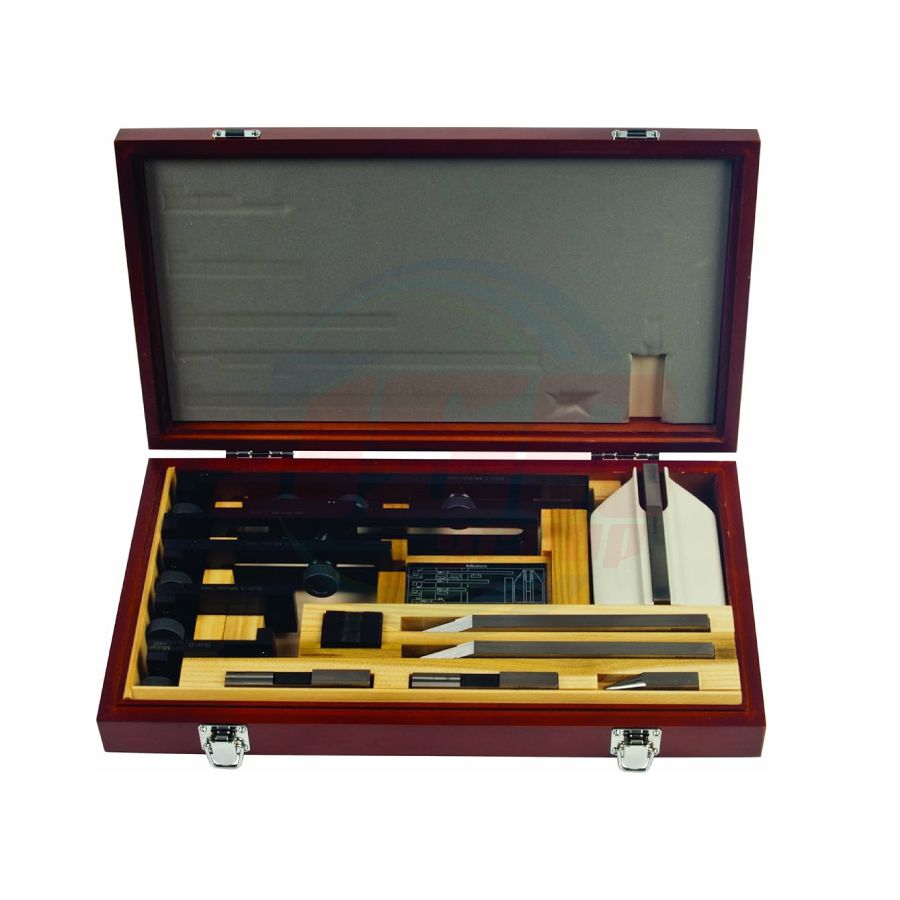

516-605 | Accessories for Rectangular Gauge Blocks over 100 mm SERIES 516 | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 55,007.63
พร้อมส่ง
SKU
516-605
• Specially designed for long rectangular gauge blocks of 100 mm and over which have two coupling holes in the body: coupling of two long gauge blocks, a stack of regular gauge blocks and attachment of jaws is possible.
• Can be used with both long steel and CERA blocks.
| Order No. | Code No. | Description | Quantity Supplied |
| 516-605 | 619031 | Connector A | 1 pc. |
| 619032 | Connector B | ||
| 619033 | Connector C | ||
| 619034 | Connector D | ||
| 619035 | Connector E | ||
| 619036 | Adapter | 3 pcs. | |
| 619009 | Base | 1 pc. | |
| 619018 | Plain jaw (B-type) | 2 pcs. | |
| 619013 | Half-round jaw | ||
| 619019 | Scriber point | 1 pc. |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 516-605 |

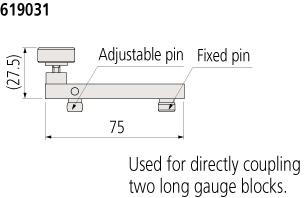

Connector A

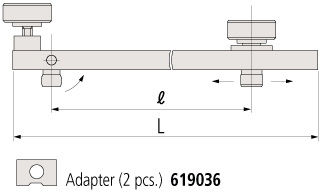

Connector B and C
| Code No. | ???? (max.) | L | Adapter Qty. | |
| 619032 | 90 | 126 | Connector B | 2 |
| 619033 | 200 | 236 | Connector C |
In addition to connecting long gauge blocks, the holders can also connect long gauge blocks with other types of gauge blocks inserted in between. Connector B is for gauge blocks with nominal size of 40 mm or less, and connector C for gauge blocks with nominal size of 150 mm or less (connector C can also be used to connect hole-less gauge blocks of 100 mm or less with various types of jaw). Adapters can be used to attach jaws on the edges of long gauge blocks.

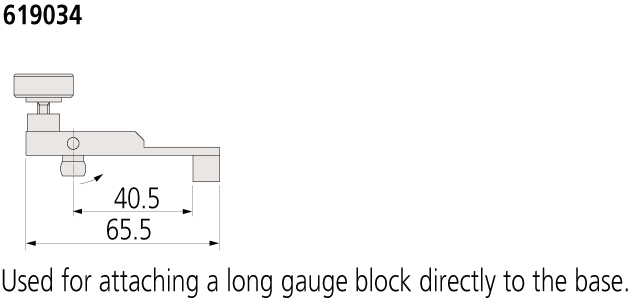

Connector D

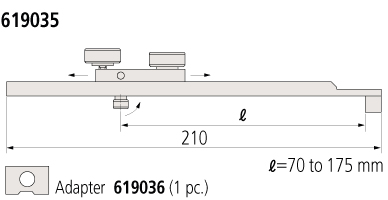

Connector E
Used for attaching a long gauge block to the base over a stack of regular gauge blocks wrung between the base and long gauge block. The length is highly adjustable to accommodate the variable length of the stack.

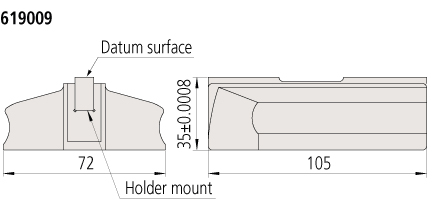

Base
Flatness of the datum surface 0.5 μm
Parallelism 0.8 μm
Flatness of the bottom surface 1 μm

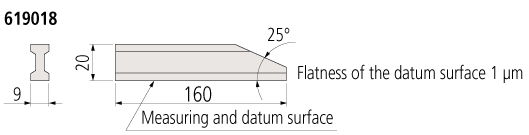

Plain jaw (B-type)

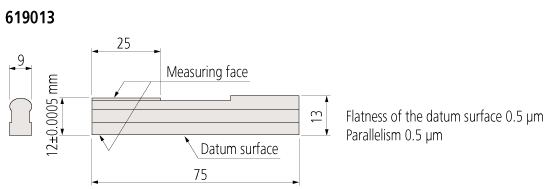

Half-round jaw

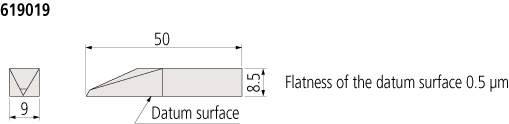

Scriber point
Example of use of accessories with long gauge blocks
The table below shows the appropriate combination of long rectangular gauge blocks and accessories for making inside and
outside measurements in the approximate range 300 mm to 1000 mm in 100 mm steps. The numbers in the table represent the
number of gauge blocks or accessories in use. Note that the ranges shown do not take into account the combined thickness of the
half-round jaws for inside measurement (24 mm) and the length of any regular gauge block stack used.
| Items | Code No. | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1000 mm | |||||||||
| Inner | Outer | Inner | Outer | Inner | Outer | Inner | Outer | Inner | Outer | Inner | Outer | Inner | Outer | Inner | Outer | |||
| Rectangular gauge block (nominal dimension) |
200 mm | 611682 | 1 | 1 | ||||||||||||||
| 300 mm | 611683 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||
| 400 mm | 611684 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 500 mm | 611685 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |||||||||
| Connector A | 619031 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| Connector B* | 619032 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| Half-round jaws 2 pcs./set | 619013 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| Adapter | 619036 | (2) | (2) | (2) | (2) | (2) | (2) | (2) | (2) | |||||||||
