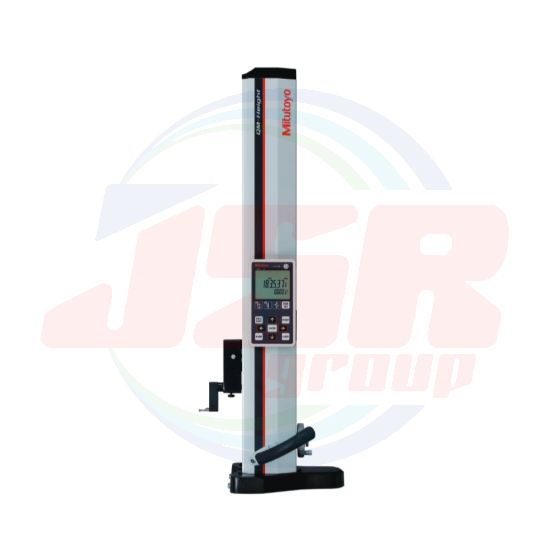

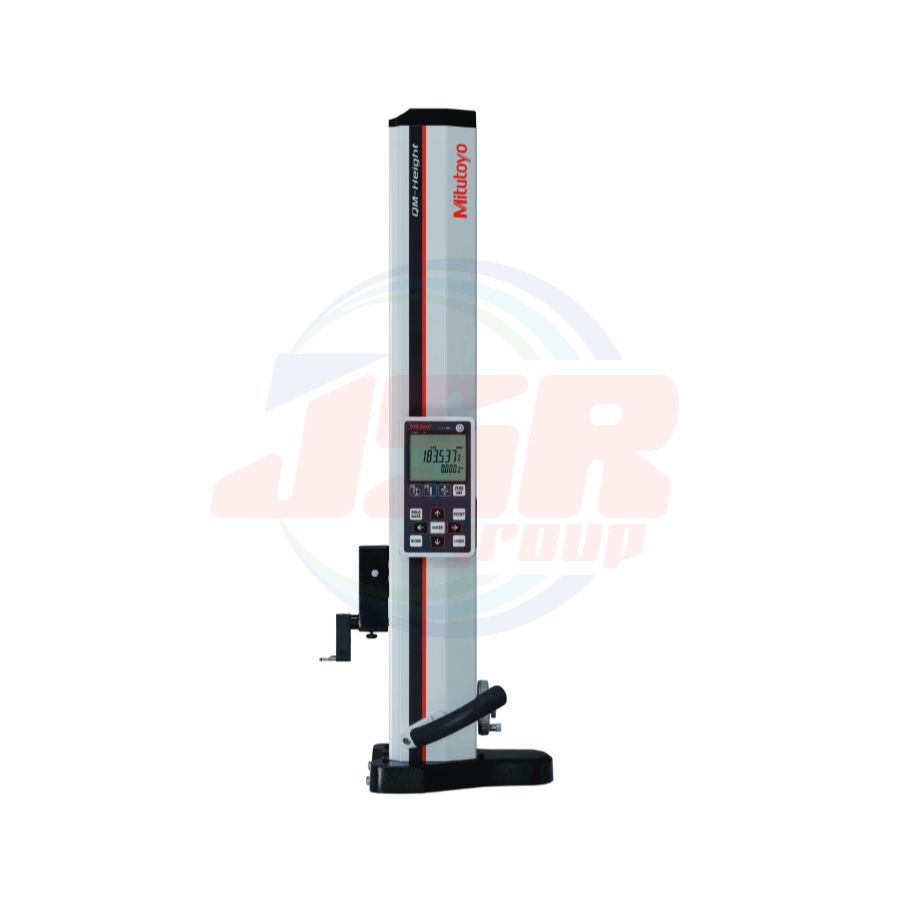

518-243 | QM-Height SERIES 518 — High-performance Height Gage | MITUTOYO
THB 0.00
THB 0.00
พร้อมส่ง
SKU
518-243
• This highly precise height gage is useful not only in height measurements but also in a wide range of applications such as measurement of steps, inside and outside diameters, and runouts.
• Easy-to-view, simple control panel enables most measurements to be made with a single keystroke. SPC (Digimatic) and RS-232C data output allow easy data management with a PC.
• Pneumatic floating models, which feature an air-suspension mechanism, can move smoothly on a surface plate (accuracy cannot be guaranteed for measurement while the unit is air-suspended).
• It features a long continuous operating time of approximately 1,200 hours with four AA alkaline batteries. (Four commercially available NiMH/HR6 rechargeable batteries can also be used.)
| Order No. | Metric | 518-240 | 518-242 | 518-244 | 518-246 |
| Inch/Metric | 518-241 | 518-243 | 518-245 | 518-247 | |
| Measuring range (stroke) | 0 to 465 mm (350 mm/14 in) |
0 to 715 mm (600 mm/ 24 in) |
0 to 465 mm (350 mm/14 in) |
0 to 715 mm (600 mm/ 24 in) |
|
| Resolution | Metric | 0.001 mm/ 0.005 mm (Selectable) | |||
| Inch /Metric | 0.001/ 0.005 mm 0.00005 /0.0001/0.0002 in (Selectable) |
||||
| Accuracy | Indication accuracy*1 | ± (2.4 + 2.1L/600) µm | |||
| Repeatability*1 | 2 σ ≤ 1.8 µm | ||||
| Perpendicularity*2 | 7 µm | 12 µm | 7 µm | 12 µm | |
| Guiding method | Roller bearing | ||||
| Drive method | Manual (wheel) | ||||
| Measurement principle | Electromagnetic induction absolute encoder | ||||
| Measuring force | 1.5±0.5 N | ||||
| Data output ports | Digimatic / USB*3 | ||||
| Air-floating system | Not included | Included (for positioning only)*4 | |||
| Power source | Alkaline AA / LR6 batteries×4 (standard accessories) /AC adapter (optional accessory)*5 / Supports NiMH (HR6) rechargeable batteries×4 |
||||
| Battery life guidelines*6 | Approx. 1,200 hours (without using the air-floating system) | ||||
| Approx. 90 hours (when using the air-floating system) | |||||
| Mass | 25 kg | 29 kg | 26 kg | 30 kg | |
| Dimensions (W×D×H) | Stroke 350 mm type: 280×273×784 mm Stroke 600 mm type: 280×273×1016 mm |
||||
| Operating temperature (recommended) | 0 to 40 ˚C (10 to 30 ˚C) | ||||
| Operating humidity | 20 to 80% RH (non-condensing) | ||||
| Storage temperature | -10 to 50 ˚C | ||||
| Storage humidity | 5 to 90% RH (non-condensing) | ||||
• Standard Accessories: 05HZA148 ø5 mm stepped probe, 12AAA715 Probe diameter calibration block, Alkaline batteries×4 (AA/LR6)
(For operational checks)
*1 Indication accuracy and repeatability represent the values obtained when the standard ø5 stepped probe is used. It should be
used in an environment as close to 20 °C as possible, with minimal temperature changes. In the case of diameter, minimum
(maximum) value, circle pitch or difference measurement, measuring errors may be larger than the accuracy ratings listed in
the table due to variations in measuring force during a scanning measurement, which differs from height measurement.
*2 Indicates the value obtained from the measurement of a straight surface placed perpendicular to the the base reference
surface using the Lever Head (519-521) and Mu-checker (519-551).
*3 Requires special communication driver. Consult your local Mitutoyo Sales Office for details.
These can be downloaded from the Mitutoyo web site. https://www.mitutoyo.co.jp/eng/contact/products/usb/index.html
*4 When using a model with the air-floating system, it is advisable to use a JIS 1 class, or higher, surface plate. Using on
surfaces with scratches or unevenness may prevent the system operating to the specified performance.
*5 The AC adapter cannot be used to recharge rechargeable batteries.
*6 Battery life depends on the operating conditions. In particular, it is more economical to use the optional AC adapter to
power the instrument if the application requires prolonged use of the air-floating system.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 518-243 |
| Measuring range (Stroke) | 0 to 715 mm (600 mm/ 24 in) |
| Resolution | 0.001/ 0.005 mm : 0.00005 /0.0001/0.0002 in (Selectable) |
| Accuracy : Indication accuracy | ± (2.4 + 2.1L/600) µm |
| Accuracy : Repeatability | 2 ≤ 1.8 µm |
| Perpendicularity | 12 µm |
| Guiding method | Roller bearing |
| Drive method | Manual (wheel) |
| Measurement principle | Electromagnetic induction absolute encoder |
| Measuring force (N) - (adjustable) | 1.5±0.5 N |
| Data output ports | Digimatic / USB |
| Air-floating system | Not included |
| Power source | Alkaline AA / LR6 batteries×4 (standard accessories) /AC adapter (optional accessory) / Supports NiMH (HR6) rechargeable batteries×4 |
| Battery life guidelines | Approx. 1,200 hours (without using the air-floating system) Approx. 90 hours (when using the air-floating system) |
| Dimensions (W×D×H) | Stroke 600 mm type: 280×273×1016 mm |
| Operating temperature (recommended) | 0 to 40 ˚C (10 to 30 ˚C) |
| Operating humidity | 20 to 80% RH (non-condensing) |
| Storage temperature | -10 to 50 ˚C |
| Storage humidity | 5 to 90% RH (non-condensing) |
