519-109-10 | SERIES 519 — Transfer Stands | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 16,453.00
พร้อมส่ง
SKU
519-109-10
• Transfer Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.

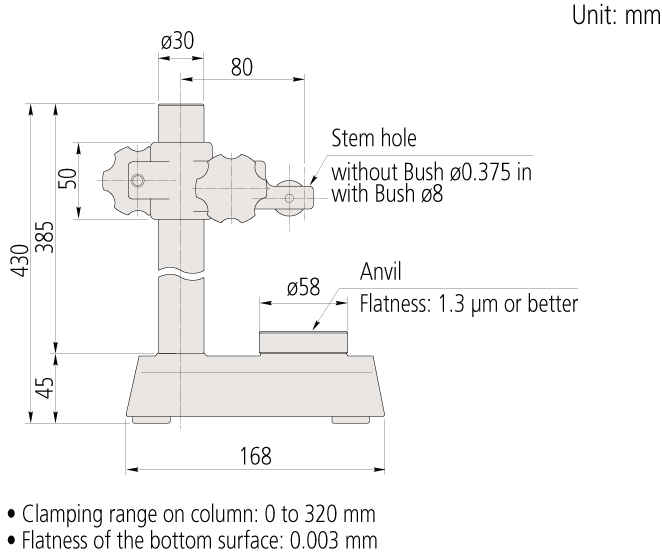

| Order No. | Anvil | Clamping range on column (mm | Micromotion adjustment range (mm) |
Stem hole (mm) |
| 515-109-10 | With a serrated anvil (ø58 mm) |
0 to 320 | 1 | ø0.375 in, ø8 with Bush |
Note 1: Perpendicularity of the stem hole to the anvil is better than 0.4 mm/100 mm.
Note 2: Take note that when mounting high-accuracy Linear Gages (with resolution of 0.1 μm or better) to these stands, accuracy may be affected depending on the perpendicularity of the mounting hole to the top surface of the anvil (cosine effect).
Note 3: Compact dial indicators (bezel ø31, ø36) are not suitable for use with these stands.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Magnetic Stands indicators | 519-109-10 |
| Anvil | With a serrated anvil (ø58 mm) |
| Clamping range on column | 0 to 320 mm |
| Micromotion adjustment range | 1 mm |
