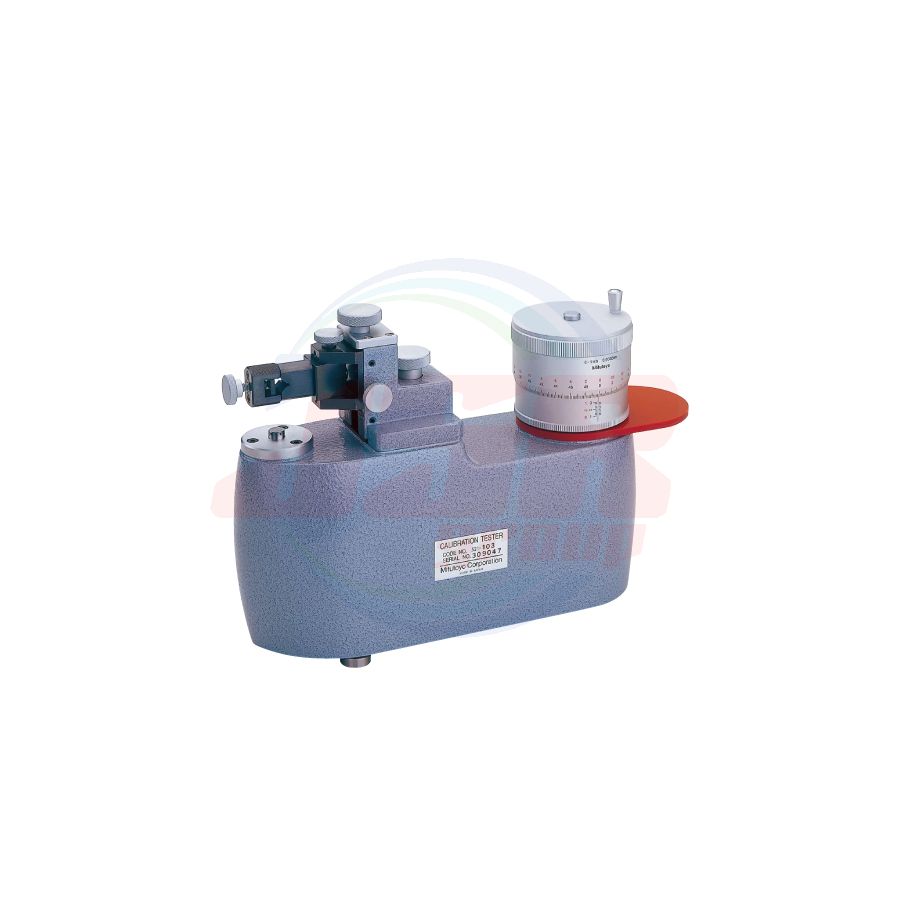

521-105 | SERIES 521 — Calibration Tester | MITUTOYO
THB 0.00
พร้อมส่ง
SKU
521-105
• Accuracy tester for 0.01 mm graduation dial indicators and dial test indicators. Can also be used to adjust the sensitivity of electronic micrometers.
• Universal bracket accepts any dial indicator, dial test indicator or electronic gage without any additional accessory. Clamping capacity: ø4 mm to ø10 mm.
| Order No. | Micrometer head | Accuracy (µm) | ||
| Graduation (mm) |
Range (mm) |
Feed accuracy (25 mm stroke) |
Hysteresis | |
| 521-103 | 0.0002 | 0 - 1 | ±0.2 | 0.2 |
| 521-105 | 0.0002 | 0 - 5 | ±0.8 | 0.8 |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Micrometer head - Graduation | 0.0002 mm |
| Micrometer head - Range | 0 - 5 mm |
| Accuracy - Hysteresis | 0.8 µm |
| Accuracy : Indication accuracy | ±0.8 µm |
