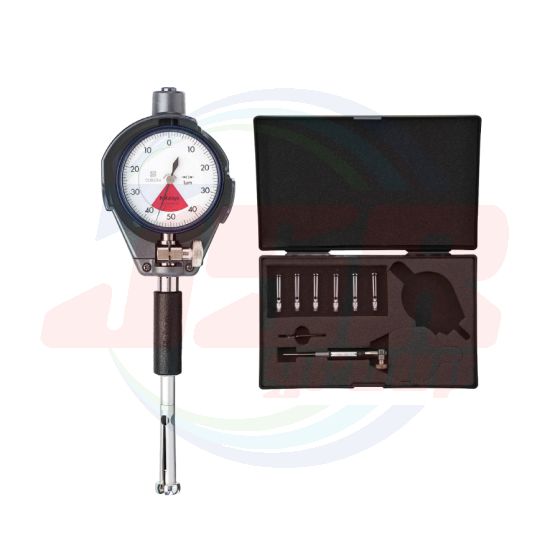

526-101 | Bore Gages SERIES 526 — for Extra Small Holes | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 4,279.44
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
526-101
QTY:
0

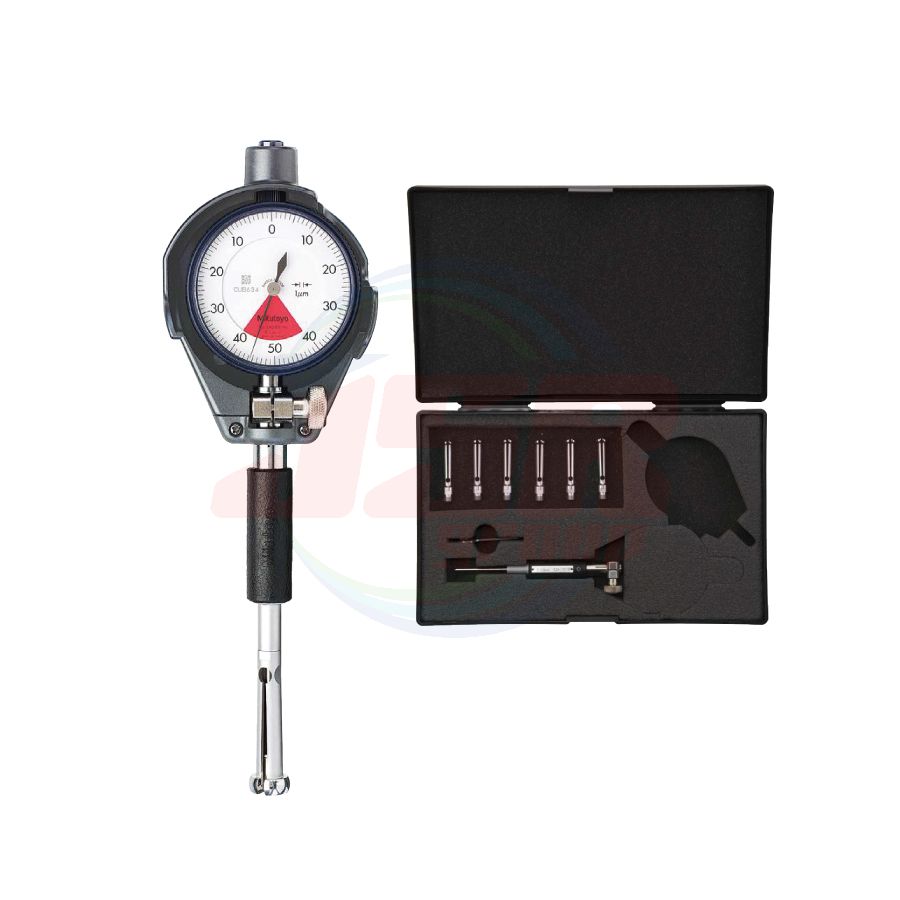

• This bore gage is designed to measure small holes of 7 to 18 mm diameter.
• The dial indicator is optional. Refer to page 08-52 for recommended indicators.
• Optional stand (215-120-10) is available for efficient measurement of multiple small holes.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Accuracy* (μm) | Repeatability* (μm) | Bore gage | Dial indicator | Dial protection cover | Setting ring |
| 526-101 | 7 - 10 | 4 | 2 | 526-101 | Not supplied | Not supplied | Not supplied |
| 526-102 | 10 - 18 | 6 | 526-102 | ||||
| 526-124-20 | 7 - 10 | 4 | 526-101 | 2109AB-10 (Graduation: 0.001 mm) |
21DZA000 | ||
| 526-125-20 | 10 - 18 | 6 | 526-102 | ||||
| 526-126-20 | 7 - 10 | 4 | 526-101 | 2046AB (Graduation: 0.01 mm) |
|||
| 526-127-20 | 10 - 18 | 6 | 526-102 |
* Accuracy of the bore gage alone.
Note: Setting rings are not supplied.
Please purchase them separately if necessary. For details of the setting rings.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order no. | 526-101 (CG-10A) |
| Accuracy | 4 μm |
| Repeatability | 2 μm |
| Bore gage | 526-101 |
| Dial indicator | Not supplied |
| Dial protection cover | Not supplied |
| Setting ring | Not supplied |
| Bore gage (Main body) |
Contact point | Spanner | |||||
| Marked No. | Code No. | Range | L10 | L11 | L12 | Code No. | |
| 526-101 526-103 |
1 | 102469 | 7.0 - 7.5 mm/0.28 - 0.30 in | 1.8 | 40 | 28.2 | 102148 |
| 2 | 102470 | 7.5 - 8.0 mm/0.30 - 0.32 in | |||||
| 3 | 102471 | 8.0 - 8.5 mm/0.32 - 0.34 in | |||||
| 4 | 102472 | 8.5 - 9.0 mm/0.34 - 0.36 in | |||||
| 5 | 102473 | 9.0 - 9.5 mm/0.36 - 0.38 in | |||||
| 6 | 102474 | 9.5 - 10.0 mm/0.38 - 0.40 in | |||||
| 526-102 526-104 |
1 | 102454 | 10 - 11 mm/0.40 - 0.44 in | 2.1 | 46 | 38 | 102148 |
| 2 | 102455 | 11 - 12 mm/0.44 - 0.48 in | 2.7 | ||||
| 3 | 102456 | 12 - 13 mm/0.48 - 0.52 in | |||||
| 4 | 102457 | 13 - 14 mm/0.52 - 0.56 in | |||||
| 5 | 102458 | 14 - 15 mm/0.56 - 0.60 in | |||||
| 6 | 102459 | 15 - 16 mm/0.60 - 0.64 in | |||||
| 7 | 102460 | 16 - 17 mm/0.64 - 0.68 in | |||||
| 8 | 102461 | 17 - 18 mm/0.68 - 0.72 in | |||||
Note: Contact point is consumable part. Please replace it with new one when degrading of accuracy, operation, or measuring range.
