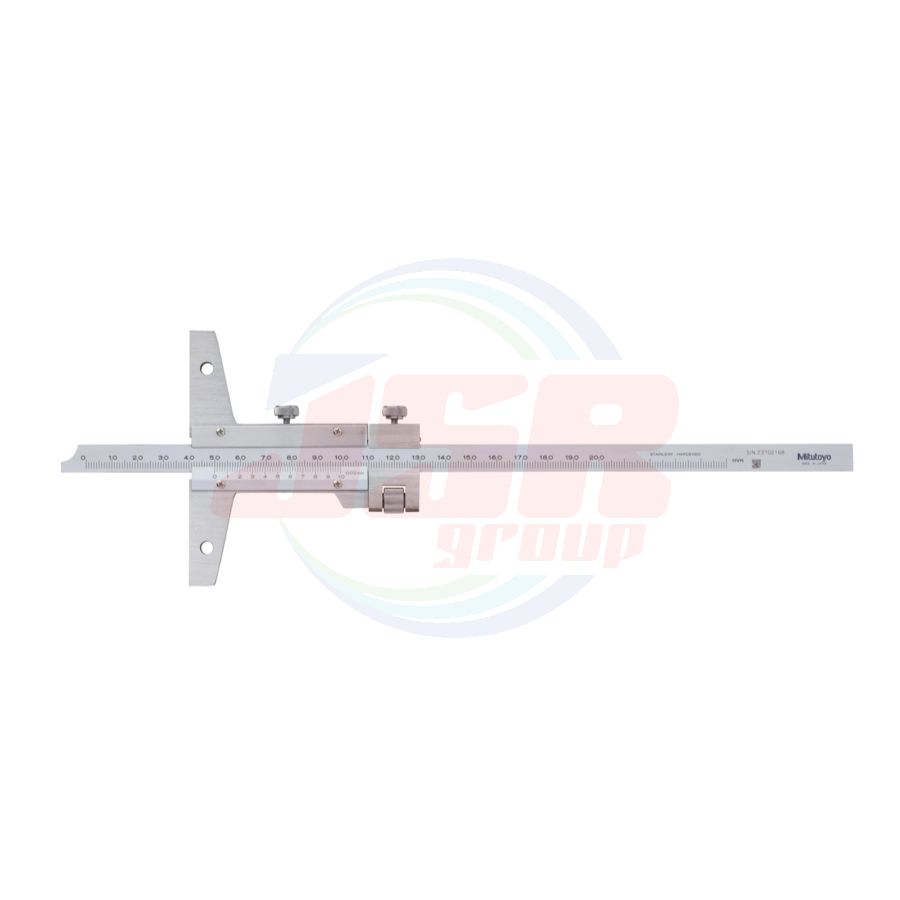

527-102 | Vernier Depth Gage SERIES 527 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,521.50
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
527-102
QTY:
6
• Standard Vernier gage for depth measurement.
• Optional longer extension bases are available.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Minimum reading (mm) | Base (W×T) (mm) | Maximum permissible error E MPE (mm)* |
Remarks |
| 527-201 | 0 - 150 | 0.05 | 100 x 6.5 | ±0.05 | — |
| 527-202 | 0 - 200 | ||||
| 527-203 | 0 - 300 | ±0.08 | |||
| 527-204 | 0 - 600 | 250 x 10 | ±0.10 | ||
| 527-205 | 0 - 1000 | ±0.15 |
Metric
| Order No. | Range (mm) | Minimum reading (mm) | Base (W×T) (mm) | Maximum permissible error E MPE (mm)* |
Remarks |
| 527-101 | 0 - 150 | 0.02 | 100 x 6.5 | ±0.03 | with fine adjsutment |
| 527-102 | 0 - 200 | ||||
| 527-103 | 0 - 300 | ±0.04 | |||
| 527-104 | 0 - 600 | 250 x 10 | ±0.05 | ||
| 527-105 | 0 - 1000 | ±0.07 |
Metric
| Order No. | Range (mm) | Minimum reading (mm) | Base (W×T) (mm) | Maximum permissible error E MPE (mm)* |
Remarks |
| 527-121 | 0 - 150 | 0.02 | 100 x 6.5 | ±0.03 | — |
| 527-122 | 0 - 200 | ||||
| 527-123 | 0 - 300 |
* Maximum permissible error, E MPE, is the term defined by ISO 13385-2:2011.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 527-102 (VD20) |
| Range | 0 - 200 mm |
| Minimum reading | 0.02 mm |
| Base | (WxT) 100x6.5 mm |
| Maximum permissible error E MPE | ±0.03 mm |
| Remarks | with fine adjsutment |
