534-101 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO

ราคาพิเศษ THB 0.00 THB 0.00 ราคาปรกติ THB 12,305.00
พร้อมส่ง
SKU
534-101
534-101 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO
534-101 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO 534-101 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO 534-101 | Long Jaw Vernier Caliper SERIES 534 | MITUTOYO

These vernier calipers with long jaws come with or without fine adjustment and let you measure hard-to-reach features.
They offer you the following benefits:

  • Long jaws enable you to measure hard-to-reach workpiece features.
  • The top offset vernier scale allows you to directly read the inside dimensions without having to add the jaw blade width.
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO

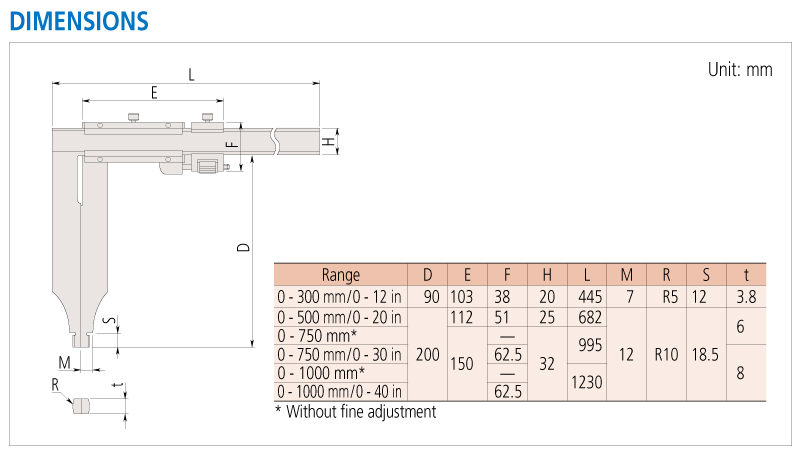

Range 0 - 12 in / 0 - 300 mm
Maximum permissible error E MPE ±0.07 mm/ ±0.5/128 in
Maximum permissible error S MPE ±0.07 mm/ ±0.5/128 in
Remarks +10 mm/0.394 in to reading in inside measurement without fine adjustment
Note *1 ( ): Minimum dimension in ID measurement *2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
