536-121

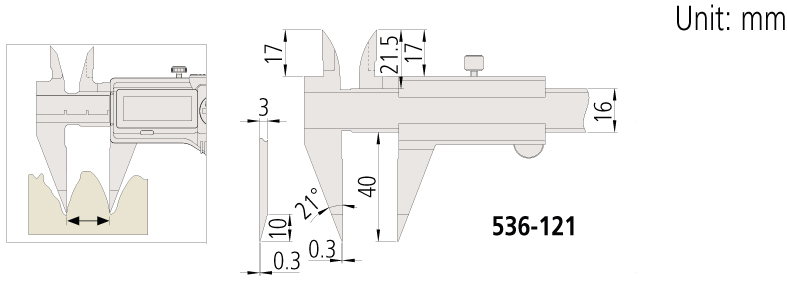

• Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 536-121 | 0 - 150 | 0.05 | ±0.02 | ±0.04 |
• With depth bar
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Inch/Metric |
| Order No. | 536-121 (NT12-15) |
| Range | 0 - 150 mm |
| Graduation | 0.05 mm |
| Maximum permissible error E MPE | ±0.05 mm |
| Maximum permissible error S MPE | ±0.07 mm |
