536-145 | Inside Caliper SERIES 536 — Inside groove type | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 9,472.71
พร้อมส่ง
SKU
536-145
• Specially designed for inside measurement. Select the right model for your workpiece shape.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*³ | Remarks | |
| E MPE | S MPE | ||||
| 536-142 | 10 - 200 | 0.01 | - | ±0.12 | Knife-edge type, Measurable min. |
| 536-145 | 10.1 - 150 | ±0.05 | Inside groove type, Measurable min. | ||
| 536-146 | 20.1 - 150 | Point jaw type, Measurable min. | |||
| 536-147 | 30.1 - 300 | ±0.08 | Point jaw type, Measurable min. | ||
| 536-148 | 70.1 - 450 | ±0.10 | Point jaw type, Measurable min. | ||
| 536-149 | 70.1 - 600 | ±0.12 | Point jaw type, Measurable min. | ||
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 536-145 (NT14G-15) |
| Range | 10.1 - 150 mm |
| Graduation | 0.05 mm |
| Maximum permissible error S MPE | ±0.05 mm |
| Remarks | Inside groove type, Measurable min. |

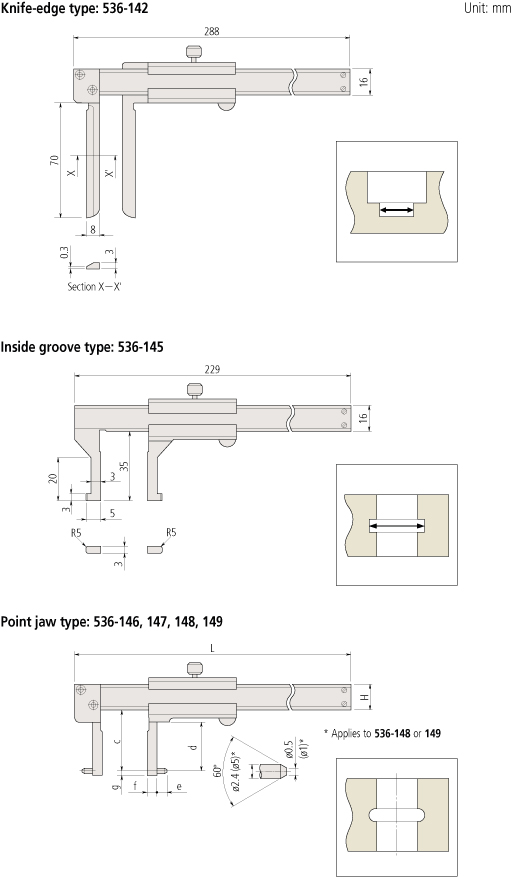

| Range (mm) | c | d | e | f | g | H | L |
| 150 | 38 | 31 | 5 | 5 | 2 | 16 | 229 |
| 300 | 98 | 89 | 10 | 20 | 403 | ||
| 450 | 145 | 136 | 10 | 25 | 5 | 25 | 610 |
| 600 | 750 |
Note: Models with a measuring range of more than 300 mm have slightly different appearance. For details, contact our Customer Support Center.
