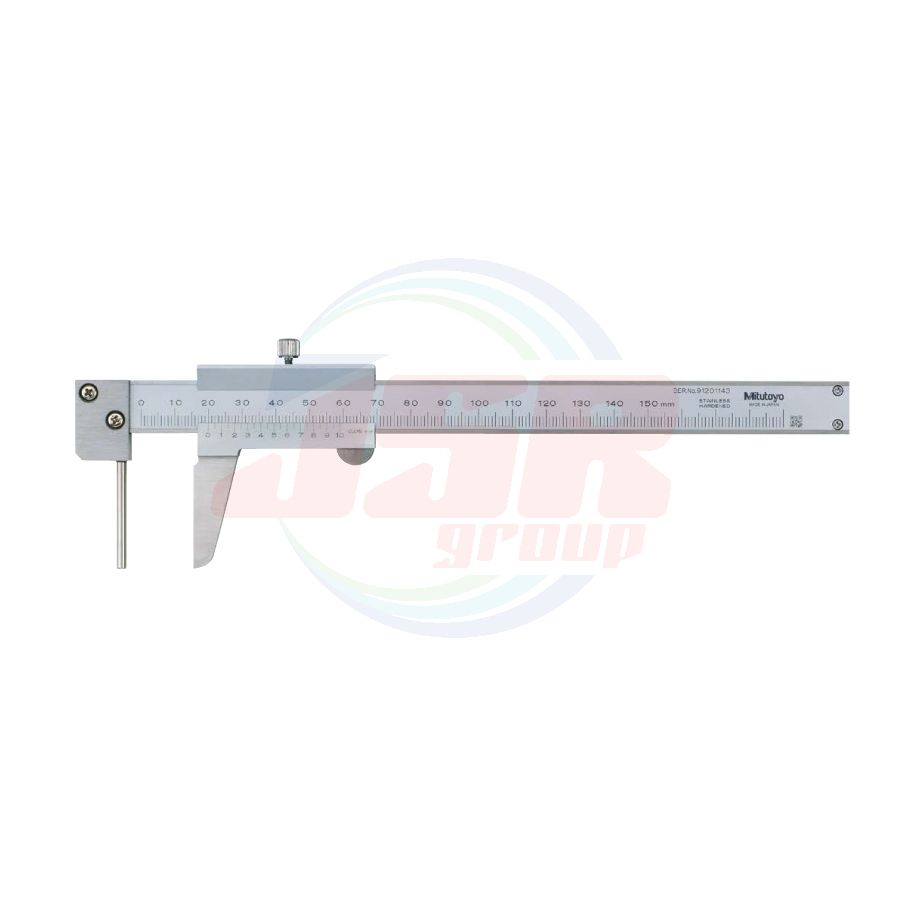

536-161 | Tube Thickness Caliper SERIES 536 — Vernier Types | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 7,224.64
พร้อมส่ง
SKU
536-161
• The beam-mounted jaw is a round bar that facilitates measurements of tube wall thickness.
• Data output function allows integration into statistical process control and measurement systems.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm) | |
| E MPE | S MPE | |||
| 536-161 | 0 - 150 | 0.05 | ±0.05 | - |
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 536-161 (NT16-15) |
| Range | 0 - 150 mm |
| Graduation | 0.05 mm |
| Maximum permissible error E MPE | ±0.05 mm |
