536-172 | Hook Type Vernier Caliper SERIES 536 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 12,321.50
พร้อมส่ง
SKU
536-172

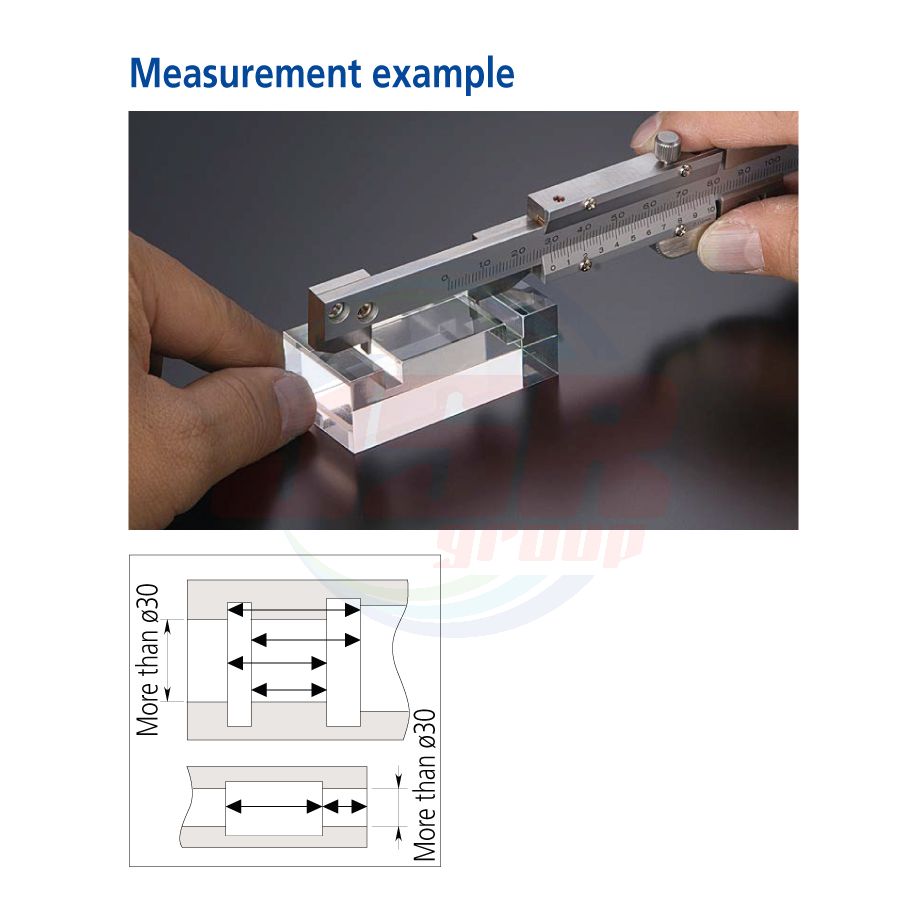

• Can measure width of grooves and lands Measurement example inside bores and recesses.
• 536-172 is equipped with a fineadjustment wheel to enable precise feed and adjustment.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm)*1 | Graduation (mm) | Maximum permissible error (mm)*2 | Remarks | |
| E MPE | S MPE | ||||
| 536-171 | 0 - 200 (10.1 - 200) | 0.02 | ±0.03 | ±0.03 | — |
| 536-172 | 0 - 200 (2.1 - 200) | with fine adjustment | |||
*1 ( ): Dimension in inside measurement
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 536-172 (NT17G-20) |
| Range | 0 - 200 (2.1 - 200) mm |
| Graduation | 0.02 mm |
| Maximum permissible error E MPE | ±0.03 mm |
| Maximum permissible error S MPE | ±0.03 mm |
| Remarks | with fine adjustment |

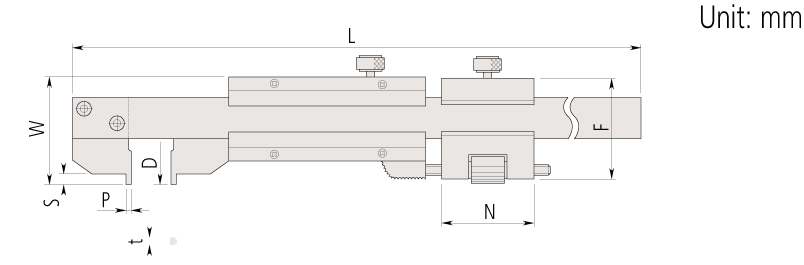

| Order No. | D | F | L | N | P | S | t | W |
| 536-171* | 12 | - | 320 | - | 5 | 4 | 3.5 | 28 |
| 536-172** | 28.5 | 20 | 1 |
* Inside measuring face is R5.
** Inside measuring face is flat.
