536-212 | Swivel Vernier Caliper SERIES 536 — Moving Jaw Type | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 8,952.69
พร้อมส่ง
SKU
536-212

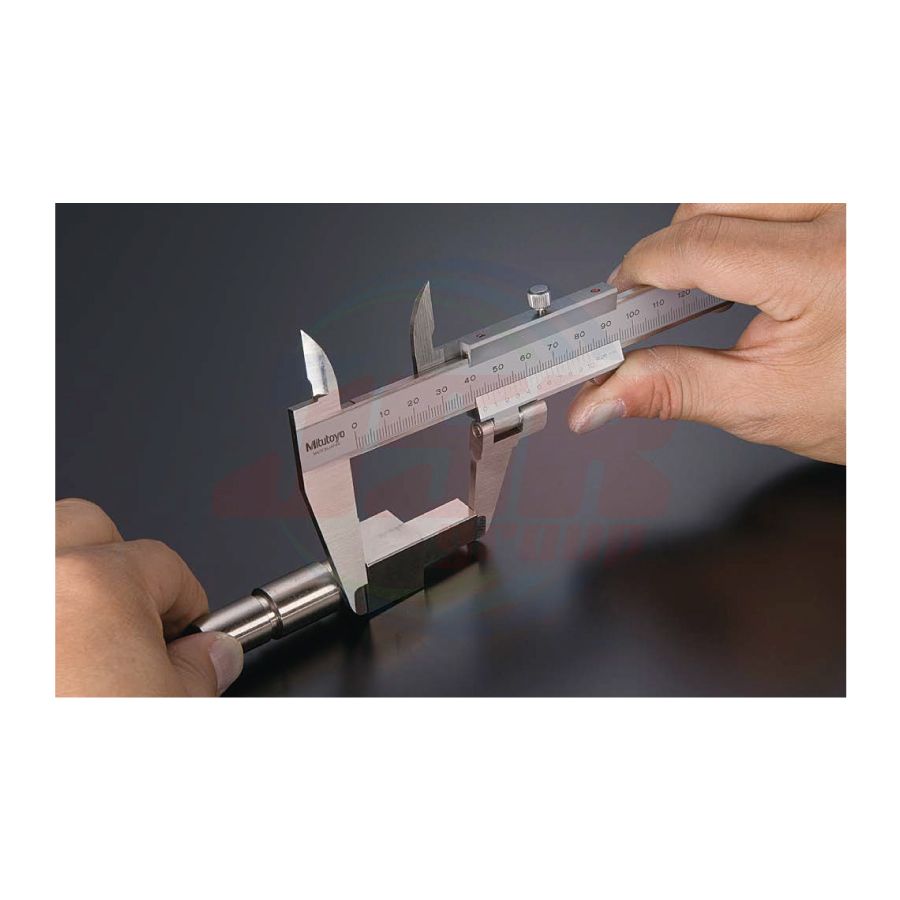

• The moving jaw can be rotated to measure Measurement example sectioned shafts.
• Can measure outside and inside dimensions, depth, and steps.
SPECIFICATIONS
Metric ___ Analog model
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error (mm)* | Remarks | |
| E MPE | S MPE | ||||
| 536-212 | 0 - 200 | 0.05 | ±0.05 | ±0.07 | with depth bar |
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Order No. | 536-212 (NT21-20) |
| Range | 0 - 200 mm |
| Graduation | 0.05 mm |
| Maximum permissible error E MPE | ±0.05 mm |
| Maximum permissible error S MPE | ±0.07 mm |
| Remarks | with depth bar |
