ABSOLUTE and High Environmental Resistance Type Scale Unit

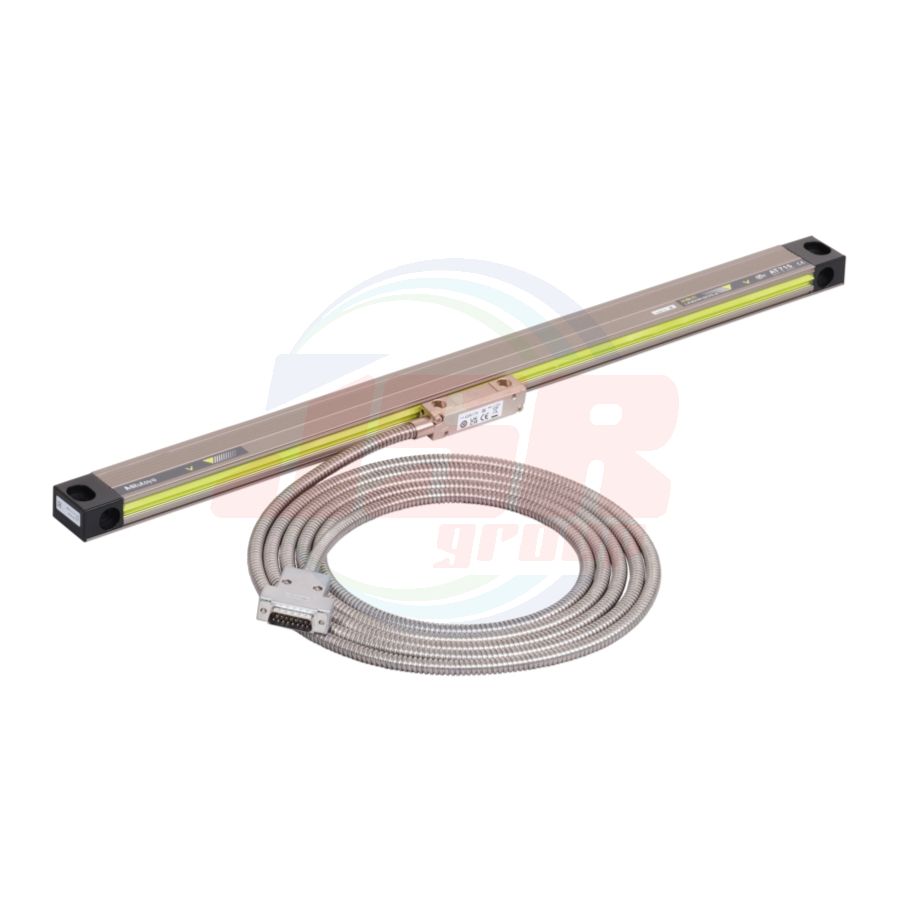

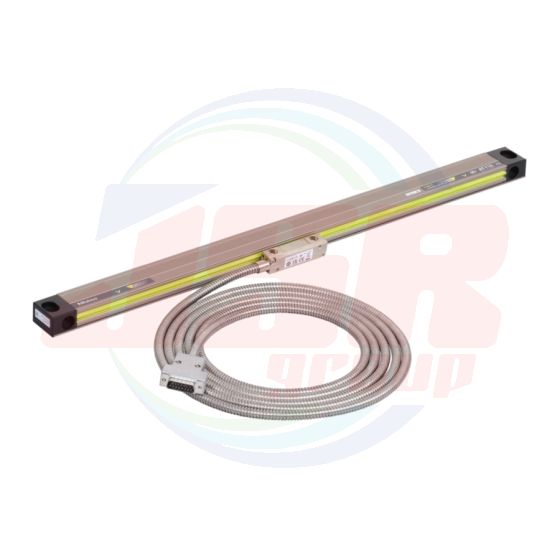

AT715 Absolute scale unit with excellent resistance to harsh environments
Reference dimensions for mounting : Effective range 100 – 3000 mm
| แบรนด์สินค้า | MITUTOYO | ||||||||
|---|---|---|---|---|---|---|---|---|---|

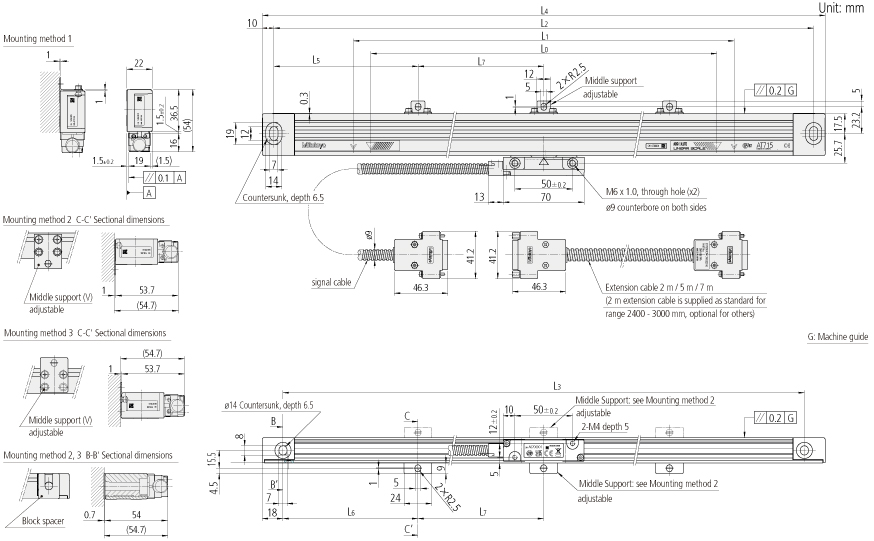

| Sectional dimensions |
Section size 22 × 54 mm |
||||||||
| Measurement method | Electromagnetic induction system | ||||||||
| Output wave form | ̶ | ||||||||
| Effective range | 100 - 3000 mm | ||||||||
| Accuracy (20 ºC) | ± 5 μ m (100 to 500 mm*) ± 7 μ m (600 to 1800 mm*) ± 10 μ m (2000 to 3000 mm*) *effective measurement length | ||||||||
| Maximum response speed | 50 m/min | ||||||||
| Scale reference point | ̶ | ||||||||
| Linear expansion coefficient | ̶ | ||||||||
| Power supply | 5 VDC ± 5 % | ||||||||
| Max, current consumption | 70 mA | ||||||||
| Operating / storage temperature | 0 to 45 ºC/-20 to 70 ºC | ||||||||
| Operating/Storage temperature (relative humidity) | 0 to 50 ºC/-20 to 70 ºC | ||||||||
| Head cable length | ̶ | ||||||||
| Dust/Water protection level | IP67 | ||||||||
| Sliding force | 5 N or less | ||||||||
| Signal cable | Standard accessory (refer to individual specifications for the length) | ||||||||
| Extension cable (optional) (Conduit type) |
|
| AT715 | Effective range L0 (mm) |
Maximum travel length L1 (mm) |
Mounting hole pitch L2 (mm) |
Mounting hole pitch L3 (mm) |
Overall length L4 (mm) |
Middle support positions L5 (mm) |
Middle support positions L6 (mm) |
Middle support positions L7 (mm) |
Signal cable length (m) | |
| Order No. | Model | |||||||||
