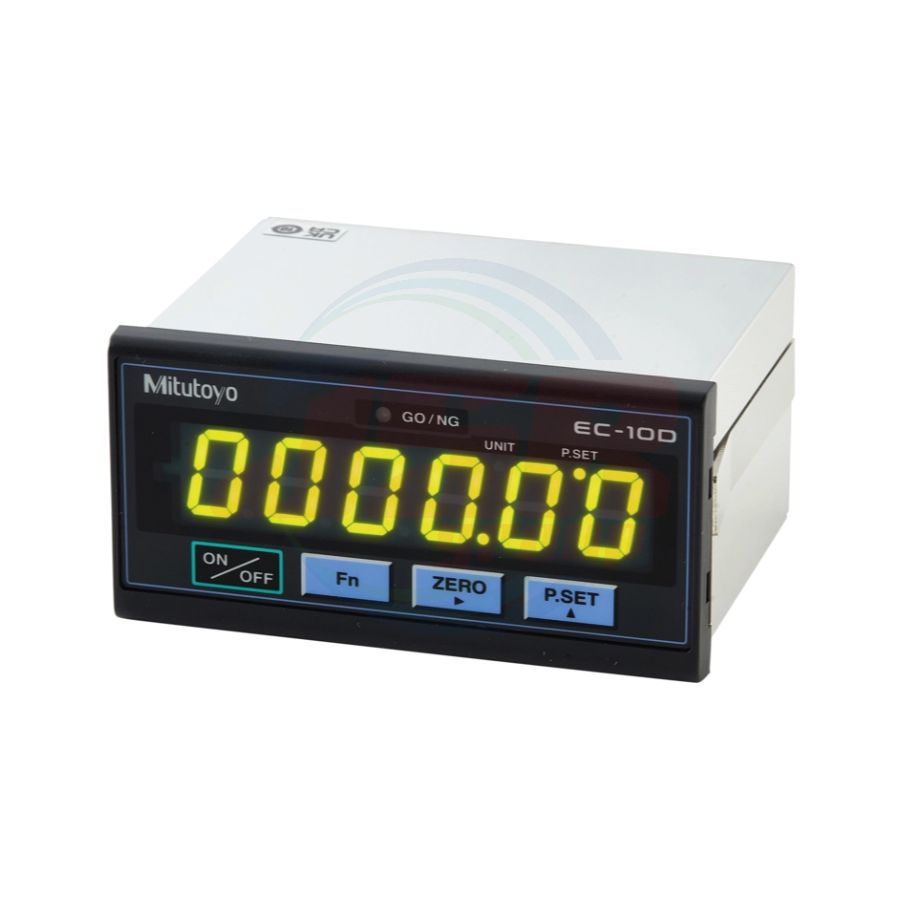

542-007 | EC Counter - Linear Gage Counter (Display Unit) | MITUTOYO
THB 0.00
THB 0.00
สินค้าหมด
SKU
542-007
• Employs the DIN size (96×48 mm) and mount-on-panel configuration, which greatly facilitates incorporation into a system.
• Can either produce tolerance judgment output or Digimatic output.
Functions
• Preset
• Tolerance judgment (3 steps)
Specifications
| Order No. | 542-007* | |
| Model | EC-101D | |
| Resolution | 0.01 mm (± 9999.99)/0.0005 in (± 99.9995 in)/0.001 in (± 999.999 in) 0.001 mm (± 9999.999)/0.00005 in (± 9.99995 in)/ 0.0001 in (± 99.999 in) [Automatic setting by gage] |
|
| Display | Sign plus 6 digits (Green LED) | |
| Tolerance judgment display | LED display (3 steps: Amber, Green, Red) | |
| External output (switching type) |
Tolerance judgment output | –NG, OK, +NG (open-collector) |
| Data output | Digimatic output | |
| Control input | External PRESET, external HOLD | |
| Power supply | Voltage | Supplied AC adapter, or 9 to 12 V DC |
| Consumption | 4.8 W (max. 400 mA) Ensure at least 1 A is available per unit. |
|
| Operating / storage temperature | Operation: 0 to 40 °C/Storage: –10 to 50 °C | |

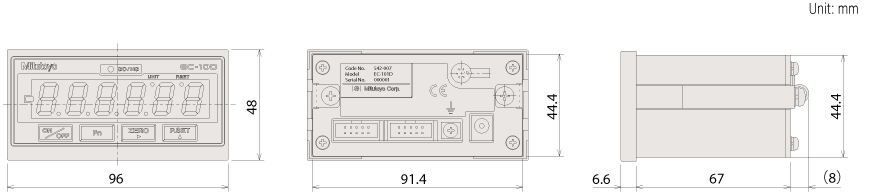

| External dimensions | 96 (W) ×48 (H) ×84.6 (D) mm | |

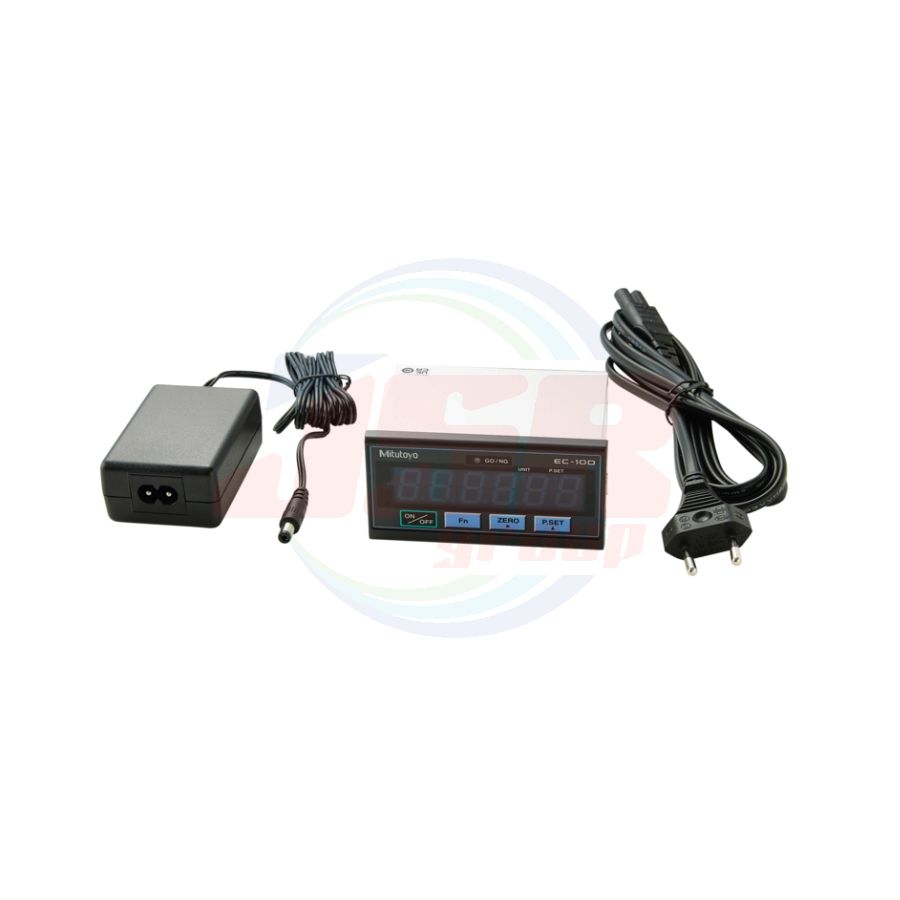

| AC adapter | AC adapter: 12BAR954 AC cable: 12BAK729 (Japan), 12BAK730 (U.S.), 12BAK731 (EU), 12BAK734 (UK), 12BAK732 (China), 12BAK733 (Korea) |
|
| Applicable head | LGS, ID | |
| Mass | 500 g | |
| Optional accessories | Connecting cable for Digimatic Mini-processor 936937 (1 m), 965014 (2 m) DC plug PJ-2 214938 I/O cable (2 m): 21HZA222 |
|
* To denote your AC power cable add the following suffixes to the order No.: A for UL/CSA, D for CEE, DC for CCC, E for BS, K for KC, C and No suffix are required for PSE.
| แบรนด์สินค้า | MITUTOYO | ||||
|---|---|---|---|---|---|
| Order No. | 542-007 (EC-101D) | ||||
| Resolution | 0.01 mm (± 9999.99)/0.0005 in (± 99.9995 in)/0.001 in (± 999.999 in) 0.001 mm (± 9999.999)/0.00005 in (± 9.99995 in)/ 0.0001 in (± 99.999 in) [Automatic setting by gage] | ||||
| Display | Sign plus 6 digits (Green LED) | ||||
| Tolerance judgment display | LED display (3 steps: Amber, Green, Red) | ||||
| External output (switching type) |
|
||||
| Control input | External PRESET, external HOLD | ||||
| Power supply |
|
||||
| Operating / storage temperature | Operation: 0 to 40 °C/Storage: –10 to 50 °C | ||||
| External dimensions | 96 (W) ×48 (H) ×84.6 (D) mm | ||||
| AC adapter | AC adapter: 12BAR954 AC cable: 12BAK729 (Japan), 12BAK730 (U.S.), 12BAK731 (EU), 12BAK734 (UK), 12BAK732 (China), 12BAK733 (Korea) | ||||
| Applicable head | LGS, ID | ||||
| Optional accessories | Connecting cable for Digimatic Mini-processor 936937 (1 m), 965014 (2 m) DC plug PJ-2 214938 I/O cable (2 m): 21HZA222 |
