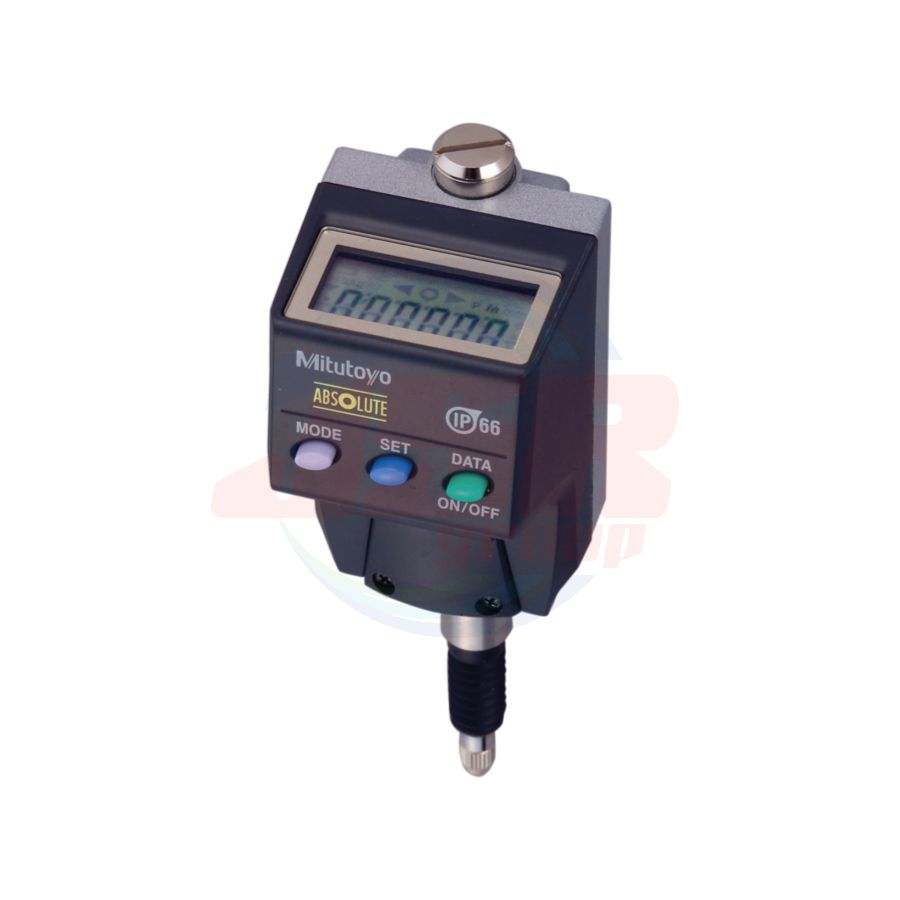

543-581 | ABSOLUTE Digimatic Indicator ID-N/B SERIES 543 — with Dust/Water Protection Conforming to IP66 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 7,673.00
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
543-581
QTY:
0
Applicable models: 543-57X
Applicable models: 543-58X
• Slim body design (body width: only 35 mm). Rated to IP66: Can be used confidently even in adverse environments.
• The ABS (ABSOLUTE) scale restores the last origin position* automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
• Back plunger design (ID-B) is widely used for dial indicators. A 5 mm-stroke plunger with a higher degree of accuracy has been implemented by adopting a direct reading scale for plunger displacement.
• Tolerance judgment can be performed by setting upper and lower tolerance limits.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
Functions
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Display readout reversal
• Resolution switching (For 0.001 mm or 0.00005 in resolution type)
• Data output
• Display value holding (when no external device is connected)
• Low battery voltage alarm display
• Error alarm display
SPECIFICATIONS
Metric ---- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
Remarks | |||
|
Partial measuring range |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | ||||
| 543-570 | 12.7 | 0.01 | 0.02 | 0.02 | 0.02 | 0.01 | 2.5 or less | Slim type |
| 543-580 | 5.08 | 2.0 or less | Back Plunger type | |||||
| 543-575 | 12.7 | 0.001/0.01 (selectable) |
0.003/0.01 | 0.003/0.01 | 0.002 | 0.002 | 2.5 or less | Slim type |
| 543-585 | 5.08 | 2.0 or less | Back Plunger type | |||||
Inch / Metric ---- ASME/ANSI /AGD Type
| Order No. | Range (in) |
Resolution | Maximum permissible error (MPE)*1 (in) | Maximum permissible limit (MPL) |
Remarks | ||
| Overall*2 | Hysteresis | Repeatability | Measuring force (N) | ||||
|
543-571 |
0.5 | 0.0005 in/ 0.01 mm |
±0.0010 | 0.0010 | 0.0005 | 2.5 or less | Slim type |
| 543-581 | 0.2 | 2.0 or less | Back Plunger type | ||||
| 543-576 | 0.5 | 0.00005/ 0.0005 in, 0.001/ 0.01 mm (selectable) |
±0.00010 | 0.00010 | 0.00010 | 2.5 or less | Slim type |
| 543-586 | 0.2 | 2.0 or less | Back Plunger type | ||||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
*1 These values apply to normal measurements at 20 °C.
*2 Overall magnification and linearity
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 543-581 (ID-B1005E) |
| Range | 0.2 in / 5.08 mm |
| Resolution | 0.0005 in/ 0.01 mm |
| Overall | ±0.0010 in |
| Hysteresis | 0.0010 in |
| Repeatability | 0.0005 in |
| Measuring force (N) | 2.0 or less |
| Remarks | Back Plunger type |
