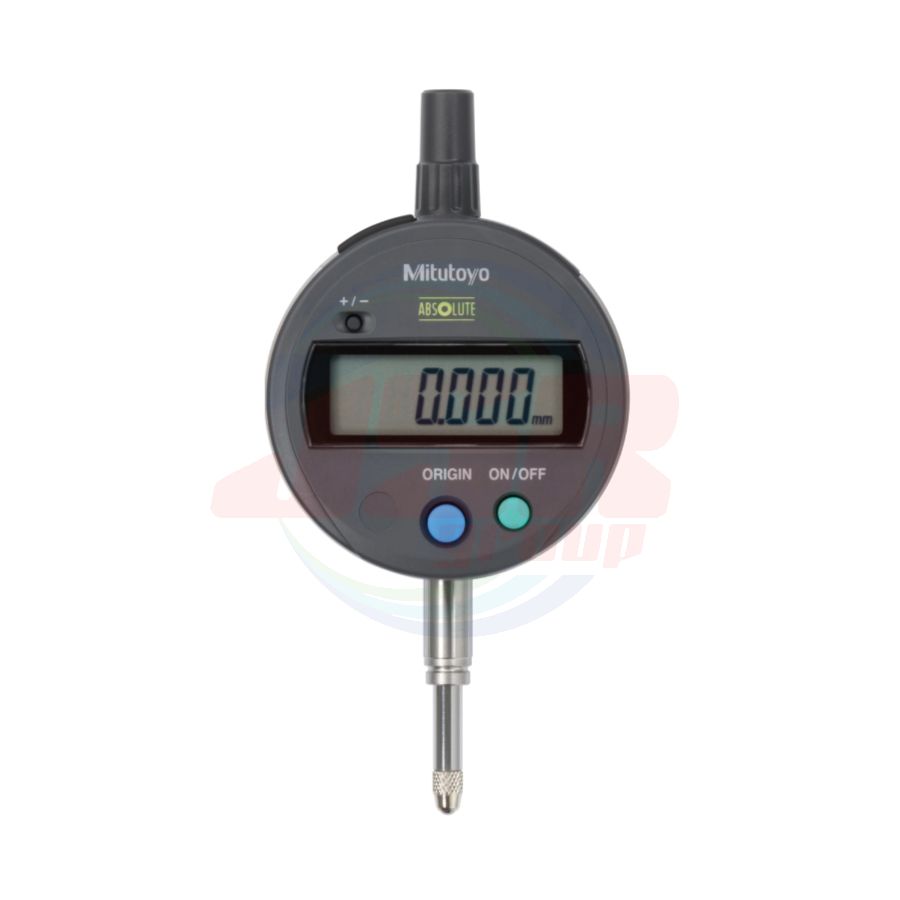

543-790-10 | ABSOLUTE Digimatic Indicator ID-SX2 SERIES 543 | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 7,213.94
สินค้าหมด
SKU
543-790-10
• A standard model of indicator that is reliable and easy to use with basic functions.
• This model consumes less power than other advanced models and can operate longer without frequent battery replacement.
• The ABS (ABSOLUTE) scale restores the last origin position* automatically when the indicator is turned on, and realizes high reliability by eliminating overspeed errors.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
Functions
• Origin set (Zero-setting)
• Measuring direction switching
• Data output
• Low battery voltage alarm display
• Error alarm display
SPECIFICATIONS
Metric ---- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) |
Maximum permissible limit (MPL) |
Back type | Battery life*2 | Mass (g) |
Dust/ |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | |||||||
| 543-790-10 | 12.7 | 0.001 | 0.003 | 0.003 | 0.002 | 0.002 | 1.5 or less | With lug | Approx. 18,000 hours (Continuous use) Approx. 5 years (Normal use) |
150 | IP42 |
| 543-790B-10 | Flat | 140 | |||||||||
| 543-794-10 | 2.5 or less | With lug | 155 | IP53 | |||||||
| 543-794B-10 | Flat | 155 | |||||||||
| 543-781-10 | 0.01 | 0.02 | 0.02 | 0.02 | 0.01 | 1.5 or less | With lug | Approx. 20,000 hours (Continuous use) Approx. 5 years (Normal use) |
150 | IP42 | |
| 543-781B-10 | Flat | 140 | |||||||||
Inch / Metric ---- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) |
Maximum permissible limit (MPL) |
Back type | Battery life*2 | Mass (g) |
Dust/ |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | |||||||
| 543-791-10 | 0.5 in/ 12.7 mm |
0.00005 in/ 0.001 mm |
0.003 | 0.003 | 0.002 | 0.002 | 1.5 or less | With lug | Approx. 18,000 hours (Continuous use) Approx. 5 years (Normal use) |
150 | IP42 |
| 543-791B-10 | Flat | 140 | |||||||||
| 543-795-10 | 2.5 or less | With lug | 155 | IP53 | |||||||
| 543-795B-10 | Flat | 155 | |||||||||
| 543-782-10 | 0.0005 in/ 0.01 mm |
0.02 | 0.02 | 0.02 | 0.01 | 1.5 or less | With lug | Approx. 20,000 hours (Continuous use) Approx. 5 years (Normal use) |
150 | IP42 | |
| 543-782B-10 | Flat | 140 | |||||||||
Inch / Metric ---- ASME/ANSI /AGD Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (in) |
Maximum permissible limit (MPL) |
Back type | Battery life*2 | Mass (g) |
Dust/ |
||
| Overall*4 | Hysteresis | Repeatability | Measuring force (N) | |||||||
| 543-792-10 | 0.5 in/ 12.7 mm |
0.00005 in/ 0.001 mm |
±0.00010 | 0.00010 | 0.00010 | 1.5 or less | With lug | Approx. 18,000 hours (Continuous use) Approx. 5 years (Normal use) |
165 | IP42 |
| 543-792B10 | Flat | 140 | ||||||||
| 543-793-10 | 0.0001 in/ 0.001 mm |
With lug | 165 | |||||||
| 543-793B-10 | Flat | 140 | ||||||||
| 543-796-10 | 0.00005 in/ 0.001 mm |
2.5 or less | With lug | 155 | IP53 | |||||
| 543-796B-10 | Flat | 155 | ||||||||
| 543-783-10 | 0.0005 in/ 0.01 mm |
±0.0010 | 0.0010 | 0.0005 | 1.5 or less | With lug | Approx. 20,000 hours (Continuous use) Approx. 5 years (Normal use) |
165 | IP42 | |
| 543-783B-10 | Flat | 140 | ||||||||
• Display: 6-digit display, sign
• Usable orientation: All
• Position detection method: ABSOLUTE electrostatic linear encoder
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Response speed: Unlimited (except for scanning measurement)
*1 These values apply to normal measurements at 20 °C.
*2 The battery life varies, depending on the number of times a Digimatic indicator is used as well as the way it is used.
The values listed above are approximations.
*3 This is only valid when the data socket cover is in place. Does not apply if the cover is removed, a lifting accessory is
attached, or a connection cable is attached.
*4 Overall magnification and linearity
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 543-790-10 (ID-S112X2) |
| range of indicator | 12.7 mm |
| Resolution | 0.001 mm |
| Partial measuring range P MPE | 0.003 mm |
| Total measuring range E MPE | 0.003 mm |
| Hysteresis H MPE | 0.002 mm |
| Repeatability R MPE | 0.002 mm |
| Measuring force (N) | 1.5 or less |
| Back type | With lug |
| Battery life | Approx. 18,000 hours (Continuous use) Approx. 5 years (Normal use) |
| Dust/Water protection level | IP42 |
