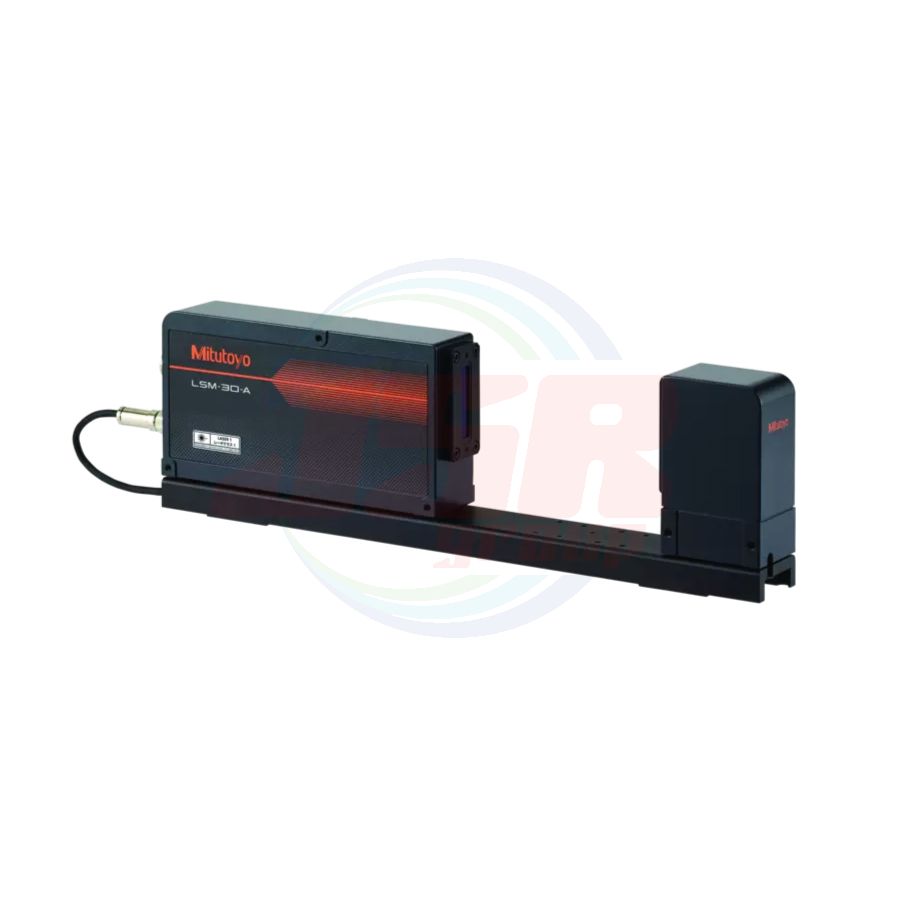

544-124 | High-accuracy Non-contact In-line Measuring System/Laser Scan Micrometers | MITUTOYO
THB 0.00
THB 0.00
พร้อมส่ง
SKU
544-124
These instruments feature extremely high-speed measurement capabilities thanks to an ultra-high-precision scan motor.
They can also meet high-precision needs such as linearity precision.
LSM-02-A
LSM sensor developed for in-line and automated equipment.
• Measuring range: 0.005 mm to 2 mm
• Guaranteed repeatability (2σ): ±0.015 μm (ø1 mm)
• Guaranteed linearity: ±0.3 μm
• Scanning rate: 3,200 scans/s
Specifications
| Order No. | 544-124 | |
| Model | LSM-30-A | |
| Measuring range | 0.3 to 30 mm | |
| Resolution | 0.01 μm | |
| Repeatability (2 σ)*² | Full range Middle range |
ø 30 mm: ± 0.09 μm*⁴ ø 10 mm: ± 0.06 μm*⁴ |
| Linearity*² | Whole range: ± 1.0 μm*⁵ Narrow range: ± (0.6+0.1 ⊿ D) μm*⁵*⁶ |
|
| Positional error*²*⁷ | Full range (10 × 30): ± 1.8 μm Middle range (5 × 20): ± 1.0 μm |
|

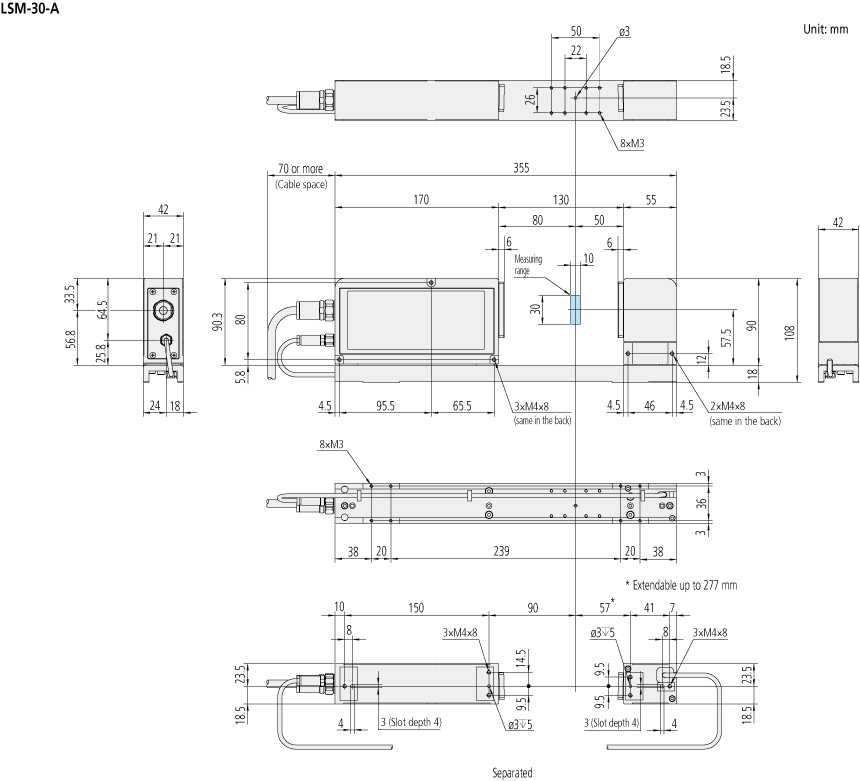

| Measuring region | 10 × 30 [optical axis depth] × [scanning width] mm | |
| Number of scans for averaging | 1 to 2048 scans | |
| Laser Class | Semiconductor laser: CLASS 1 (Max. output: 1.0 mW, Laser wavelength: 650 nm) | |
| Scanning rate | 3200 scans/s | |
| Laser scanning speed | 226 m/s | |
| Protection level | IP67 | |
| Distance between the emission unit and reception unit |
Standard: 130 mm, Max.: 350 mm | |
| Operating environment | Temperature: 0 °C to 40 °C, Humidity: 35%RH to 85%RH (non-condensing) Altitude: 2000 m or less |
|
| Storage temperature | Temperature: -10 °C to 50 °C, Humidity: 35%RH to 85%RH (non-condensing) | |
| CE Marking / UKCA Marking | EMC Directive: EN IEC 61326-1, Immunity test requirements: Clause 6.2 Table 2 Emission limit: Class A RoHS Directive: EN IEC 63000 |
|
| Standard accessory | Signal cable: 02AGQ190 CD (User's Manual): 02AGQ039 |
|
*1 When set to "Do not perform ultra-fine wire measurement" or "Edge specification" in the basic setup.
*2 Accuracy was inspected using a glass substrate workpiece with a vapor-deposited chromium pattern.
Environment: Temperature: 20 °C±1 °C, Humidity: 50%±10 °C
*3 Value of ±2σ when a ø2 mm/ø1 mm gage is measured for two minutes at measuring intervals of 0.32 seconds (σ: standard deviation)
*4 Value of ±2σ when a ø30 mm/ø10 mm gage is measured for two minutes at measuring intervals of 0.32 seconds (σ: standard deviation)
*5 Value obtained by measurement at the middle of the measuring range
*6 ⊿D=Difference in diameter between the master gage and workpiece. (Unit: mm)
*7 Error caused by moving a workpiece either in the optical axis direction or in the scanning direction
*8 When set to "Do not perform ultra-fine wire measurement" in the basic setup, one to eight times of averaging are available within the measuring range of 0.05 mm to 2 mm.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 544-124 |
| Model | LSM-30-A |
| Measuring Range | 0.3 to 30 mm |
| Resolution | 0.01 μm |
| Repeatability (2 σ) | ø 30 mm: ± 0.09 μm ø 10 mm: ± 0.06 μm |
| Linearity | Whole range: ± 1.0 μm / Narrow range: ± (0.6+0.1 ⊿ D) μm |
| Positional error | Full range (10 × 30): ± 1.8 μm Middle range (5 × 20): ± 1.0 μm |
| Measuring region | 10 × 30 [optical axis depth] × [scanning width] mm |
| Number of scans for averaging | 1 to 2048 scans |
| Laser class | Semiconductor laser: CLASS 1 (Max. output: 1.0 mW, Laser wavelength: 650 nm) |
| Scanning rate | 3200 scans/s |
| Laser scanning speed | 226 m/s |
| Protection Level | IP67 |
| Distance between the emission unit and reception unit | Standard: 130 mm, Max.: 350 mm |
| Operating environment | Temperature: 0 °C to 40 °C, Humidity: 35%RH to 85%RH (non-condensing) Altitude: 2000 m or less |
| Storage environment | Temperature: -10 °C to 50 °C, Humidity: 35%RH to 85%RH (non-condensing) |
| CE Marking / UKCA Marking | EMC Directive: EN IEC 61326-1, Immunity test requirements: Clause 6.2 Table 2 / Emission limit: Class A / RoHS Directive: EN IEC 63000 |
| Standard Accessories | Signal cable: 02AGQ190 CD (User's Manual): 02AGQ039 |
