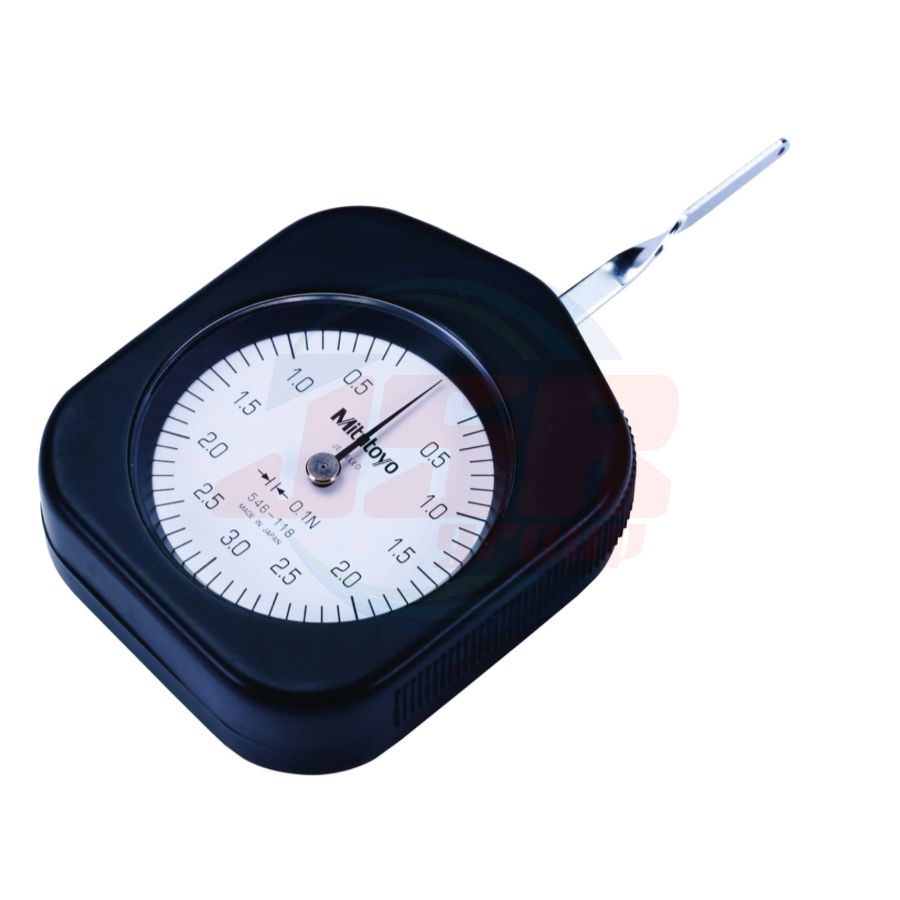

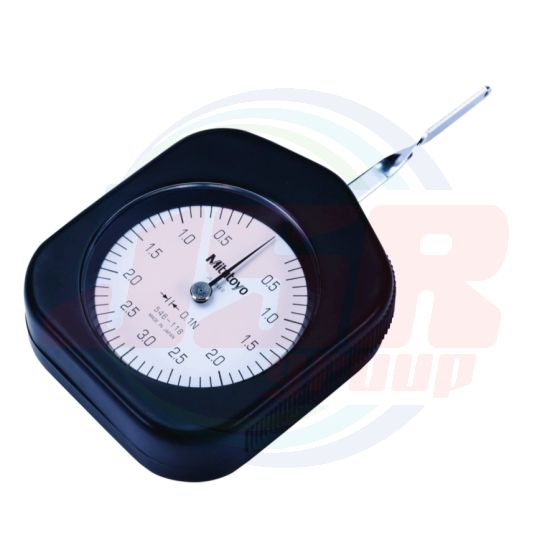

546-118 | Contact Force Gage SERIES 546 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,399.07
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
546-118
QTY:
1
• Contact Force Gages are widely used to determine the measuring force applied by an instrument to a workpiece, as well as contact forces of electrical relays, microswitches, valves and precision springs.
• Thanks to the miniature anti-friction bearing in the fulcrum, stable measurement is guaranteed.
• 2 types are available: Standard and peak hold.
SPECIFICATIONS
mN-scale models
Standard
| Order No. | Graduation (mN) |
Range (mN) |
Accuracy (graduation) |
| 546-112 | 2 | 6 - 50 | ±0.5 |
| 546-113 | 5 | 10 - 100 | |
| 546-114 | 10 | 30 - 300 |
Peak hold
| Order No. | Graduation (mN) |
Range (mN) |
Accuracy (graduation) |
| — | — | — | — |
| 546-133 | 5 | 10 - 100 | ±0.5 |
| 546-134 | 10 | 30 - 300 |
Note: Please note that these products are only available in their standard forms; they cannot be customized for special sizes or specifications.
N-scale models
Standard
| Order No. | Graduation (N) |
Range (N) |
Accuracy (graduation) |
| 546-115 | 0.02 | 0.06 - 0.5 | ±0.5 |
| 546-116 | 0.05 | 0.1 - 1 | |
| 546-117 | 0.05 | 0.15 - 1.5 | |
| 546-118 | 0.1 | 0.3 - 3 | |
| 546-119 | 0.2 | 0.6 - 5 |
Peak hold
| Order No. | Graduation (N) |
Range (N) |
Accuracy (graduation) |
| 546-135 | 0.02 | 0.06 - 0.5 | ±0.5 |
| 546-136 | 0.05 | 0.1 - 1 | |
| 546-137 | 0.05 | 0.15 - 1.5 | |
| 546-138 | 0.1 | 0.3 - 3 | |
| 546-139 | 0.2 | 0.6 - 5 |
Note: Please note that these products are only available in their standard forms; they cannot be customized for special sizes or specifications.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| scale models | N |
| Type | Standard |
| Contact Force Gage-546 | 546-118 (DTG-300N) |
| Graduation | 0.1 N |
| Range | 0.3 - 3 N |
| Accuracy (graduation) | ±0.5 |
